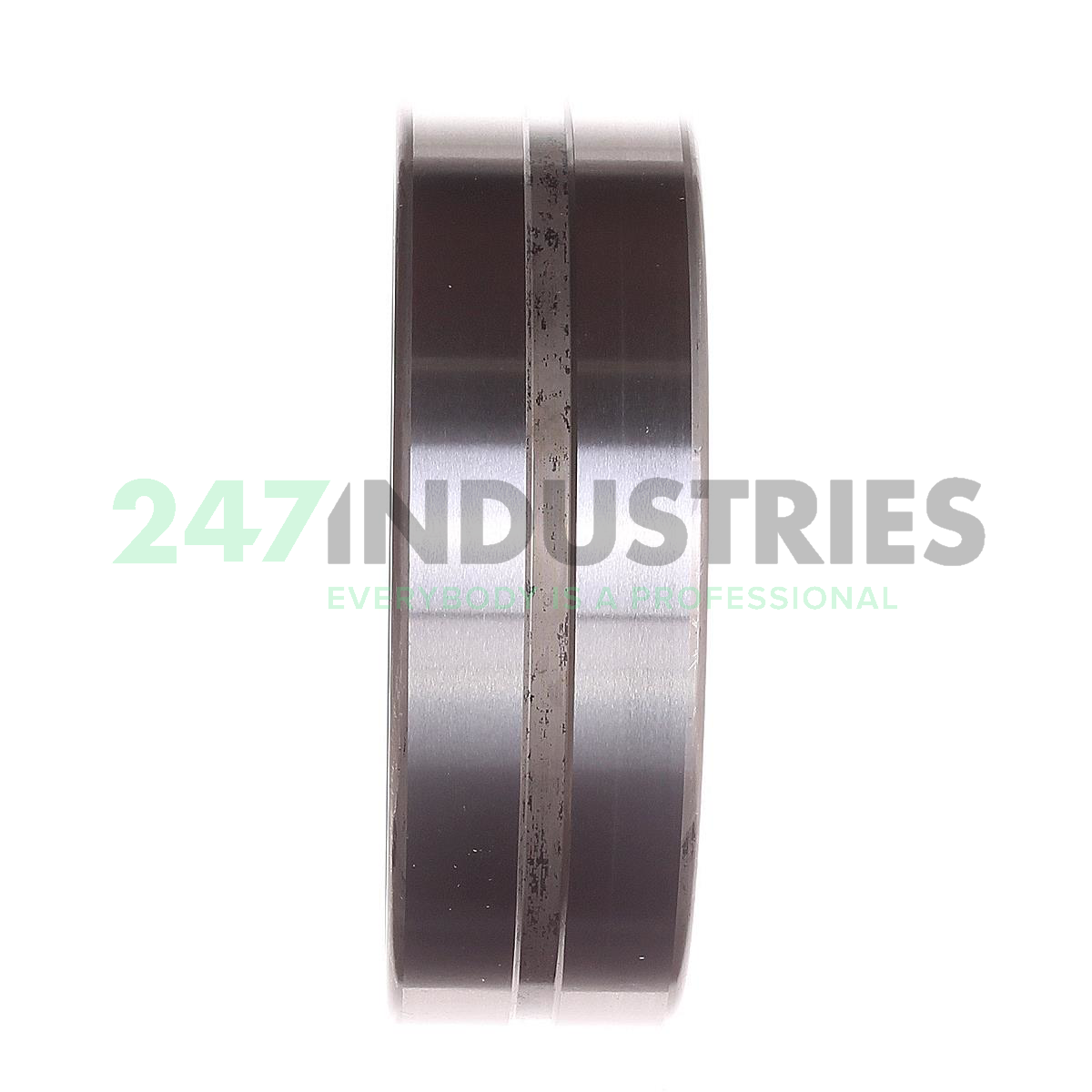

NK95/36-XL INA

All dimensions

1. Inner (d) MM 95
2. Outer (D) MM 115
3. Width (B) MM 36
4. Inner (d) Inch 3.7402
5. Outer (D) Inch 4.5276
6. Width (B) Inch 1.4173
7. Under roller diameter (F w) mm 95

Suffix description

1. XL X-Life

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number NK95/36-XL INA
4. Also known as 0507547260000
   NB9511536
   NK95/36
   RNA9511536
   TAF9511536

5. EAN 4012802642179
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.6474

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 223000
2. Radial Dynamic Load Rating Cr (N) 121000
3. Limiting speed (n G) 4850
4. Reference speed (n ϑr) 3150
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series

Downloads and links

1. Download datasheet Download datasheet
2. Link to Manufacturer Link to Manufacturer
3. X-life brochure X-life brochure
