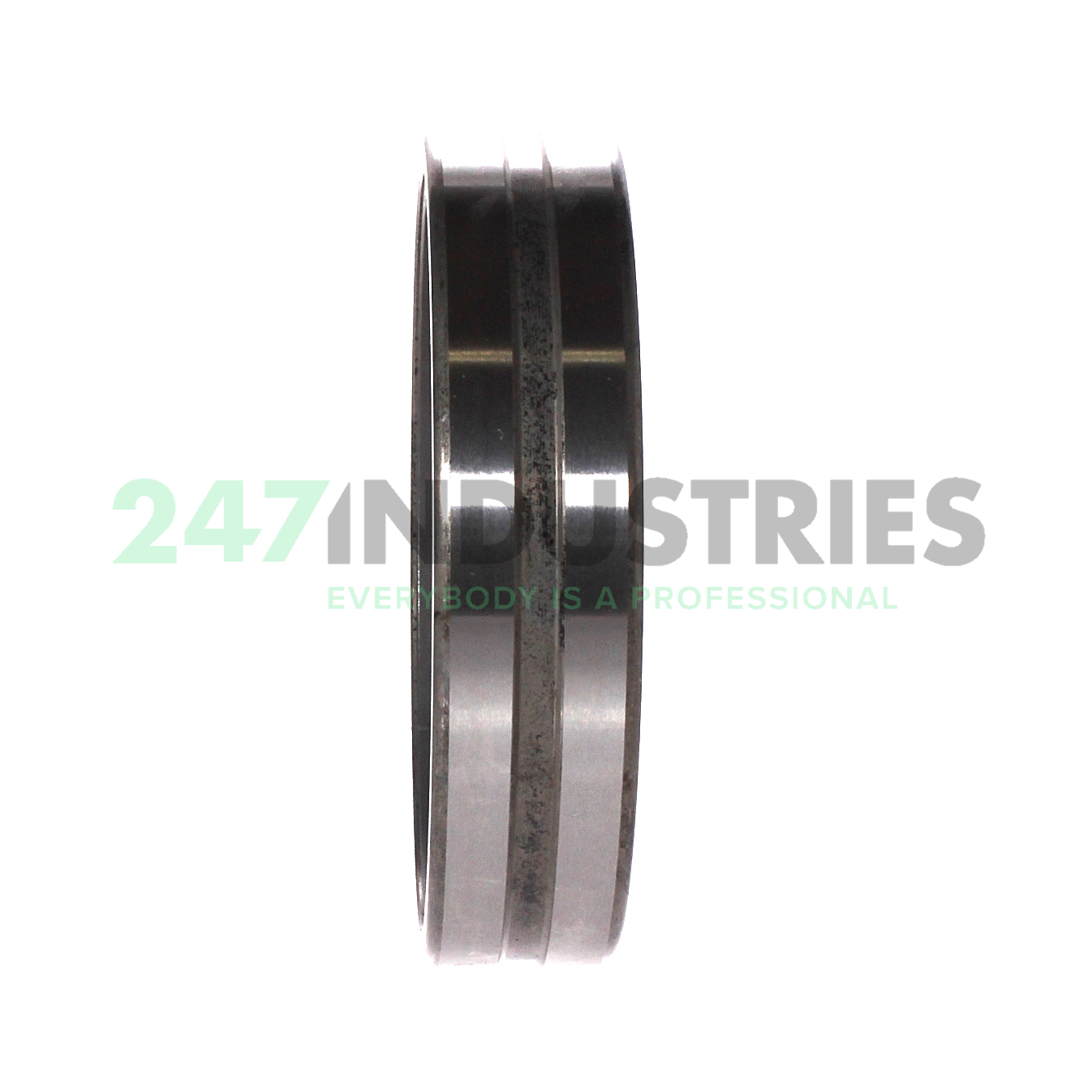

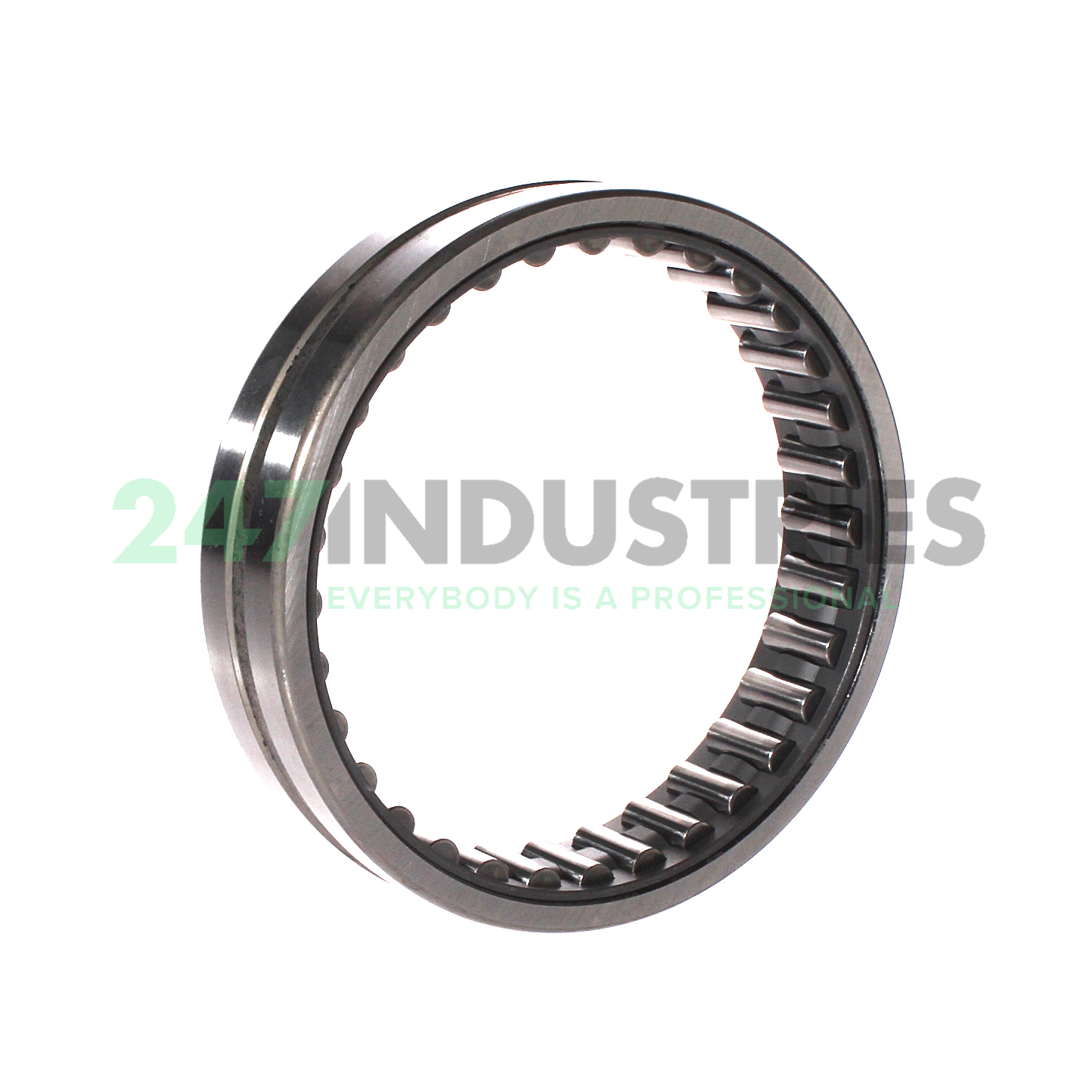

NK95/26-XL INA

All dimensions

1. Inner (d) MM 95
2. Outer (D) MM 115
3. Width (B) MM 26
4. Inner (d) Inch 3.7402
5. Outer (D) Inch 4.5276
6. Width (B) Inch 1.0236
7. Under roller diameter (F w) mm 95

Suffix description

1. XL X-Life

Technical details

1. Availability 96 pcs
2. Brand INA
3. Item number NK95/26-XL INA
4. Also known as 0507547180000
   NB9511526
   NK95/26
   RNA9511526
   TAF9511526

5. EAN 4012802844931
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.475

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 137000
2. Radial Dynamic Load Rating Cr (N) 83000
3. Limiting speed (n G) 4850
4. Reference speed (n ϑr) 3300
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series
