NK85/35-XL INA

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 105
3. Width (B) MM 35
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 4.1339
6. Width (B) Inch 1.378
7. Under roller diameter (F w) mm 85

Suffix description

1. XL X-Life

Technical details

1. Availability 8 pcs
2. Brand INA
3. Item number NK85/35-XL INA
4. Also known as 0507546700000
   NB8510535
   NK85/35
   RNA8510535
   TAF8510535

5. EAN 4012802701074

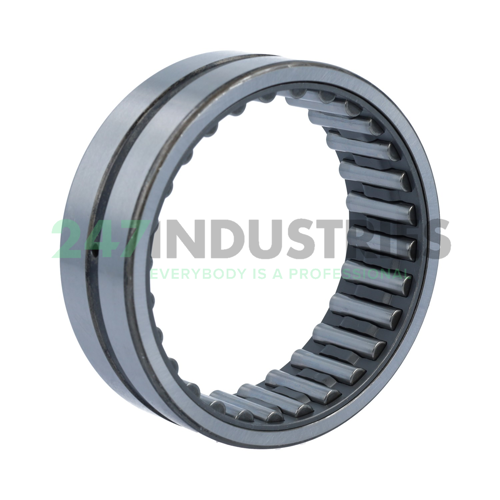

6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.5698

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 193000
2. Radial Dynamic Load Rating Cr (N) 111000
3. Limiting speed (n G) 5400
4. Reference speed (n ϑr) 3450
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series
