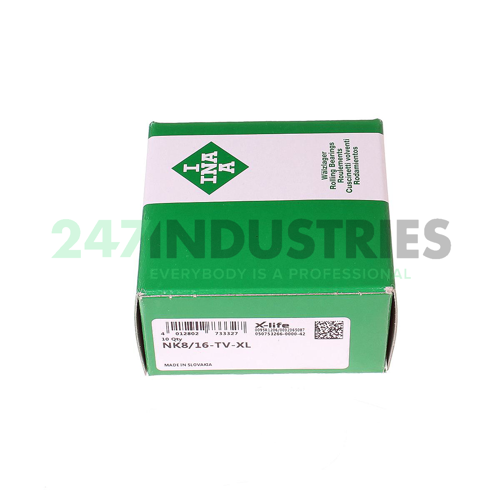

NK8/16-TV-XL INA

All dimensions

1. Inner (d) MM 8
2. Outer (D) MM 15
3. Width (B) MM 16
4. Inner (d) Inch 0.315
5. Outer (D) Inch 0.5906
6. Width (B) Inch 0.6299
7. Under roller diameter (F w) mm 8

Suffix description

1. TV Polyamide Cage
2. XL X-Life

Technical details

1. Availability 88 pcs
2. Brand INA
3. Item number NK8/16-TV-XL INA
4. Also known as 0507532660000
   NK8/16
   NK8/16TN
   NK8/16-TV
   SNK8/16
   TAF81516

5. EAN 4012802733327
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.0129

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 5800
2. Radial Dynamic Load Rating Cr (N) 5800
3. Limiting speed (n G) 32500
4. Reference speed (n ϑr) 36500
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
