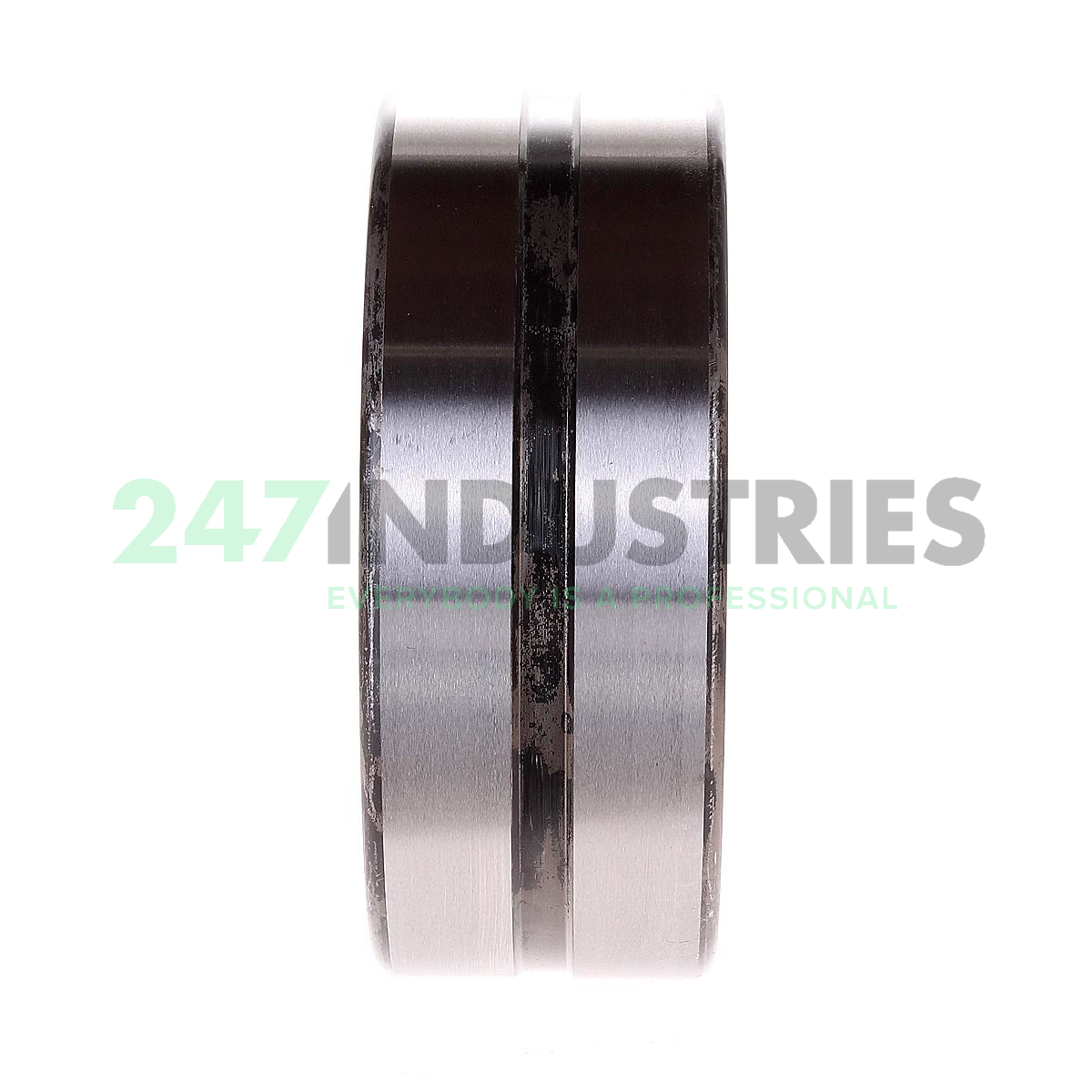

NK75/35-XL INA

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 92
3. Width (B) MM 35
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 3.622
6. Width (B) Inch 1.378
7. Under roller diameter (F w) mm 75

Suffix description

1. XL X-Life

Technical details

1. Availability 47 pcs
2. Brand INA
3. Item number NK75/35-XL INA
4. Also known as 0507546370000
   NB759235
   NK75/35
   RNA759235
   TAF759235

5. EAN 4012802701050
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.445

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 162000
2. Radial Dynamic Load Rating Cr (N) 87000
3. Limiting speed (n G) 6100
4. Reference speed (n ϑr) 3950
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series
