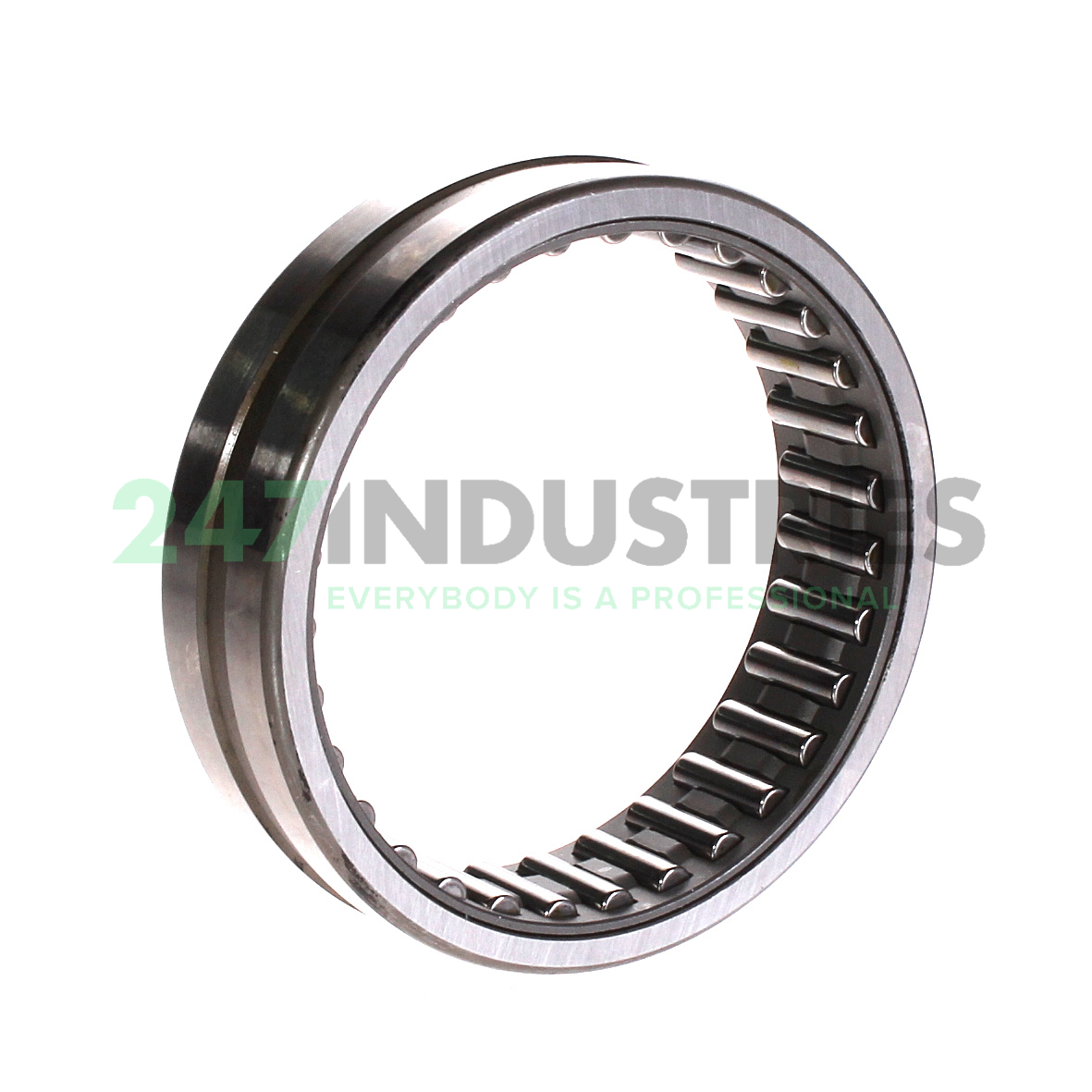

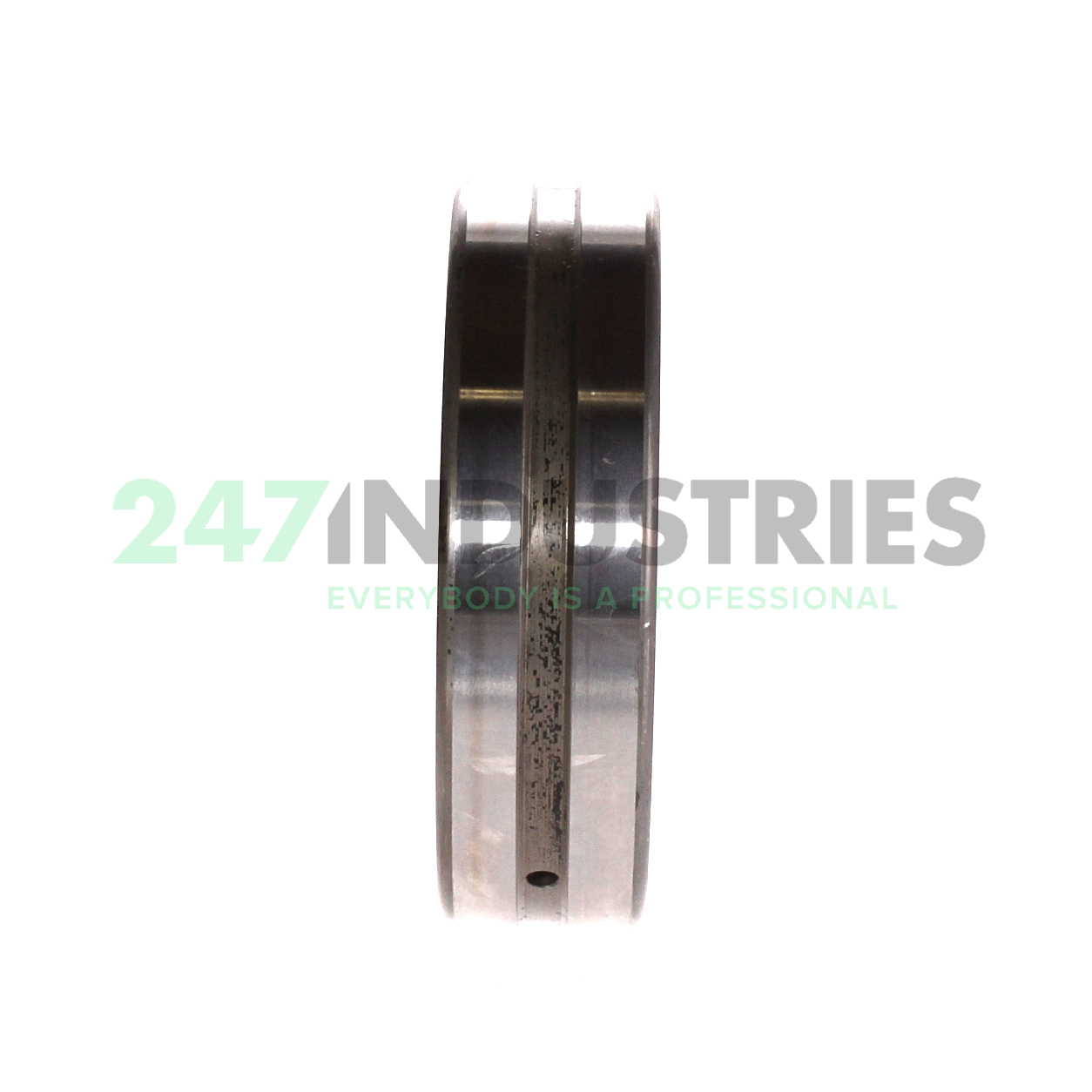

NK75/25-XL INA

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 92
3. Width (B) MM 25
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 3.622
6. Width (B) Inch 0.9843
7. Under roller diameter (F w) mm 75

Suffix description

1. XL X-Life

Technical details

1. Availability 44 pcs
2. Brand INA
3. Item number NK75/25-XL INA
4. Also known as 0507546290000
   NB759225
   NK75/25
   RNA759225
   TAF759225

5. EAN 4012802701043
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.315

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 104000
2. Radial Dynamic Load Rating Cr (N) 61000
3. Limiting speed (n G) 6100
4. Reference speed (n ϑr) 4050
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series
