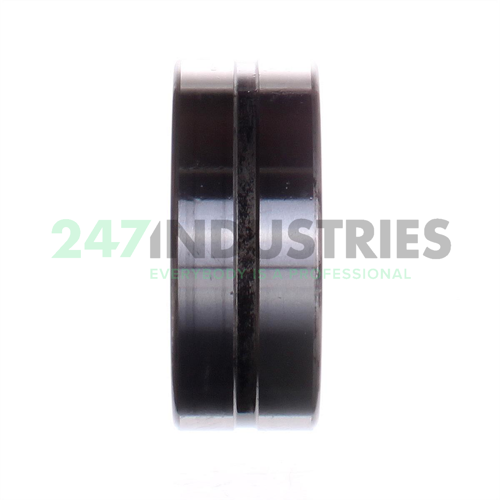

NK73/35-XL INA

All dimensions

1. Inner (d) MM 73,00
2. Outer (D) MM 90,00
3. Width (B) MM 35,00
4. Inner (d) Inch 2.8740
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.3780
7. Under roller diameter (F w) mm 73,00

Suffix description

1. XL X-Life

Technical details

1. Availability 38 pcs
2. Brand INA
3. Item number NK73/35-XL INA
4. Also known as 0507546100000
   NB739035
   NK73/35
   RNA739035
   TAF739035

5. EAN 4012802701036
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.428

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 156000
2. Radial Dynamic Load Rating Cr (N) 85000
3. Basic static load rating, radial (C 0r) "156000.0000"
4. Limiting speed (n G) "6300.0000"
5. Reference speed (n ϑr) "4050.0000"
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NK, light series
