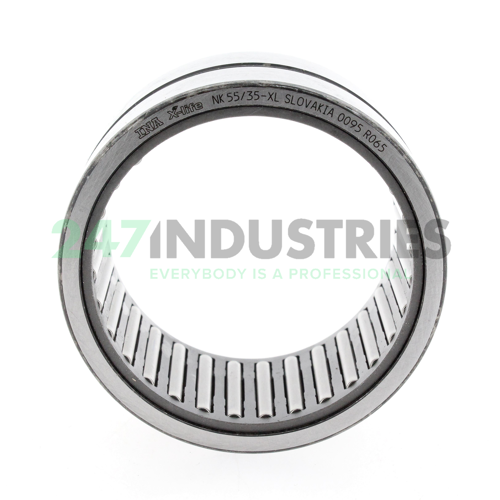

NK55/35-XL INA

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 68
3. Width (B) MM 35
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 2.6772
6. Width (B) Inch 1.378
7. Under roller diameter (F w) mm 55

Suffix description

1. XL X-Life

Technical details

1. Availability 126 pcs
2. Brand INA
3. Item number NK55/35-XL INA
4. Also known as 0507544160000
   NB556835
   NK55/35
   RNA556835
   TAF556835

5. EAN 4012802273908
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.275

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 118000
2. Radial Dynamic Load Rating Cr (N) 60000
3. Limiting speed (n G) 8400
4. Reference speed (n ϑr) 5200
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
