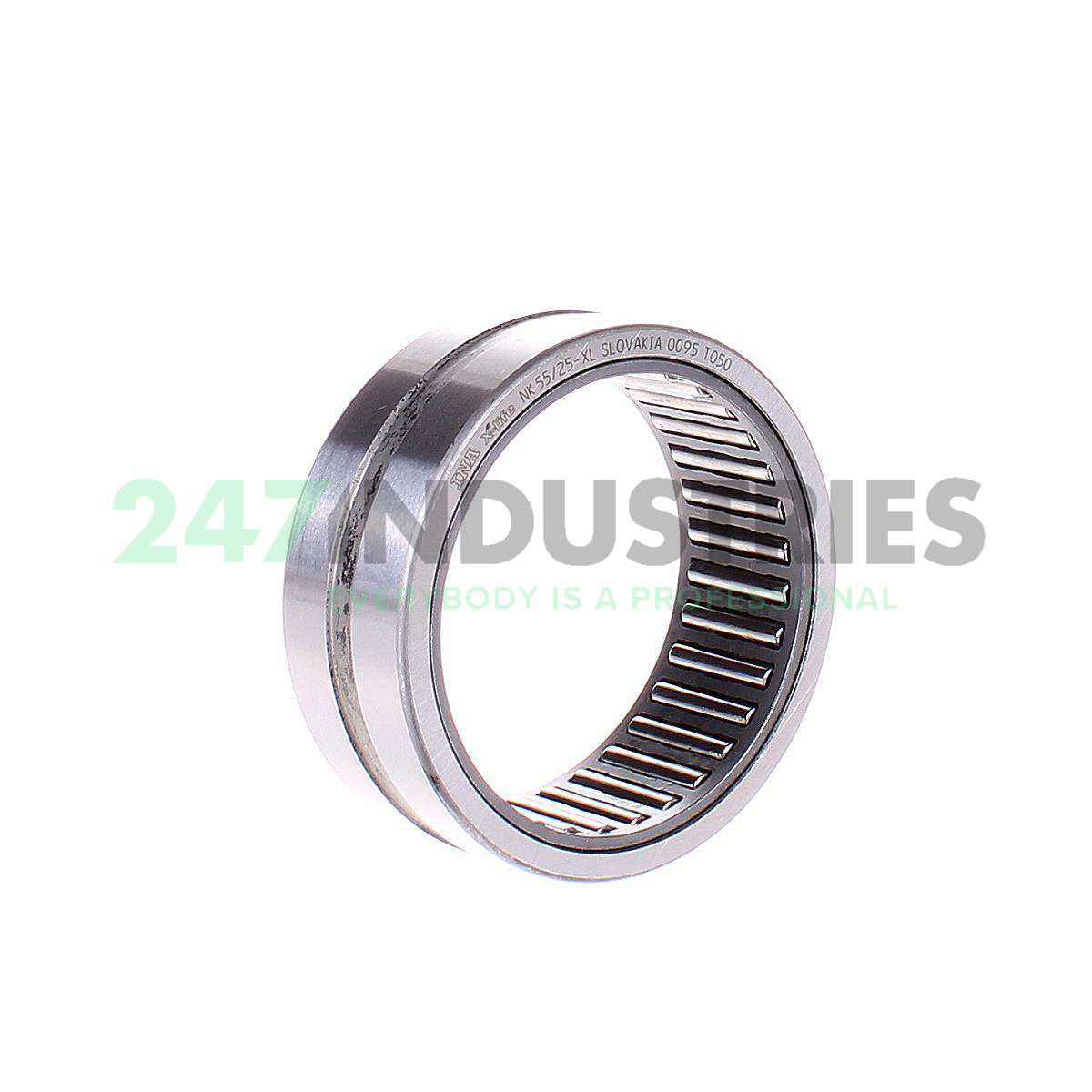

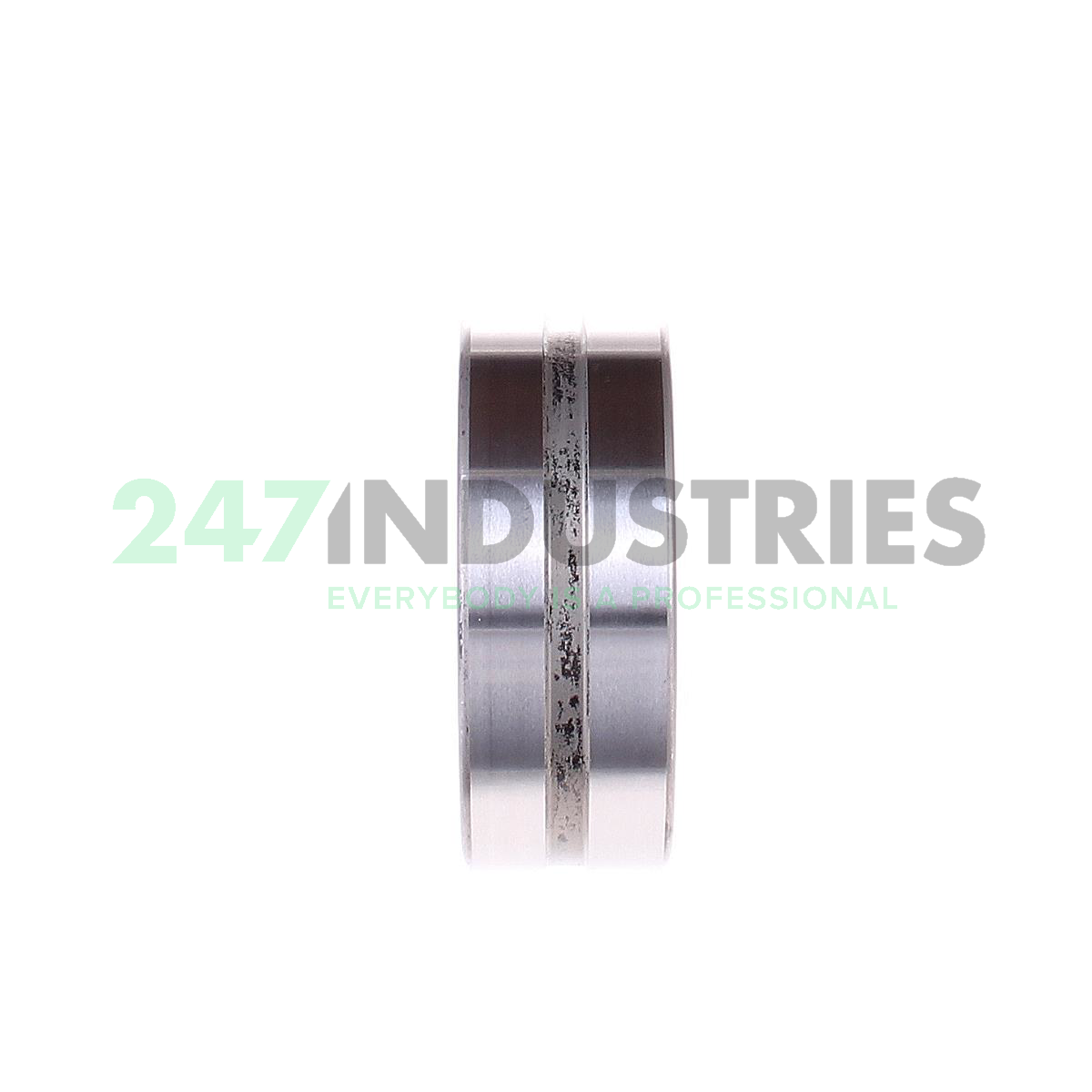

NK55/25-XL INA

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 68
3. Width (B) MM 25
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 2.6772
6. Width (B) Inch 0.9843
7. Under roller diameter (F w) mm 55

Suffix description

1. XL X-Life

Technical details

1. Availability 20 pcs
2. Brand INA
3. Item number NK55/25-XL INA
4. Also known as 0507544080000
   NB556825
   NK55/25
   RNA556825
   TAF556825

5. EAN 4012802273878
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.191

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 82000
2. Radial Dynamic Load Rating Cr (N) 45500
3. Limiting speed (n G) 8400
4. Reference speed (n ϑr) 5200
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series
