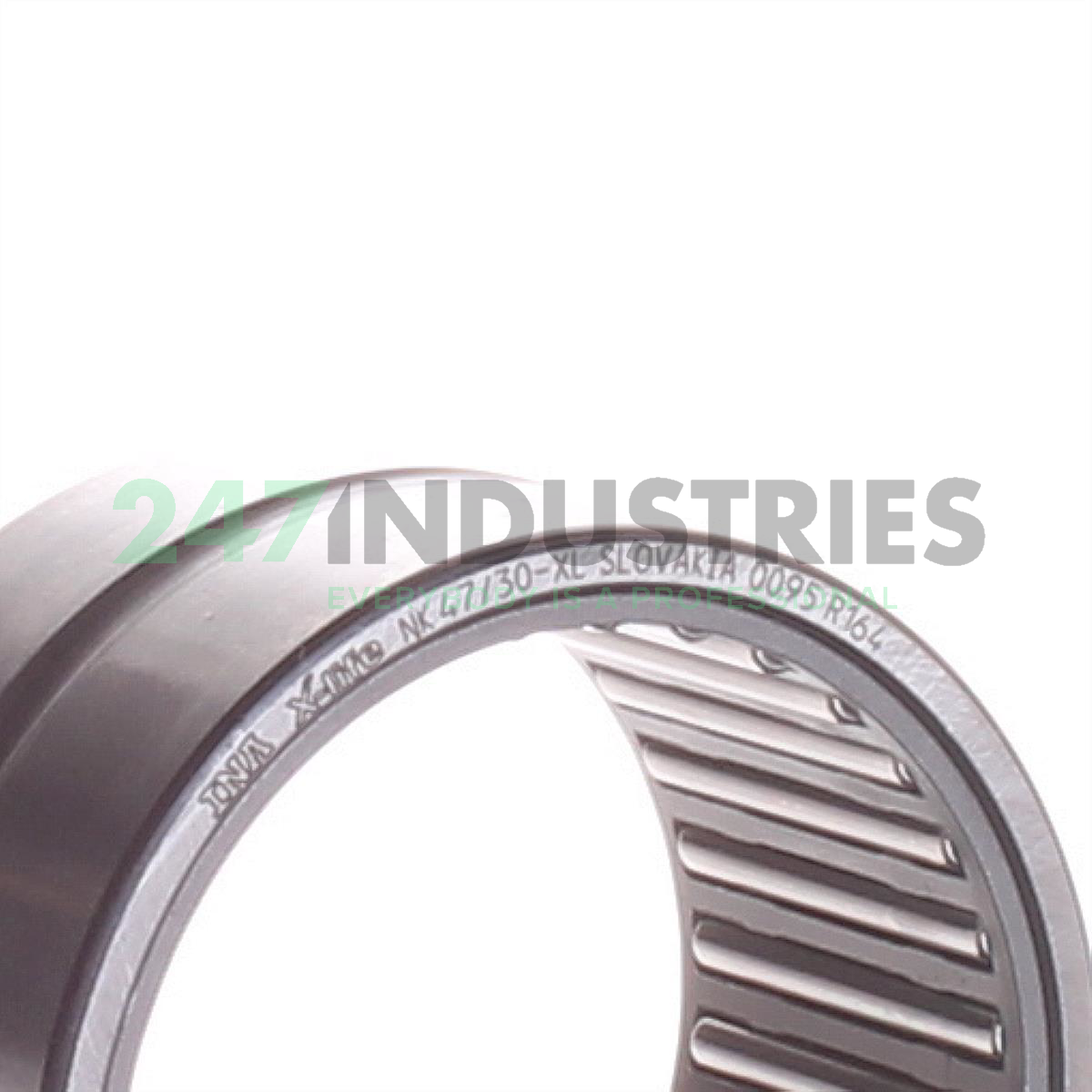

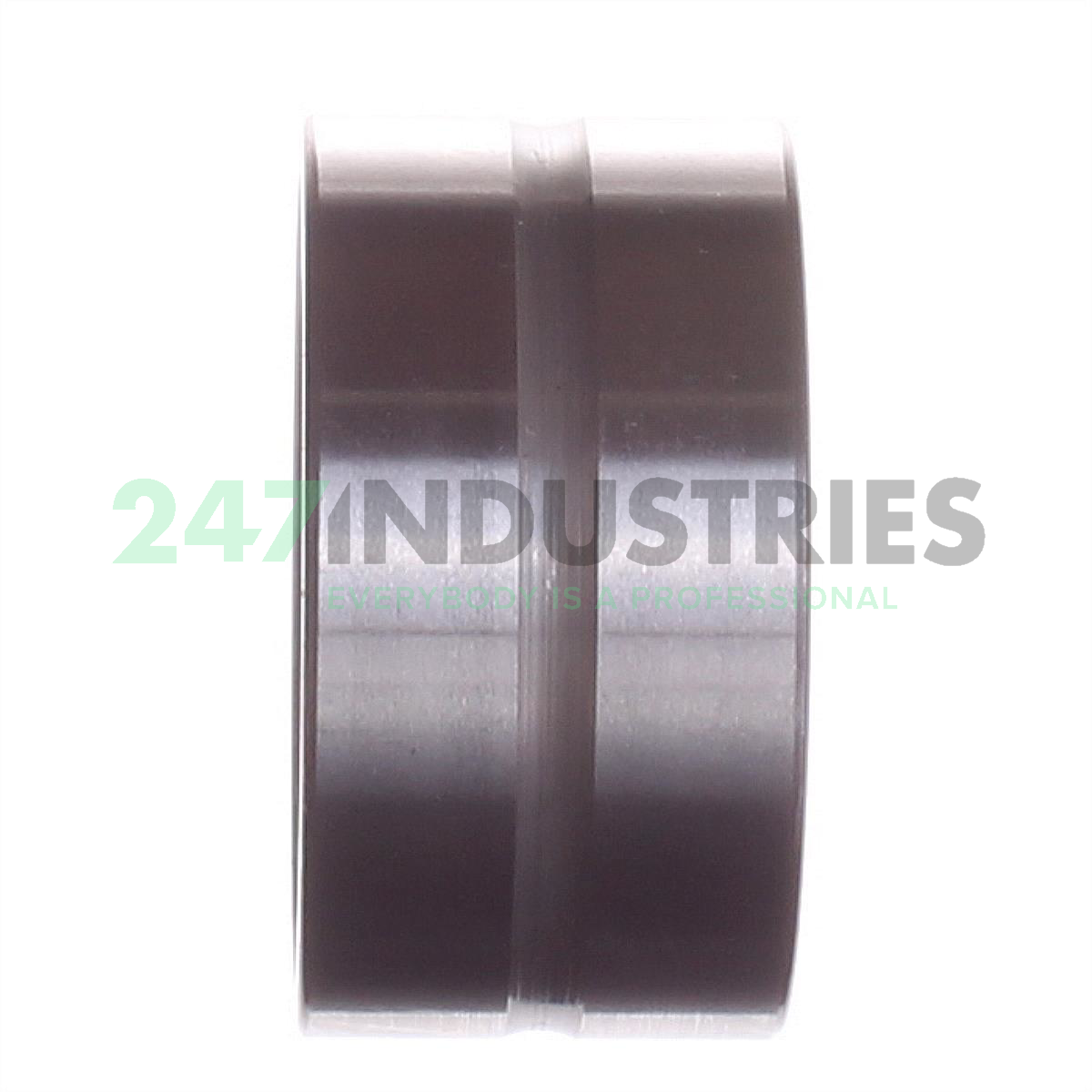

NK47/30-XL INA

All dimensions

1. Inner (d) MM 47
2. Outer (D) MM 57
3. Width (B) MM 30
4. Inner (d) Inch 1.8504
5. Outer (D) Inch 2.2441
6. Width (B) Inch 1.1811
7. Under roller diameter (F w) mm 47

Suffix description

1. XL X-Life

Technical details

1. Availability 8 pcs
2. Brand INA
3. Item number NK47/30-XL INA
4. Also known as 0507543780000
   NK47/30
   RNA475730
   TAF475730

5. EAN 4012802508901
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.142

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 94000
2. Radial Dynamic Load Rating Cr (N) 48500
3. Limiting speed (n G) 9800
4. Reference speed (n ϑr) 5800
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series
