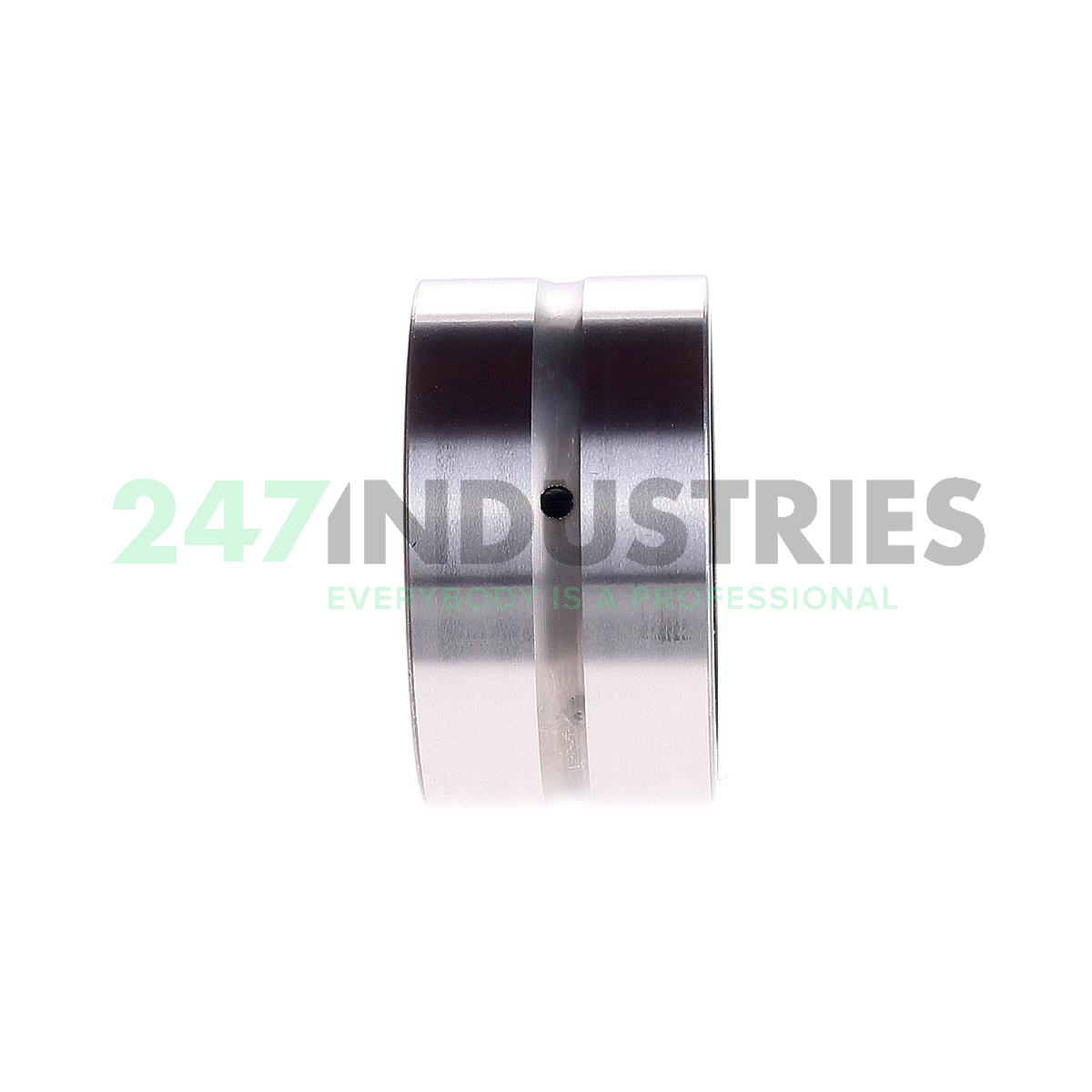

NK45/30-TV-XL INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 55
3. Width (B) MM 30
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.1654
6. Width (B) Inch 1.1811
7. Under roller diameter (F w) mm 45

Suffix description

1. TV Polyamide Cage
2. XL X-Life

Technical details

1. Availability 19 pcs on Wed 8 Jul
2. Brand INA
3. Item number NK45/30-TV-XL INA
4. Also known as 0507543510000
   NK45/30-TV

5. EAN 4012802314793
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.138

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 103000
2. Radial Dynamic Load Rating Cr (N) 52000
3. Limiting speed (n G) 10200
4. Reference speed (n ϑr) 5700
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series
