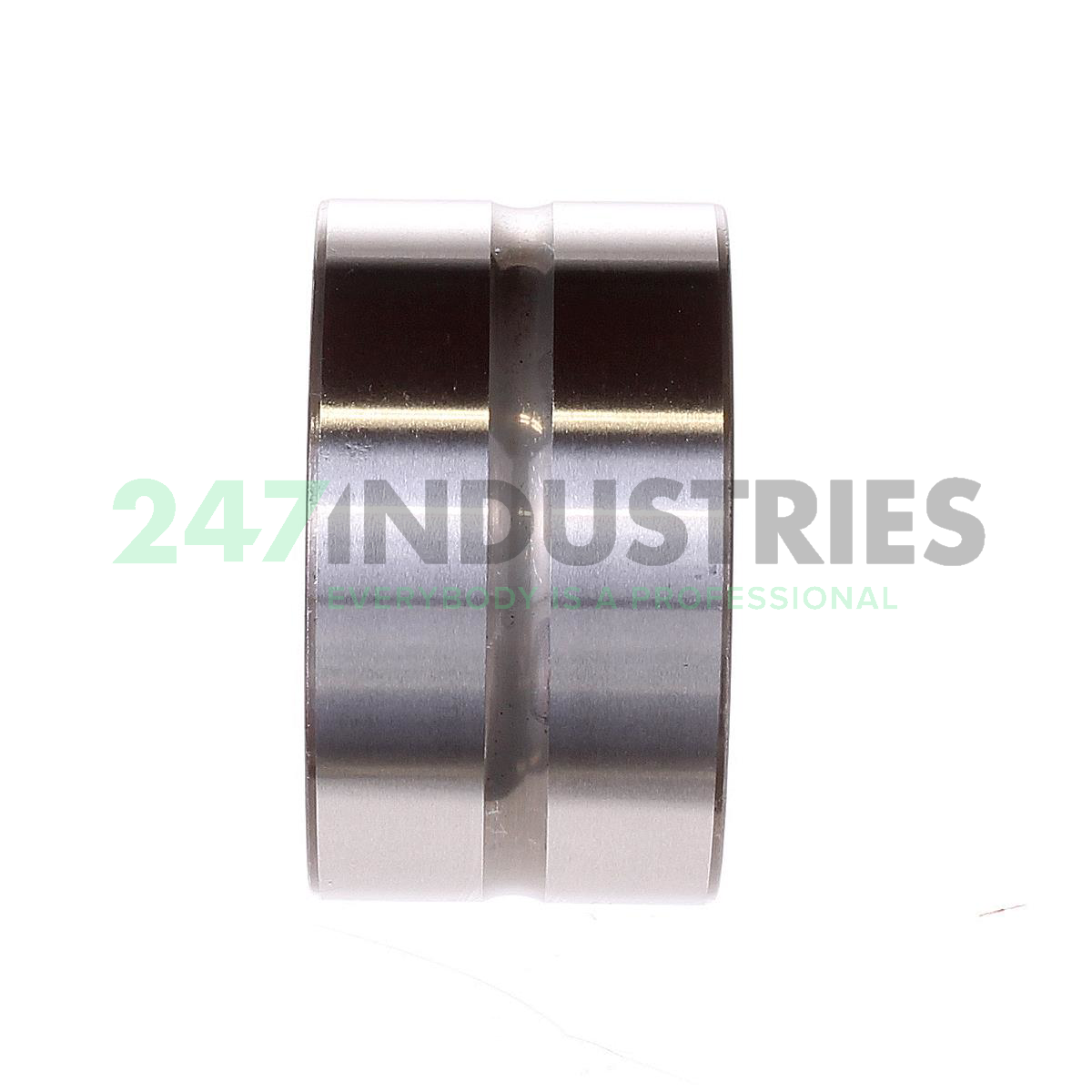

NK42/30-XL INA

All dimensions

1. Inner (d) MM 42
2. Outer (D) MM 52
3. Width (B) MM 30
4. Inner (d) Inch 1.6535
5. Outer (D) Inch 2.0472
6. Width (B) Inch 1.1811
7. Under roller diameter (F w) mm 42

Suffix description

1. XL X-Life

Technical details

1. Availability 62 pcs
2. Brand INA
3. Item number NK42/30-XL INA
4. Also known as 0507543190000
   NK42/30
   RNA425230
   TAF425230

5. EAN 4012802405187
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 82000
2. Radial Dynamic Load Rating Cr (N) 44500
3. Limiting speed (n G) 10900
4. Reference speed (n ϑr) 6400
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series
