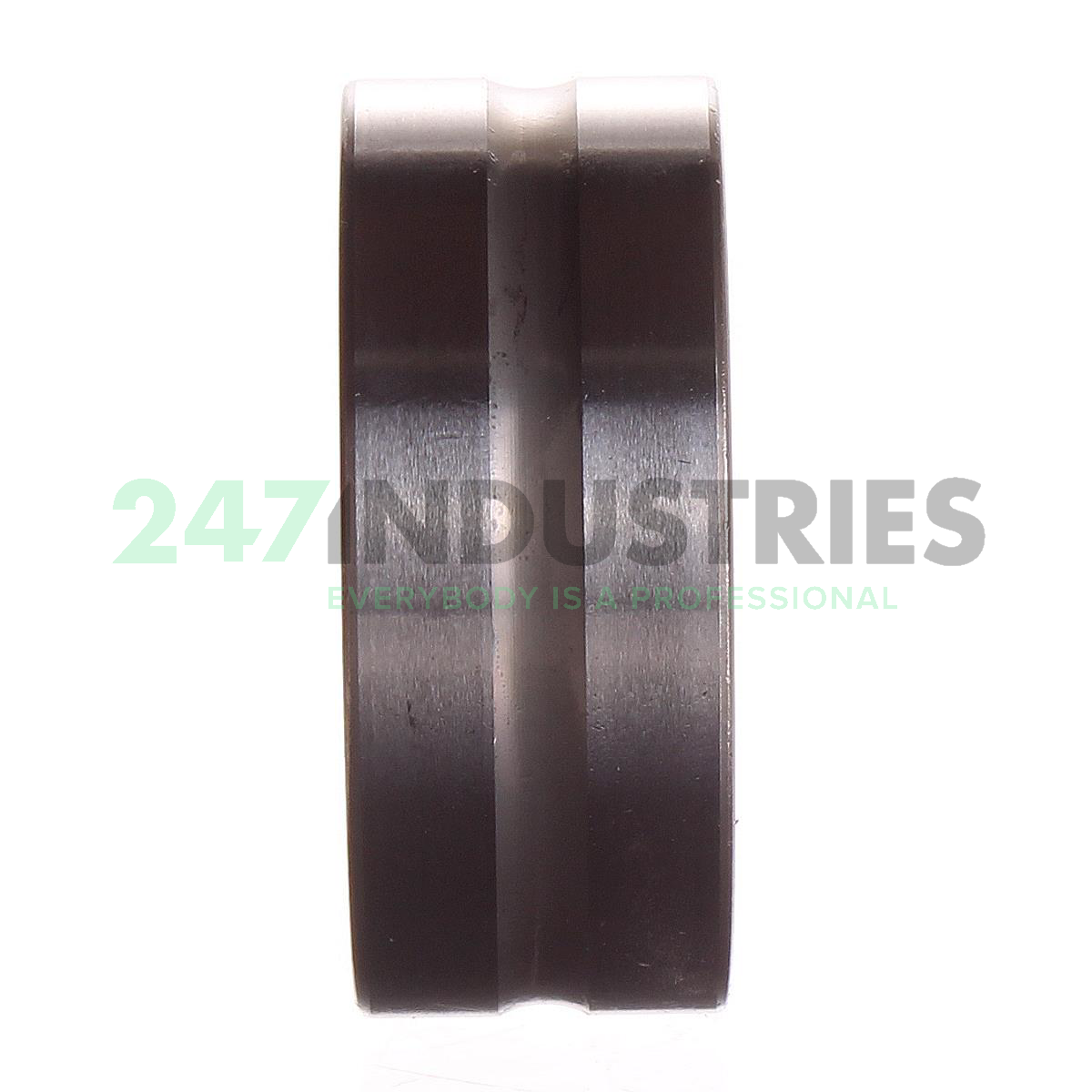

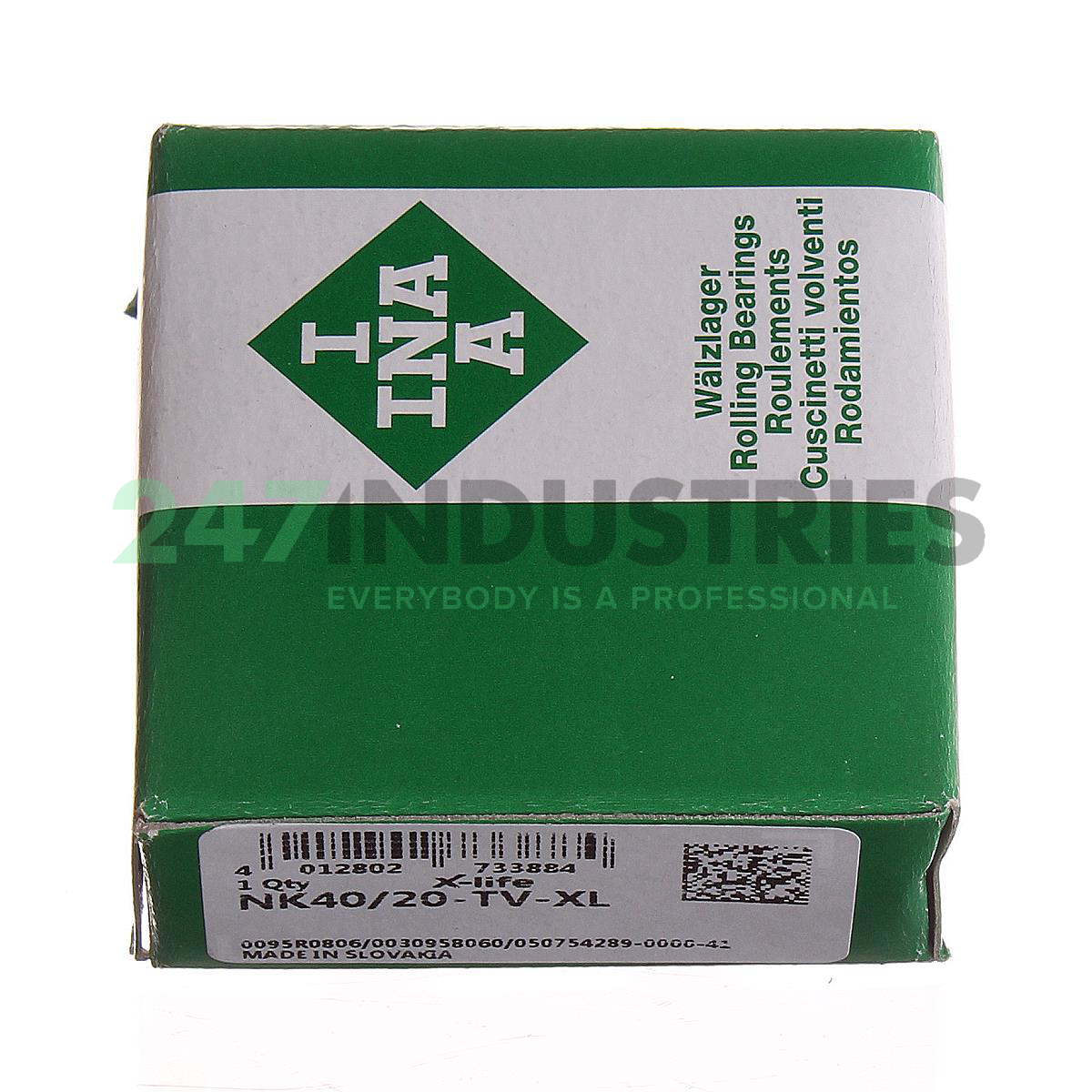

NK40/20-TV-XL INA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 50
3. Width (B) MM 20
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 1.9685
6. Width (B) Inch 0.7874
7. Under roller diameter (F w) mm 40

Suffix description

1. TV Polyamide Cage
2. XL X-Life

Technical details

1. Availability 239 pcs
2. Brand INA
3. Item number NK40/20-TV-XL INA
4. Also known as 0507542890000
   NK40/20-TV

5. EAN 4012802733884
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.083

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 56000
2. Radial Dynamic Load Rating Cr (N) 33500
3. Limiting speed (n G) 11400
4. Reference speed (n ϑr) 6500
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series
