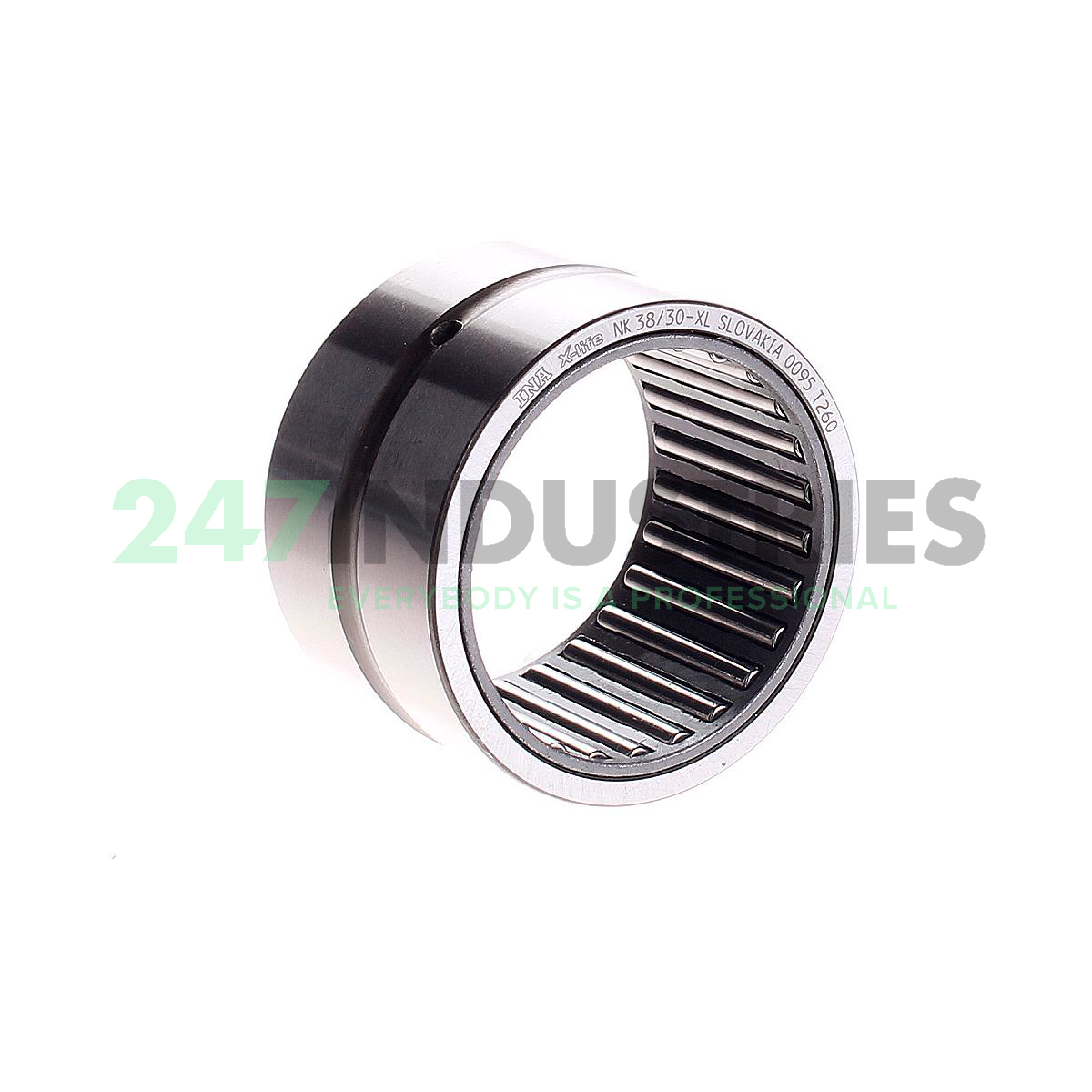

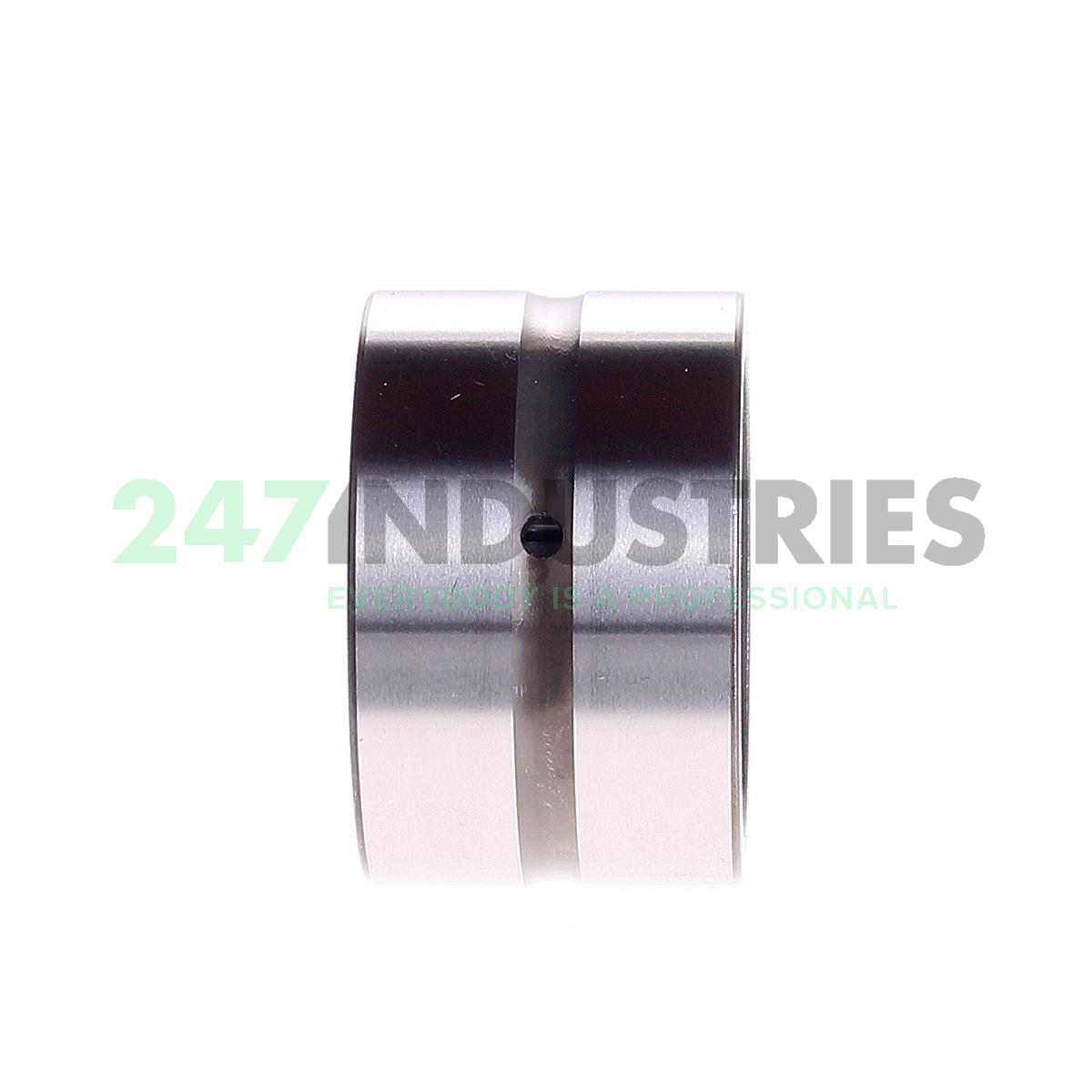

NK38/30-XL INA

All dimensions

1. Inner (d) MM 38,00
2. Outer (D) MM 48,00
3. Width (B) MM 30,00
4. Inner (d) Inch 1.4961
5. Outer (D) Inch 1.8898
6. Width (B) Inch 1.1811
7. Under roller diameter (F w) mm 38,00

Suffix description

1. XL X-Life

Technical details

1. Availability 23 pcs
2. Brand INA
3. Item number NK38/30-XL INA
4. Also known as 0507542700000
   NK38/30
   RNA384830
   TAF384830

5. EAN 4012802733877
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.116

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 76000
2. Radial Dynamic Load Rating Cr (N) 43000
3. Basic static load rating, radial (C 0r) "76000.0000"
4. Limiting speed (n G) "12000.0000"
5. Reference speed (n ϑr) "7000.0000"
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NK, light series
