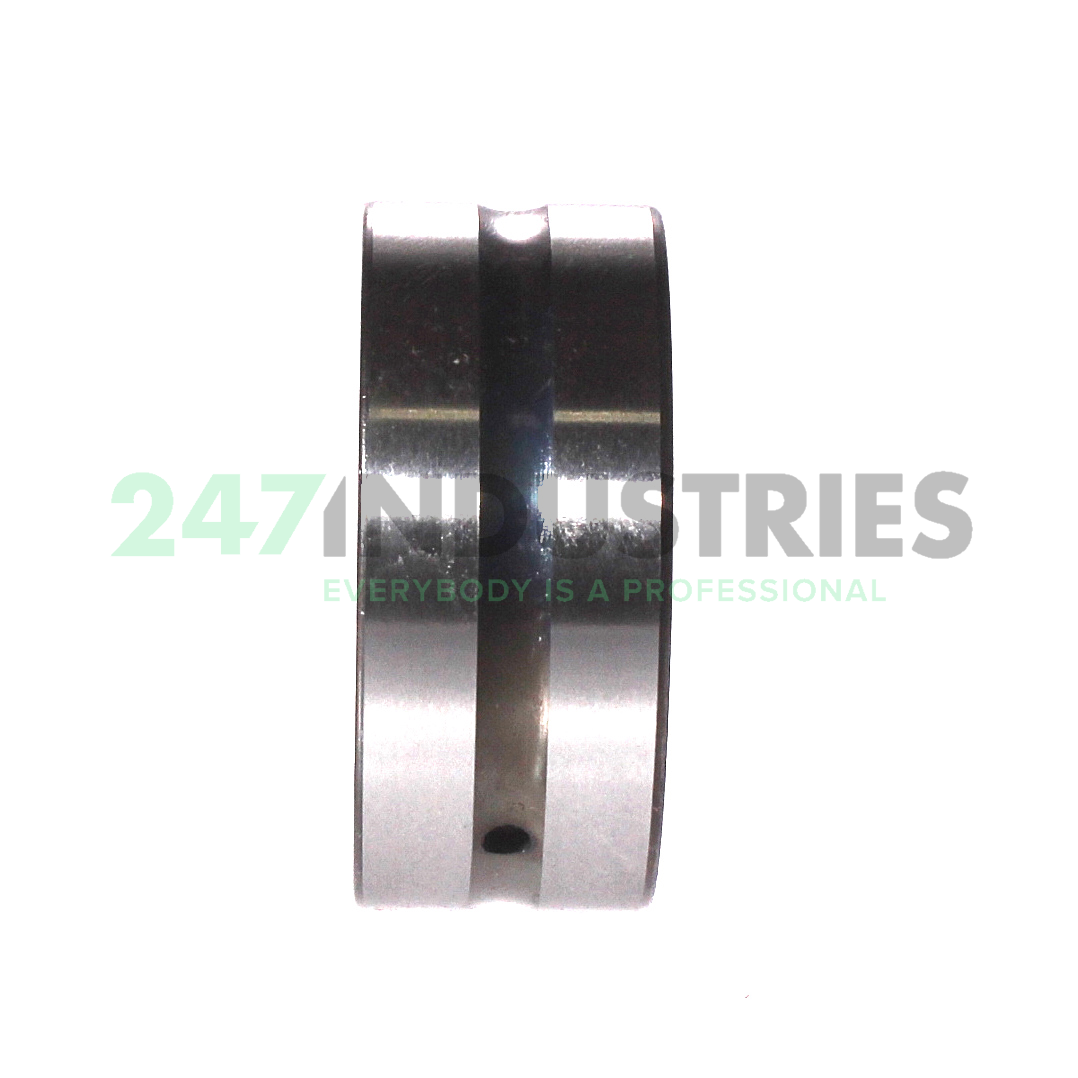

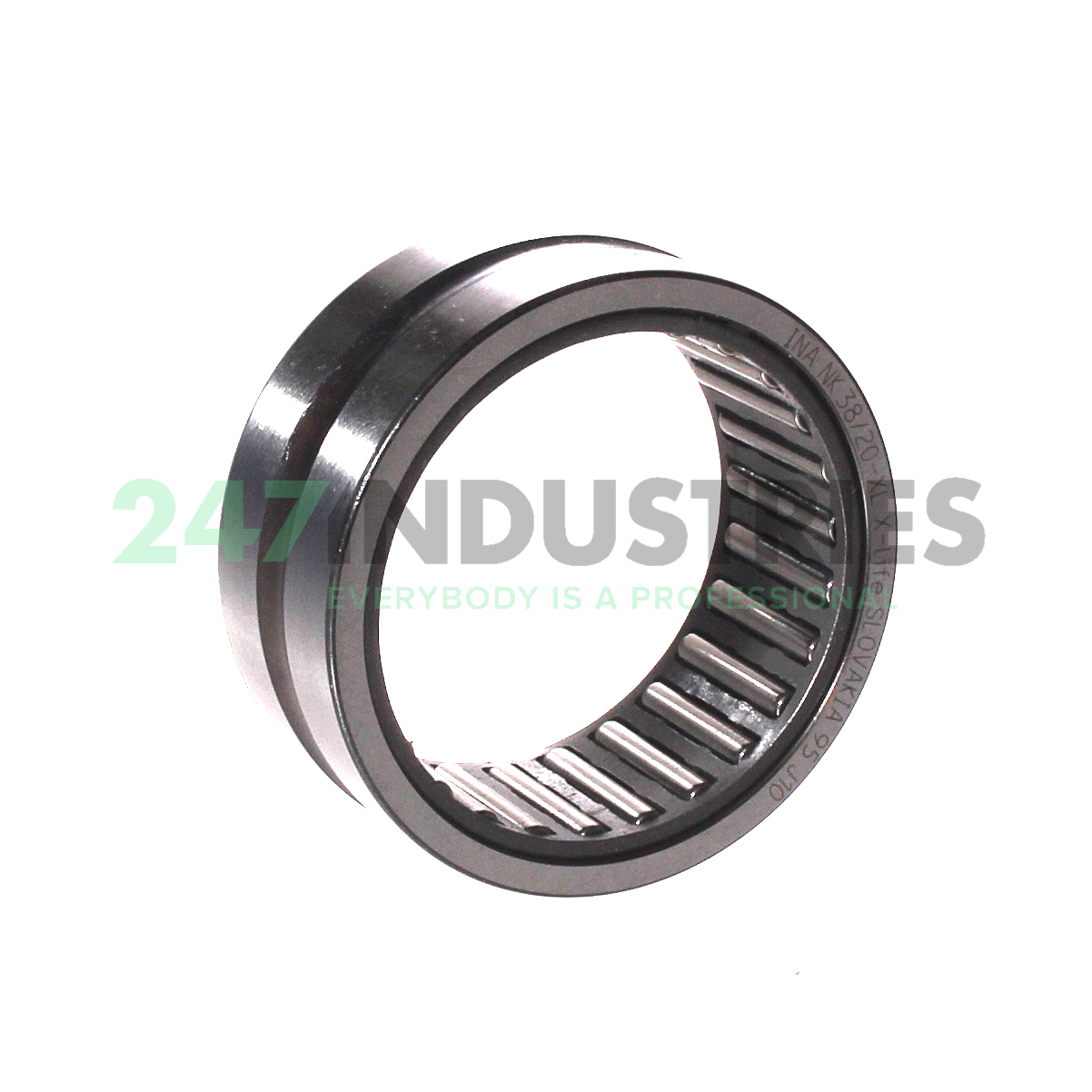

NK38/20-XL INA

All dimensions

1. Inner (d) MM 38
2. Outer (D) MM 48
3. Width (B) MM 20
4. Inner (d) Inch 1.4961
5. Outer (D) Inch 1.8898
6. Width (B) Inch 0.7874
7. Under roller diameter (F w) mm 38

Suffix description

1. XL X-Life

Technical details

1. Availability 10 pcs
2. Brand INA
3. Item number NK38/20-XL INA
4. Also known as 0507542620000
   NB384820
   NK38/20
   RNA384820
   TAF384820

5. EAN 4012802269321
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.079

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 45000
2. Radial Dynamic Load Rating Cr (N) 29000
3. Limiting speed (n G) 12000
4. Reference speed (n ϑr) 7200
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series
