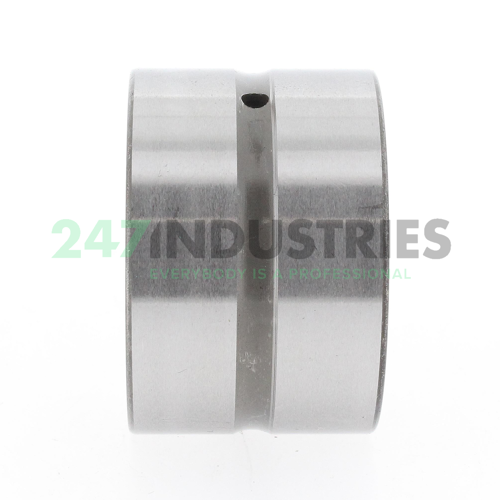

NK35/30-TV-XL INA

All dimensions

1. Inner (d) MM 35,00
2. Outer (D) MM 45,00
3. Width (B) MM 30,00
4. Inner (d) Inch 1.3780
5. Outer (D) Inch 1.7717
6. Width (B) Inch 1.1811
7. Under roller diameter (F w) mm 35,00

Suffix description

1. TV Polyamide Cage
2. XL X-Life

Technical details

1. Availability 50 pcs
2. Brand INA
3. Item number NK35/30-TV-XL INA
4. Also known as 0507542380000
   NK35/30TN
   NK35/30-TV

5. EAN 4012802701388
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.112

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 81000
2. Radial Dynamic Load Rating Cr (N) 46000
3. Basic static load rating, radial (C 0r) "81000.0000"
4. Limiting speed (n G) "12900.0000"
5. Reference speed (n ϑr) "7100.0000"
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NK, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
