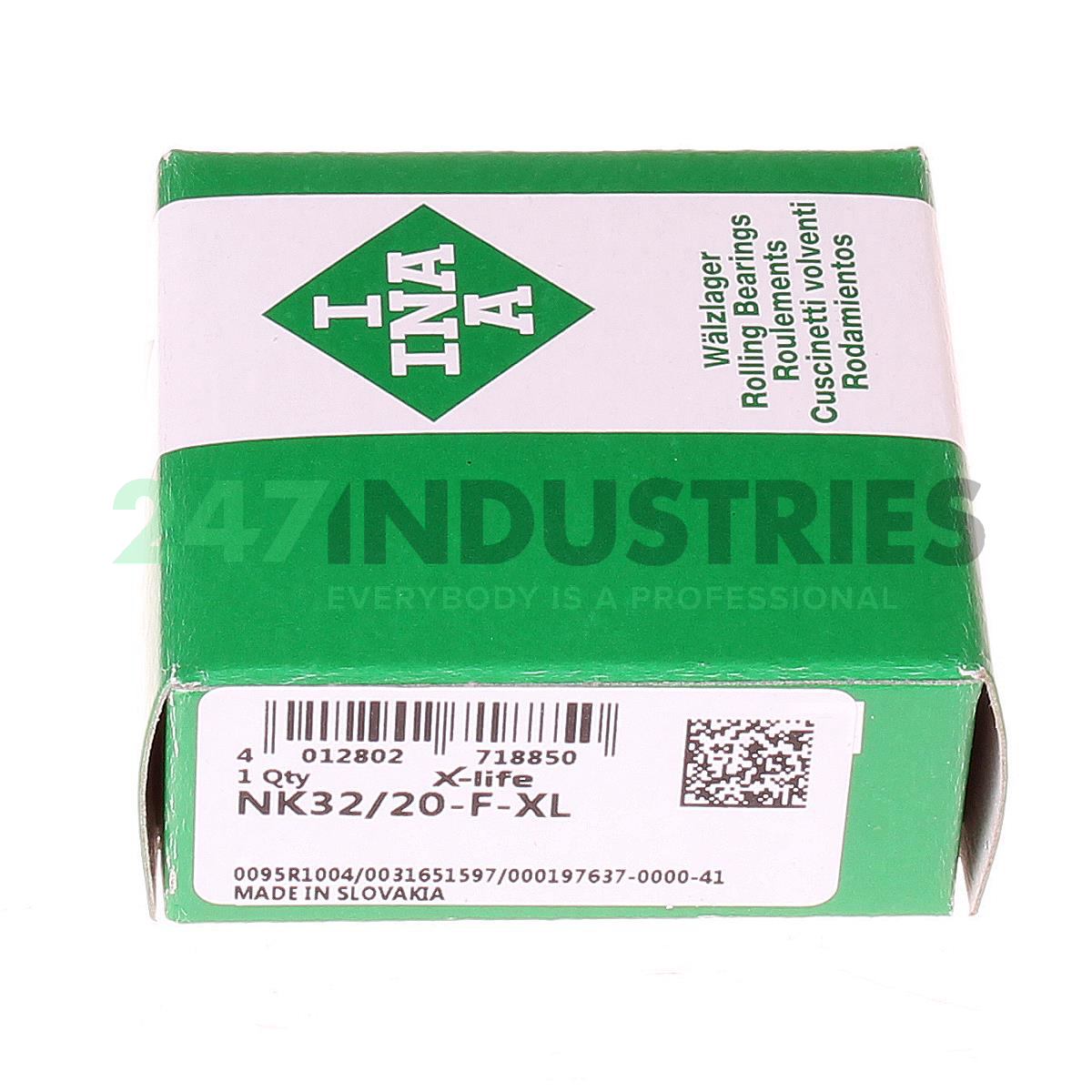

NK32/20-F-XL INA

All dimensions

1. Inner (d) MM 32
2. Outer (D) MM 42
3. Width (B) MM 20
4. Inner (d) Inch 1.2598
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.7874
7. Under roller diameter (F w) mm 32

Suffix description

1. F Machined Window Type Steel Cage
2. XL X-Life

Technical details

1. Availability 40 pcs
2. Brand INA
3. Item number NK32/20-F-XL INA
4. Also known as 0001976370000
   NK32/20-F

5. EAN 4012802718850
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.068

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 37500
2. Radial Dynamic Load Rating Cr (N) 26000
3. Limiting speed (n G) 14000
4. Reference speed (n ϑr) 8400
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearing NK..-F-XL, single row, no inner ring, outer ring with 2 bords

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
