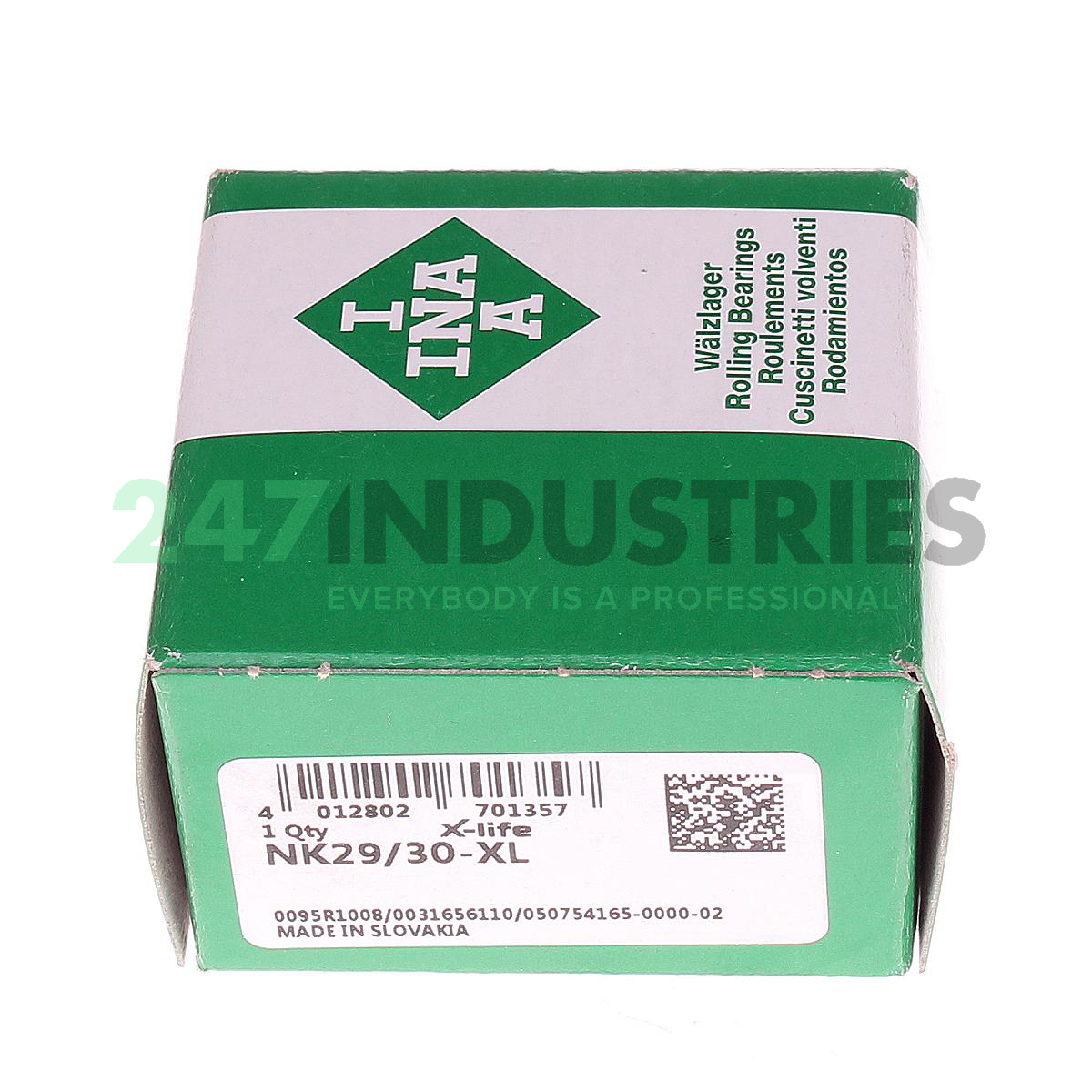

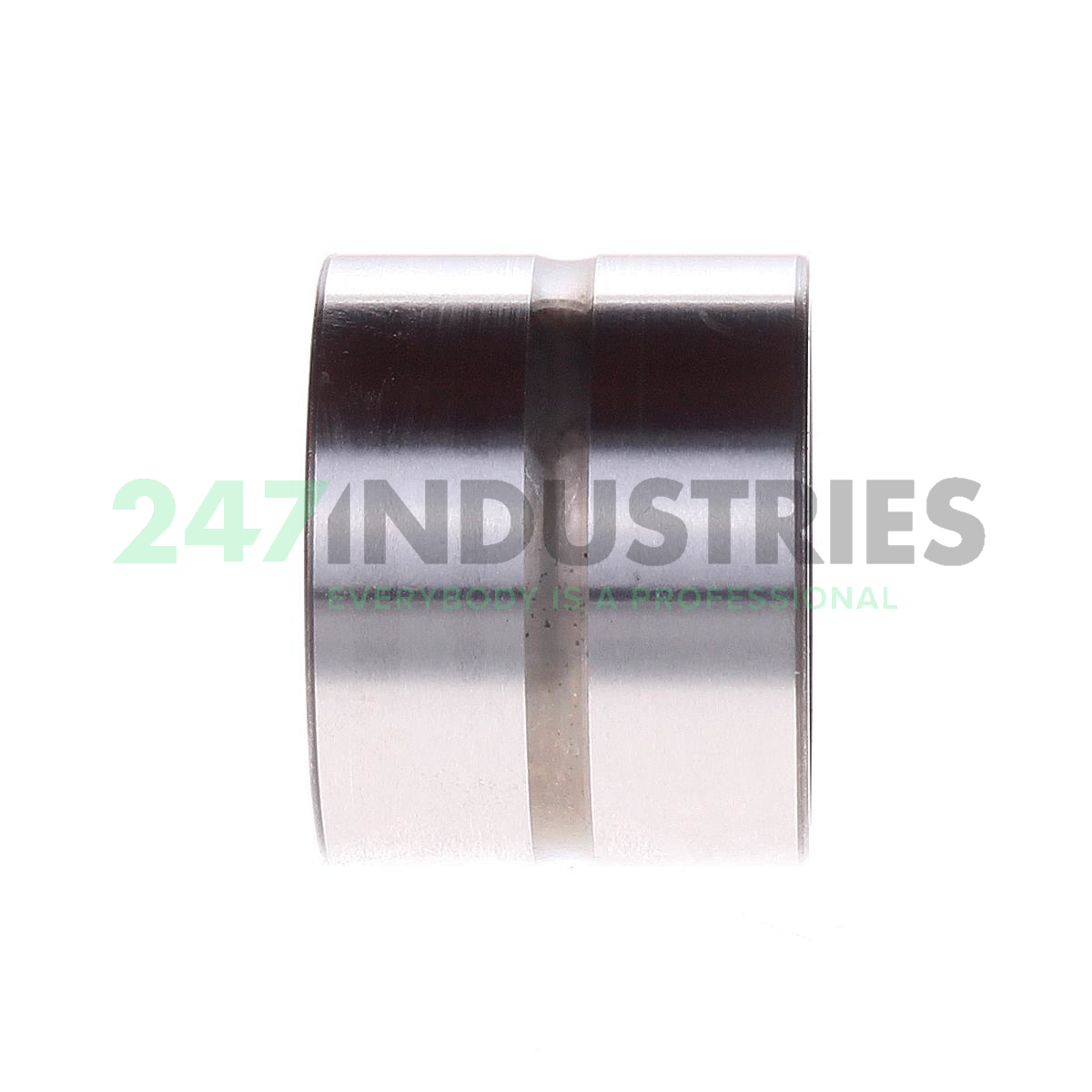

NK29/30-XL INA

All dimensions

1. Inner (d) MM 29
2. Outer (D) MM 38
3. Width (B) MM 30
4. Inner (d) Inch 1.1417
5. Outer (D) Inch 1.4961
6. Width (B) Inch 1.1811
7. Under roller diameter (F w) mm 29

Suffix description

1. XL X-Life

Technical details

1. Availability 98 pcs
2. Brand INA
3. Item number NK29/30-XL INA
4. Also known as 0507541650000
   NB293830
   NK29/30
   RNA293830
   TAF293830

5. EAN 4012802701357
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.081

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 57000
2. Radial Dynamic Load Rating Cr (N) 37000
3. Limiting speed (n G) 15300
4. Reference speed (n ϑr) 8800
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
