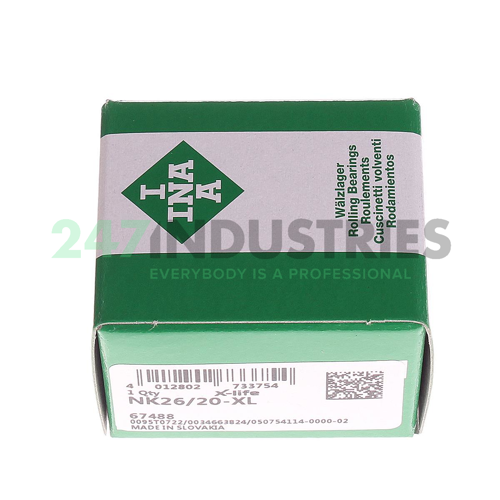

NK26/20-XL INA

All dimensions

1. Inner (d) MM 26
2. Outer (D) MM 34
3. Width (B) MM 20
4. Inner (d) Inch 1.0236
5. Outer (D) Inch 1.3386
6. Width (B) Inch 0.7874
7. Under roller diameter (F w) mm 26

Suffix description

1. XL X-Life

Technical details

1. Availability 184 pcs
2. Brand INA
3. Item number NK26/20-XL INA
4. Also known as 0507541140000
   NB263420
   NK26/20
   RNA263420
   TAF263420

5. EAN 4012802733754
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.042

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 32000
2. Radial Dynamic Load Rating Cr (N) 22000
3. Limiting speed (n G) 17200
4. Reference speed (n ϑr) 10100
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series
