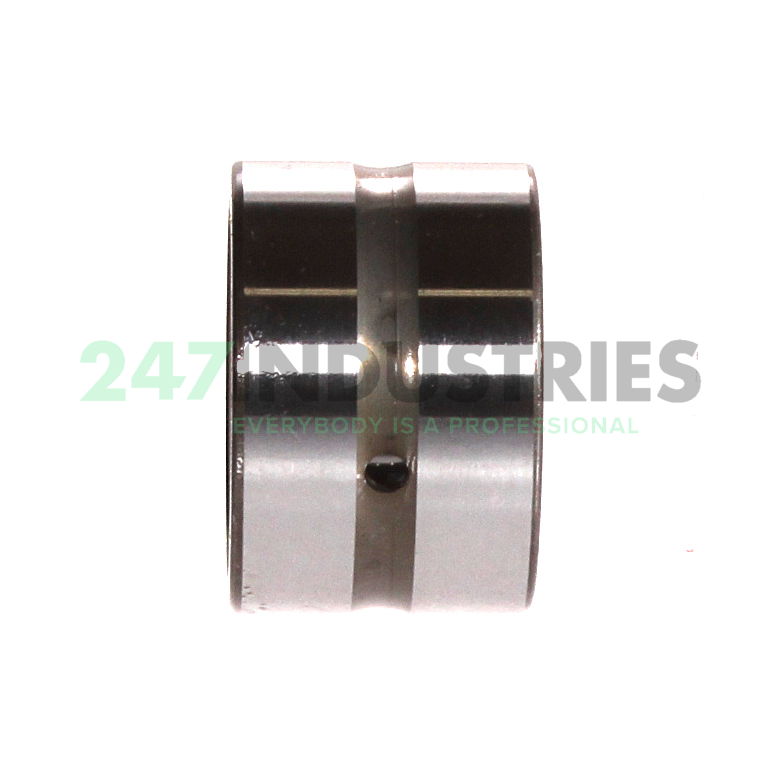

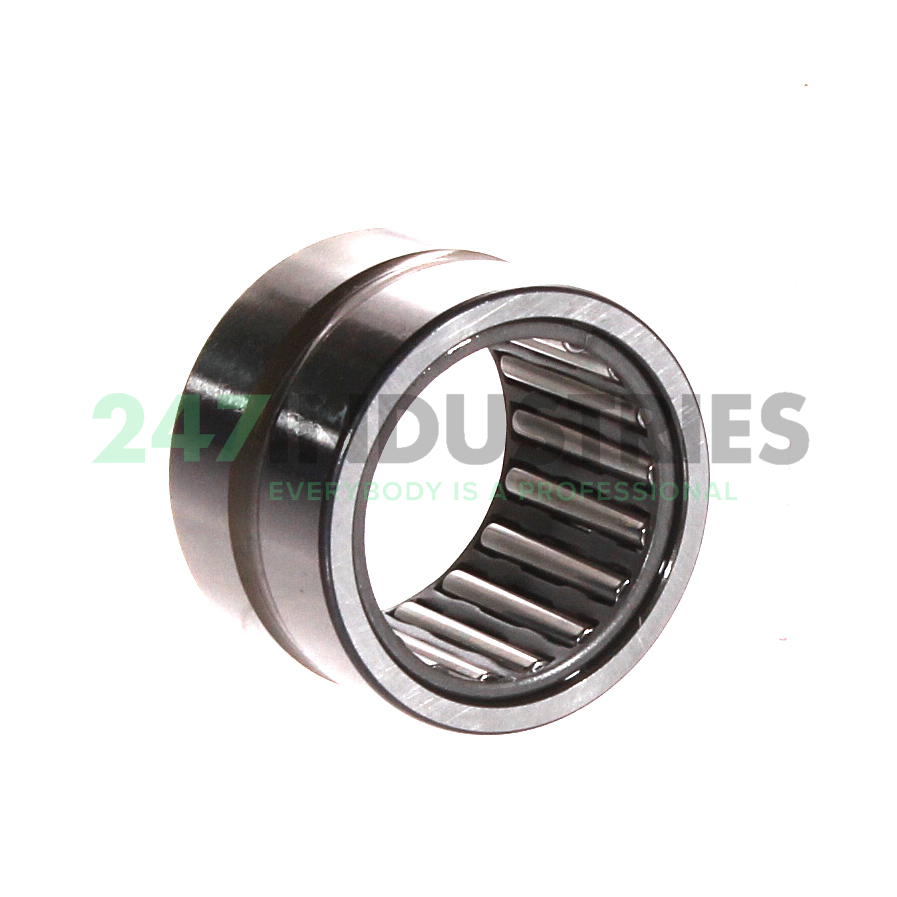

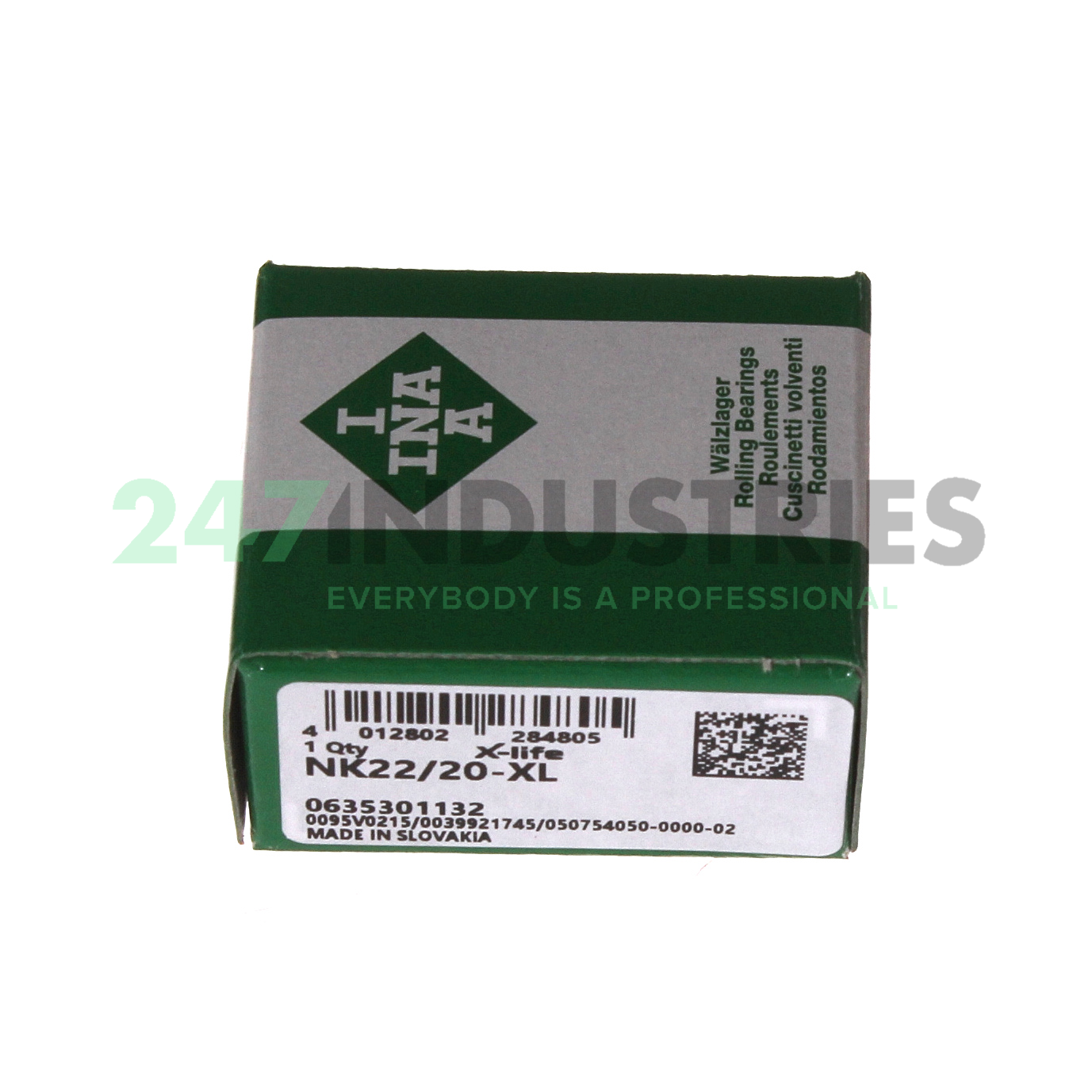

NK22/20-XL INA

All dimensions

1. Inner (d) MM 22,00
2. Outer (D) MM 30,00
3. Width (B) MM 20,00
4. Inner (d) Inch 0.8661
5. Outer (D) Inch 1.1811
6. Width (B) Inch 0.7874
7. Under roller diameter (F w) mm 22,00

Suffix description

1. XL X-Life

Technical details

1. Availability 318 pcs
2. Brand INA
3. Item number NK22/20-XL INA
4. Also known as 0507540500000
   NB223020
   NK22/20
   RNA223020
   TAF223020

5. EAN 4012802284805
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.037

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 27000
2. Radial Dynamic Load Rating Cr (N) 20000
3. Basic static load rating, radial (C 0r) "27000.0000"
4. Limiting speed (n G) "20000.0000"
5. Reference speed (n ϑr) "11700.0000"
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NK, light series
