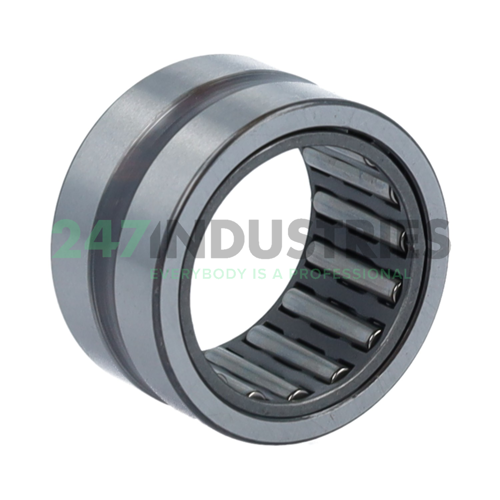

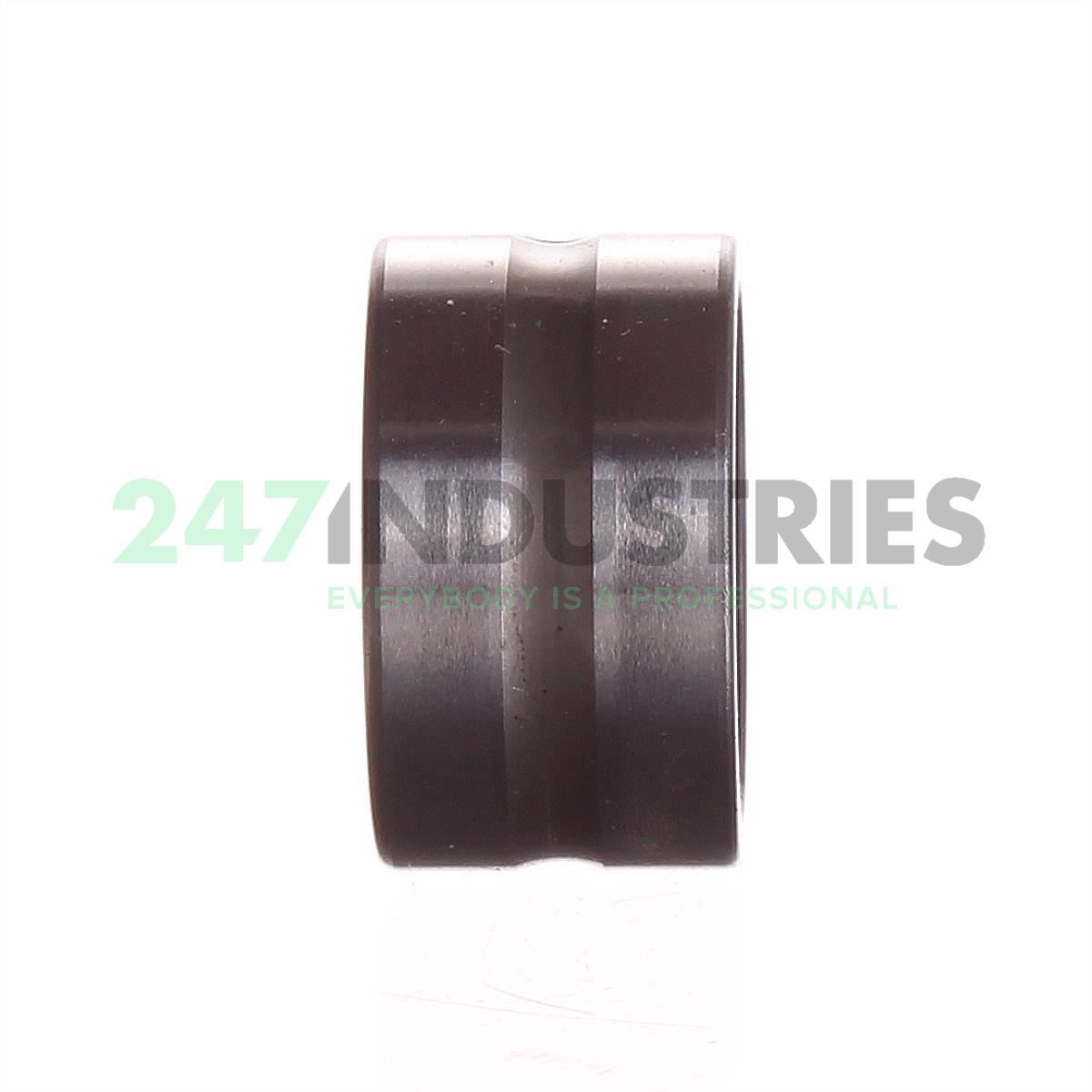

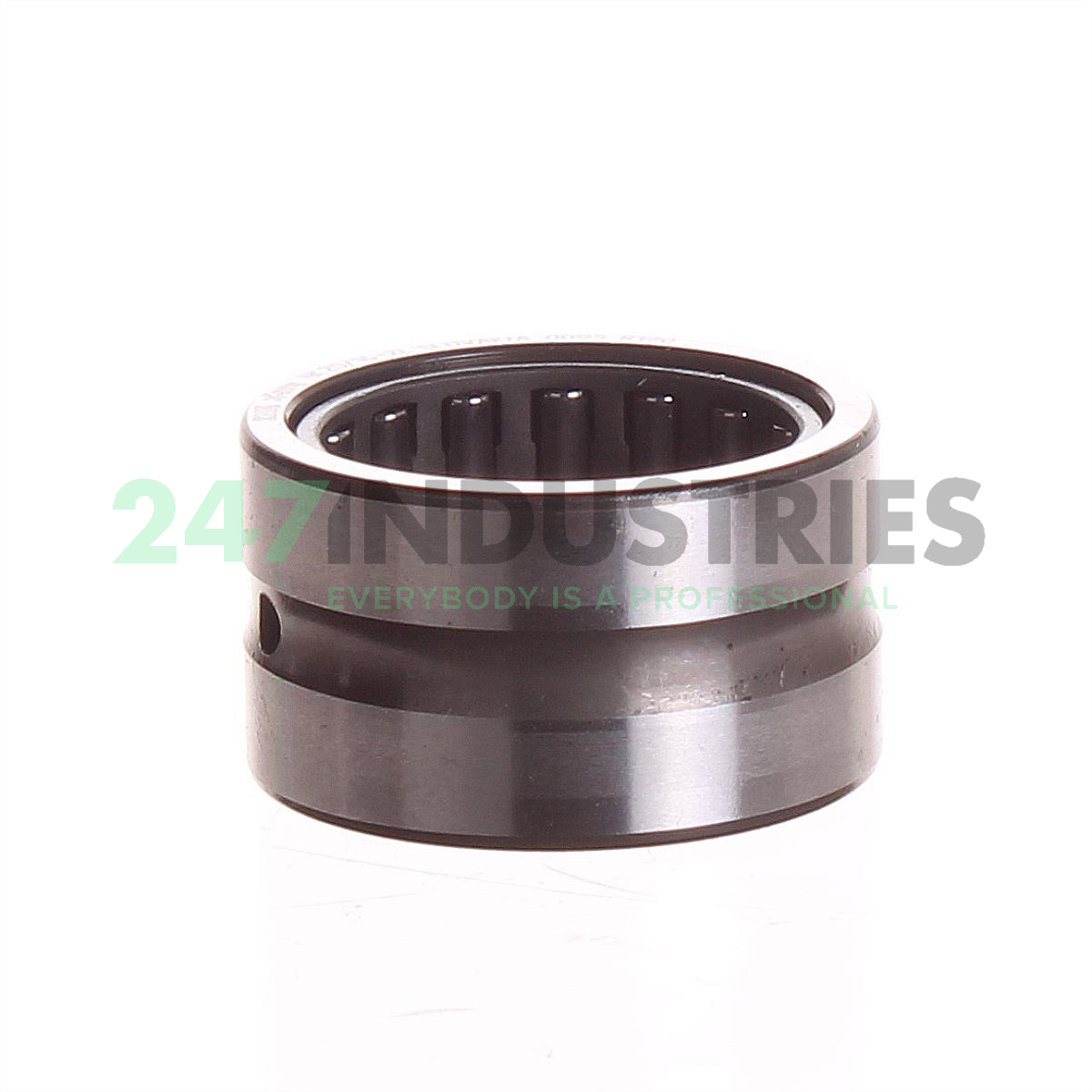

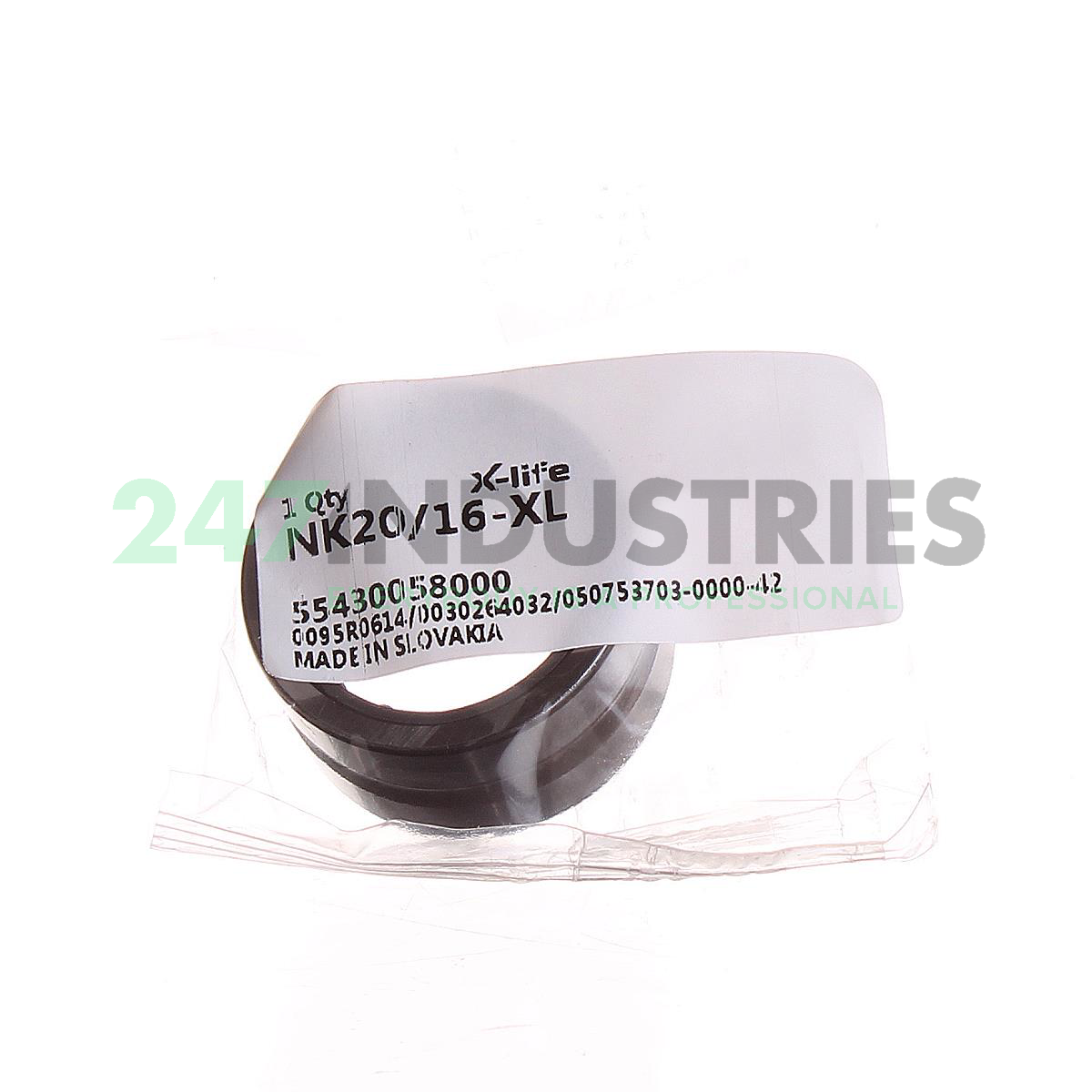

NK20/16-XL INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 28
3. Width (B) MM 16
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.6299
7. Under roller diameter (F w) mm 20

Suffix description

1. XL X-Life

Technical details

1. Availability 190 pcs
2. Brand INA
3. Item number NK20/16-XL INA
4. Also known as 0507537030000
   NB202816
   NK20/16
   RNA202816
   TAF202816

5. EAN 4012802733532
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.0276

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 17500
2. Radial Dynamic Load Rating Cr (N) 14600
3. Limiting speed (n G) 21100
4. Reference speed (n ϑr) 13200
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
