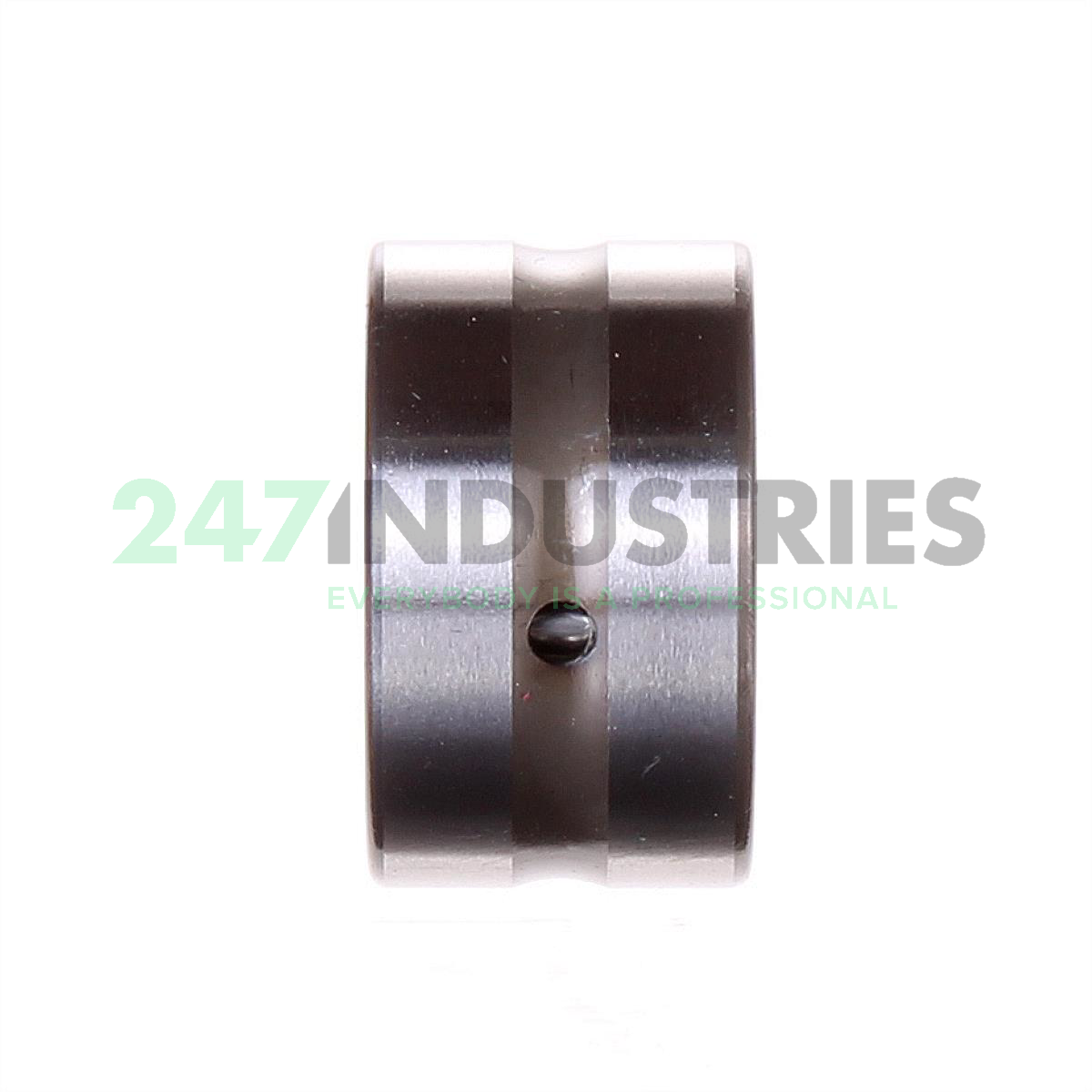

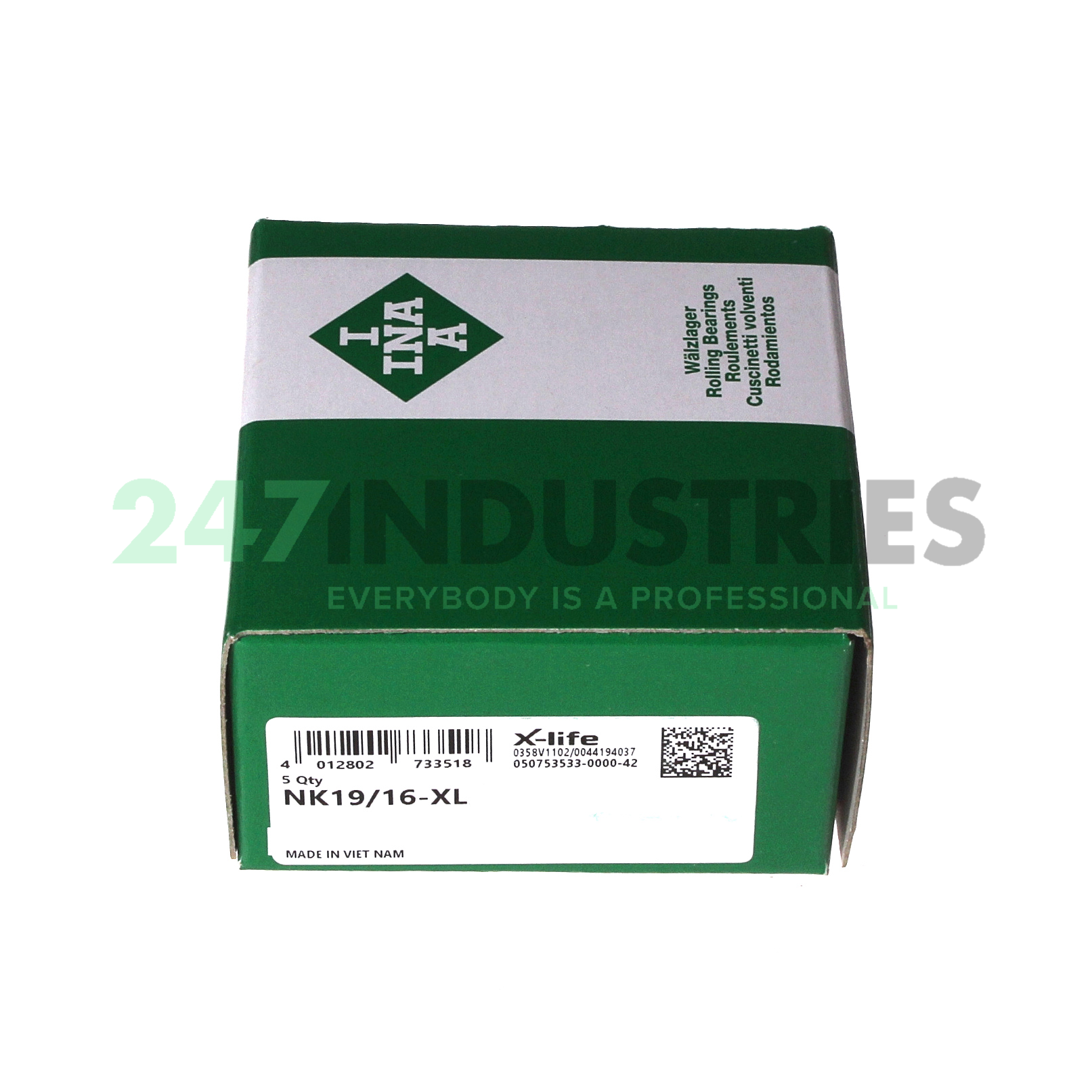

NK19/16-XL INA

All dimensions

1. Inner (d) MM 19,00
2. Outer (D) MM 27,00
3. Width (B) MM 16,00
4. Inner (d) Inch 0.7480
5. Outer (D) Inch 1.0630
6. Width (B) Inch 0.6299
7. Under roller diameter (F w) mm 19,00

Suffix description

1. XL X-Life

Technical details

1. Availability 49 pcs
2. Brand INA
3. Item number NK19/16-XL INA
4. Also known as 0507535330000
   NB192716
   NK19/16
   RNA192716
   TAF192716

5. EAN 4012802733518
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.026

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 17400
2. Radial Dynamic Load Rating Cr (N) 14700
3. Basic static load rating, radial (C 0r) "17400.0000"
4. Limiting speed (n G) "21600.0000"
5. Reference speed (n ϑr) "13700.0000"
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NK, light series
