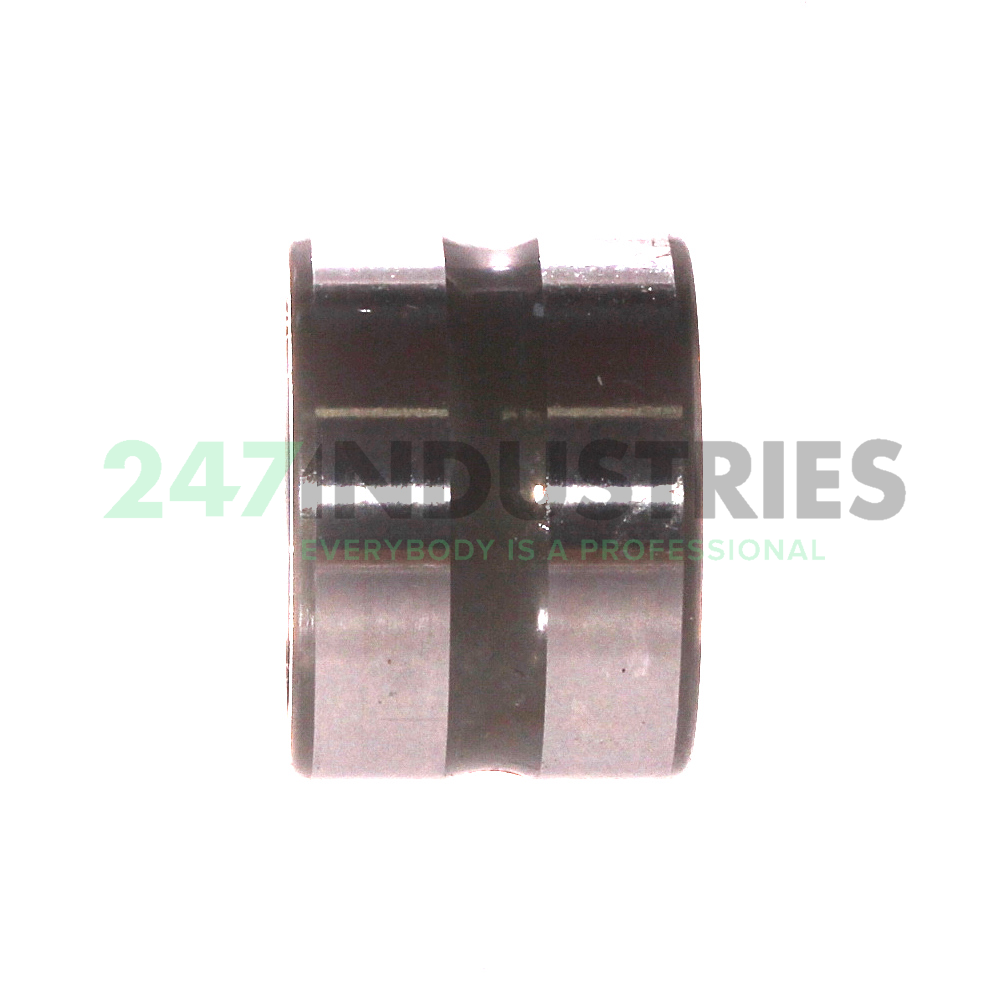

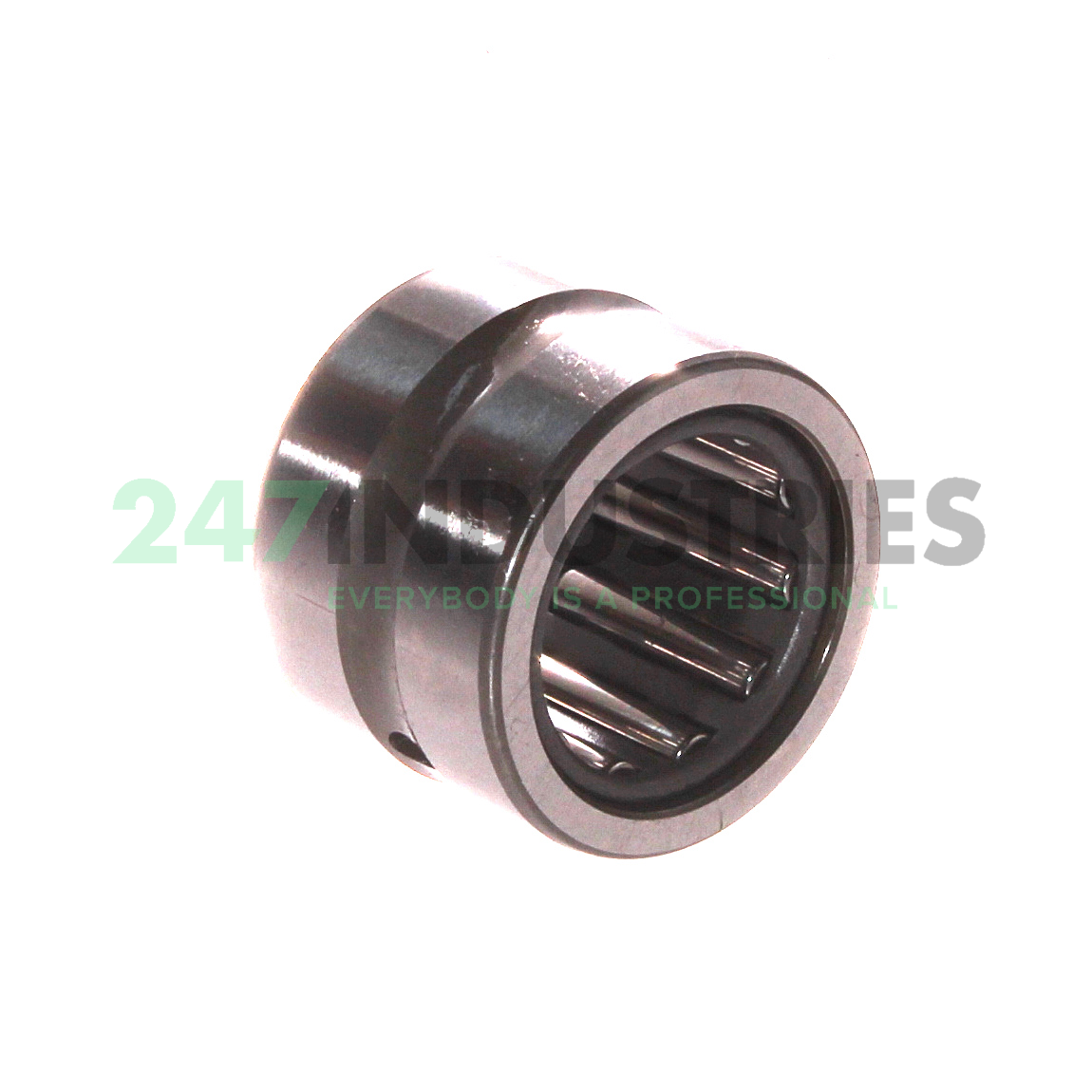

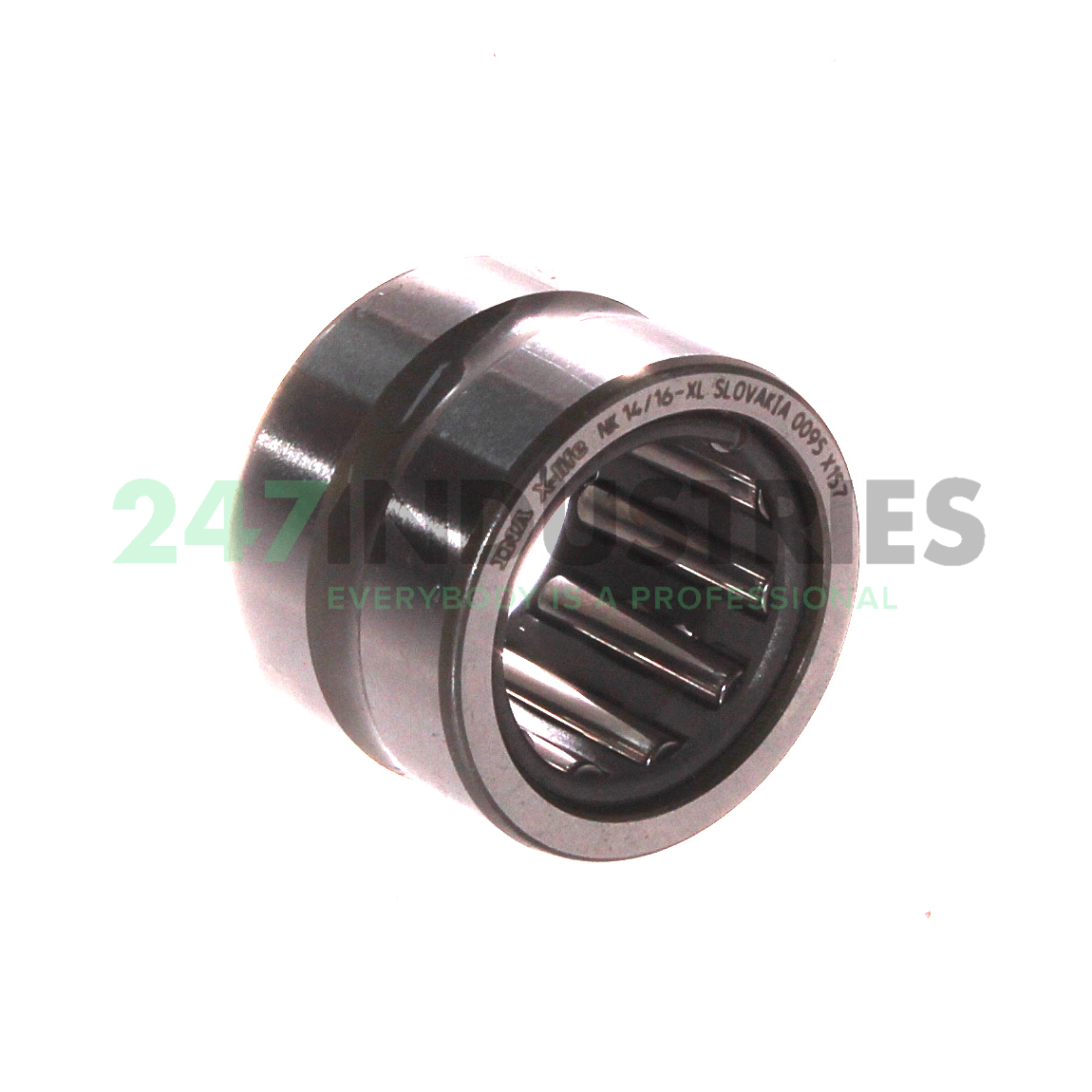

NK14/16-XL INA

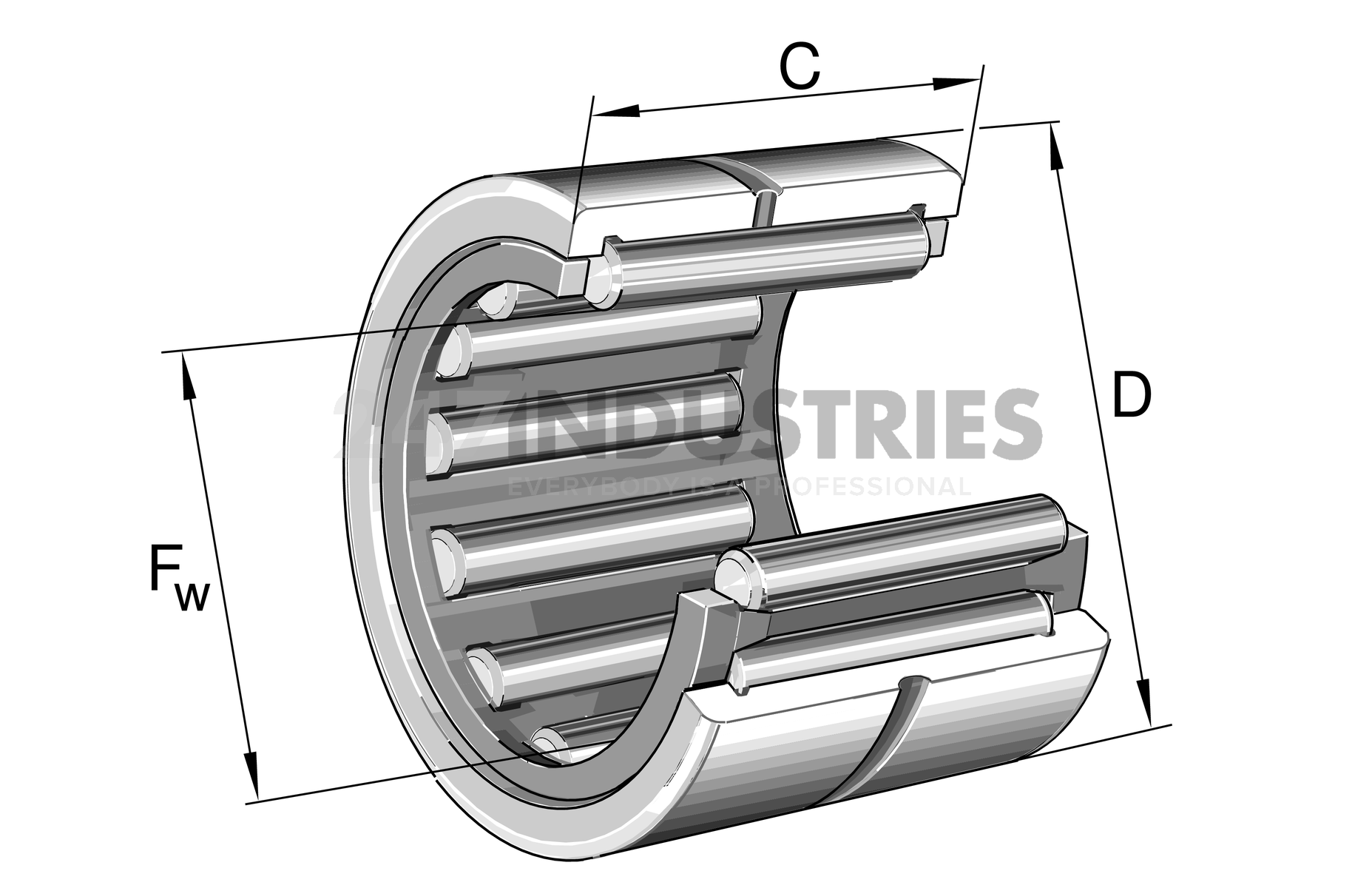

All dimensions

1. Inner (d) MM 14
2. Outer (D) MM 22
3. Width (B) MM 16
4. Inner (d) Inch 0.5512
5. Outer (D) Inch 0.8661
6. Width (B) Inch 0.6299
7. Under roller diameter (F w) mm 14

Suffix description

1. XL X-Life

Technical details

1. Availability 66 pcs
2. Brand INA
3. Item number NK14/16-XL INA
4. Also known as 0507533200000
   NK14/16

5. EAN 4012802733396
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.021

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11500
2. Radial Dynamic Load Rating Cr (N) 11400
3. Basic static load rating, radial (C 0r) "11500.0000"
4. Limiting speed (n G) 24600
5. Reference speed (n ϑr) 18600
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NK, light series
