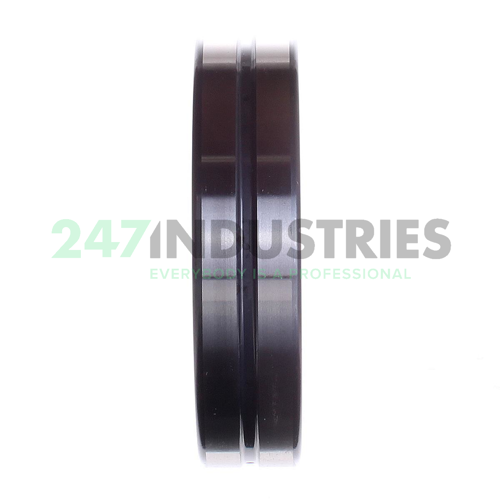

NK110/40-XL INA

All dimensions

1. Inner (d) MM 110
2. Outer (D) MM 130
3. Width (B) MM 40
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.5748
7. Under roller diameter (F w) mm 110

Suffix description

1. XL X-Life

Technical details

1. Availability 38 pcs
2. Brand INA
3. Item number NK110/40-XL INA
4. Also known as 0507548820000
   NK110/40
   NK110/40A
   RNA11013040
   TAF11013040

5. EAN 4047643204491
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.83

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 290000
2. Radial Dynamic Load Rating Cr (N) 143000
3. Basic static load rating, radial (C 0r) "290000.0000"
4. Limiting speed (n G) 4200
5. Reference speed (n ϑr) 2750
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NK, light series
