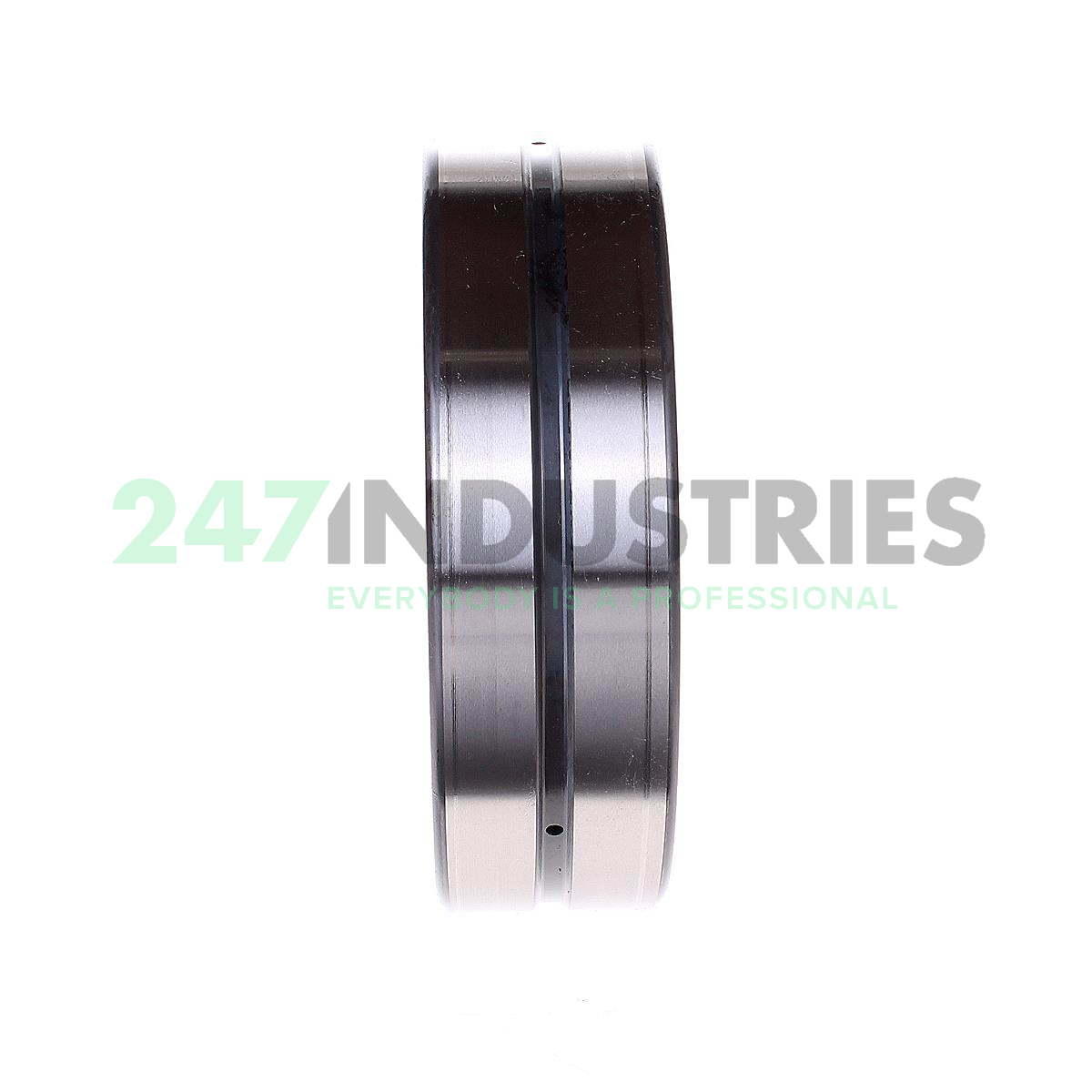

NK105/36-XL INA

All dimensions

1. Inner (d) MM 105
2. Outer (D) MM 125
3. Width (B) MM 36
4. Inner (d) Inch 4.1339
5. Outer (D) Inch 4.9213
6. Width (B) Inch 1.4173
7. Under roller diameter (F w) mm 105

Suffix description

1. XL X-Life

Technical details

1. Availability 29 pcs
2. Brand INA
3. Item number NK105/36-XL INA
4. Also known as 0507548660000
   NK105/36
   NK105/36ASR1
   RNA10512536
   TAF10512536

5. EAN 4012802609523
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.76

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 250000
2. Radial Dynamic Load Rating Cr (N) 129000
3. Limiting speed (n G) 4400
4. Reference speed (n ϑr) 2850
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
