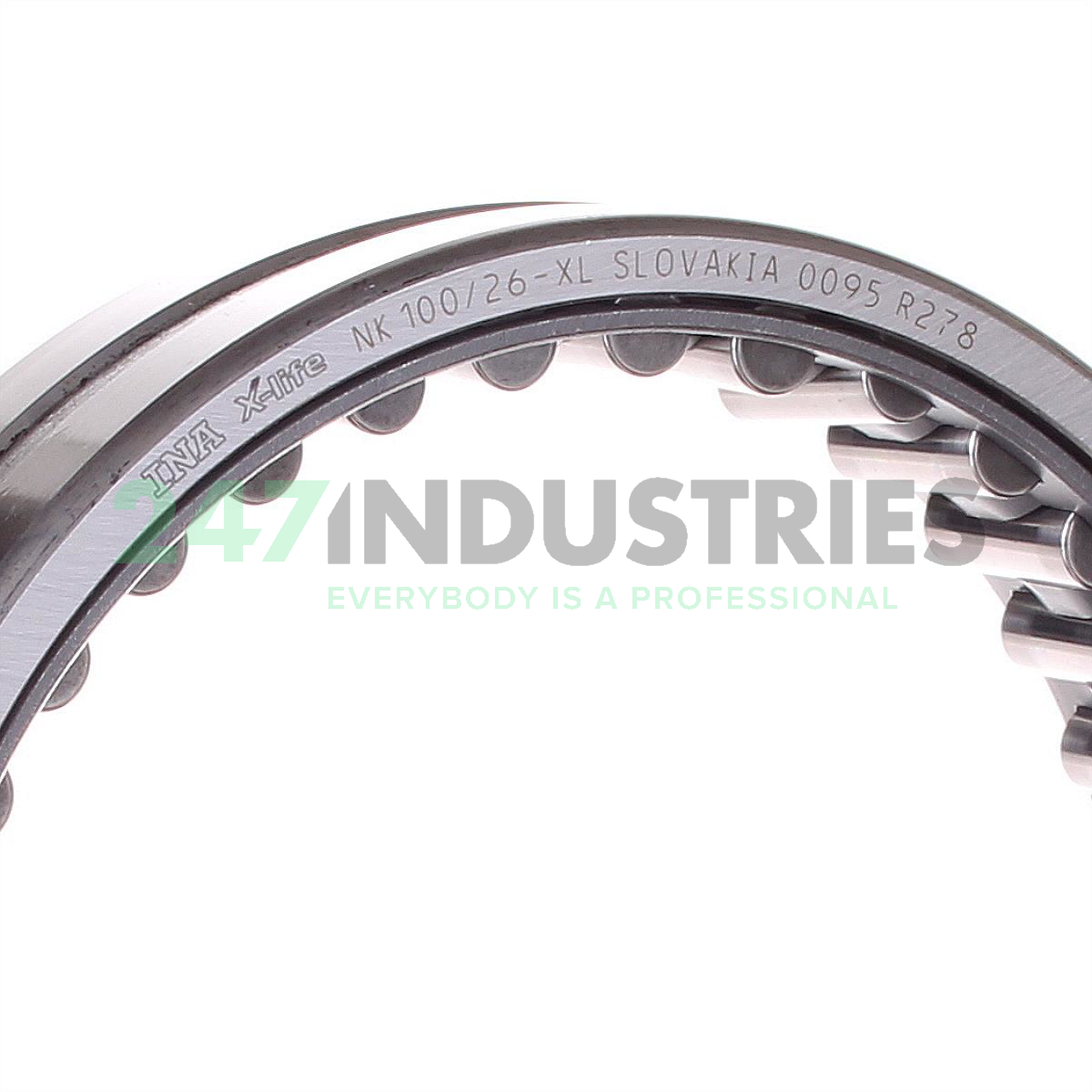

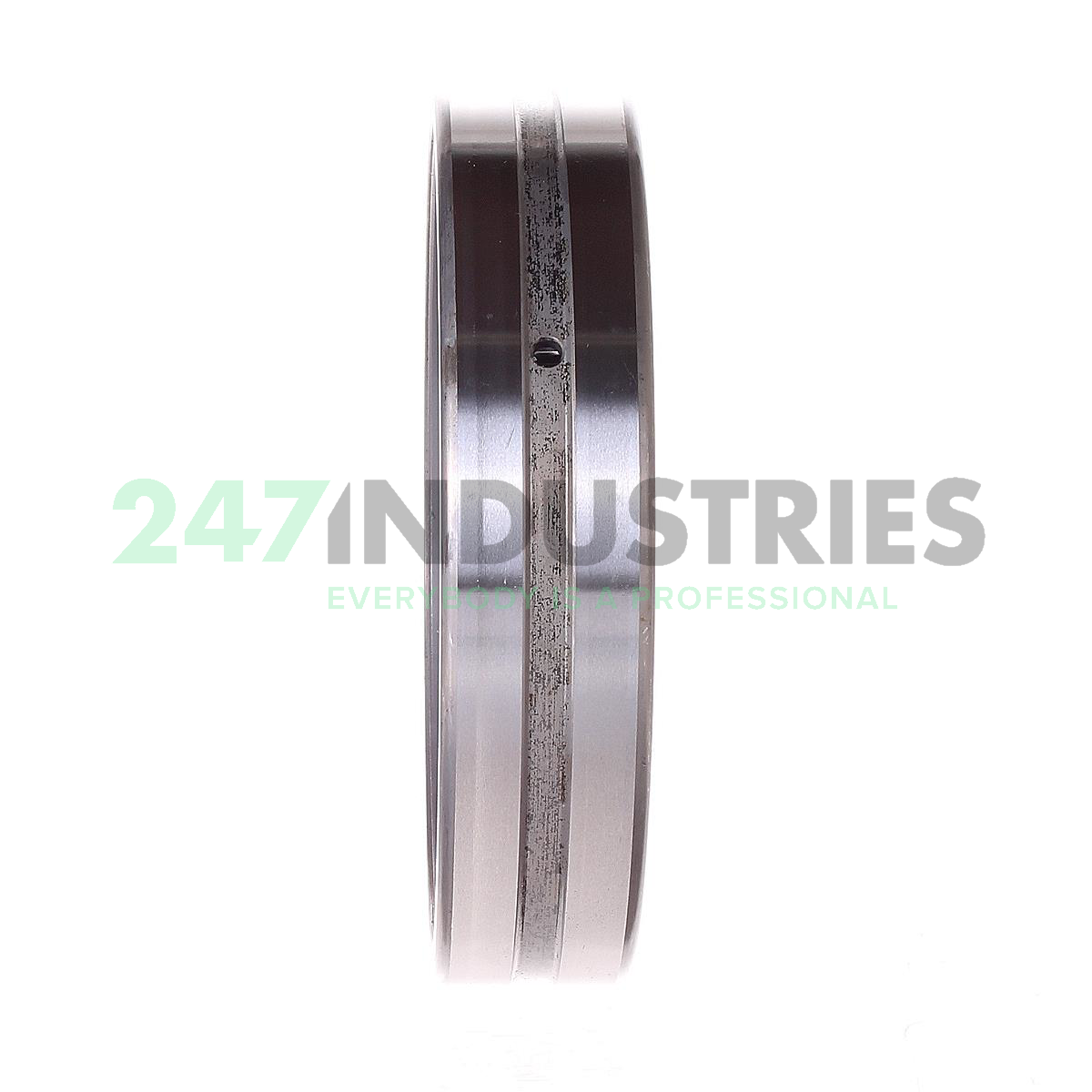

NK100/26-XL INA

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 120
3. Width (B) MM 26
4. Inner (d) Inch 3.937
5. Outer (D) Inch 4.7244
6. Width (B) Inch 1.0236
7. Under roller diameter (F w) mm 100

Suffix description

1. XL X-Life

Technical details

1. Availability 30 pcs
2. Brand INA
3. Item number NK100/26-XL INA
4. Also known as 0507547340000
   NB10012026
   NK100/26
   NK100/26A
   RNA10012026
   TAF10012026

5. EAN 4012802701104
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.481

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 146000
2. Radial Dynamic Load Rating Cr (N) 86000
3. Limiting speed (n G) 4600
4. Reference speed (n ϑr) 3150
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NK, light series
