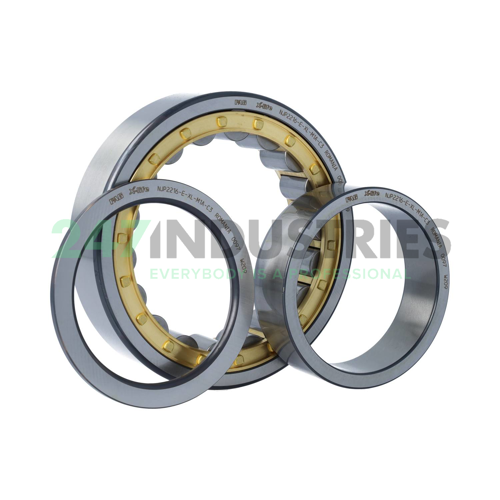

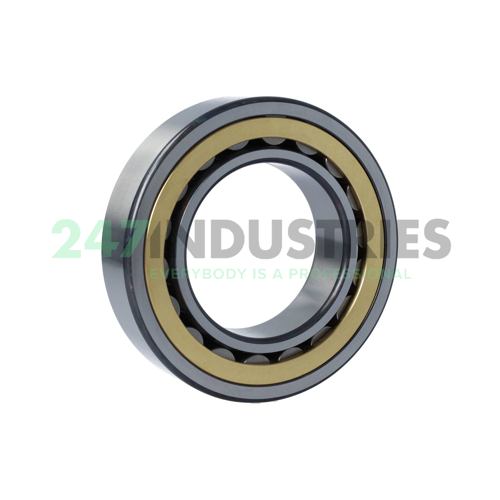

NJP2216-E-XL-M1A-C3 FAG

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 140
3. Width (B) MM 33
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.2992

Suffix description

1. E Increased Load Capacity
2. XL X-Life
3. M1A Solid Brass Cage, Two-Piece, Rib-Guided On Outer Ring
4. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 4 pcs
2. Brand FAG
3. Item number NJP2216-E-XL-M1A-C3 FAG
4. Also known as 0389085900030
   NJP2216-E-M1A-C3

5. EAN 4026677076052
6. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 2.28

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. ECLASS number 23-05-09-01
2. ECLASS2 number 23-05-09-01
