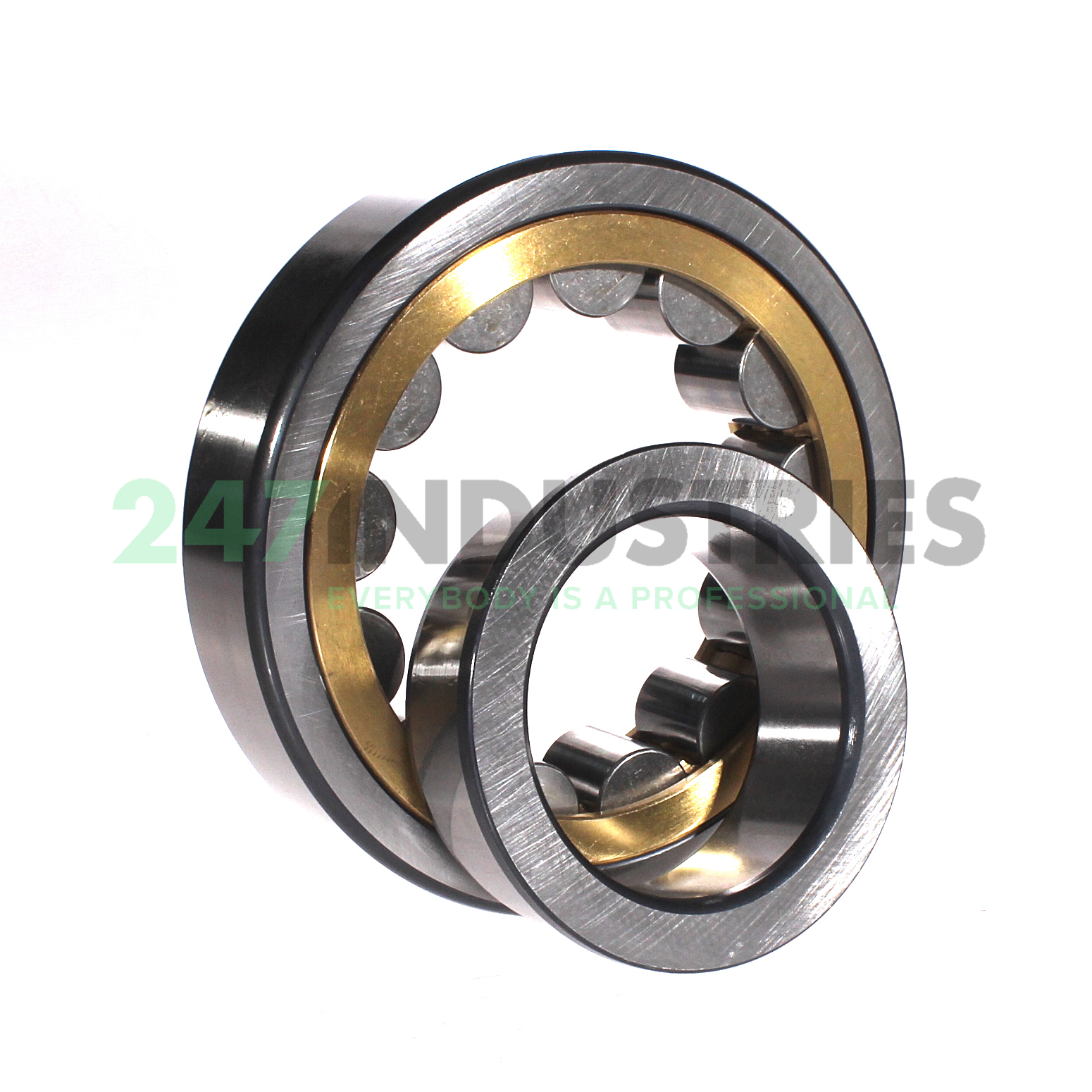

NJ315-E-XL-MPAX-C4 FAG

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 160
3. Width (B) MM 37
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 6.2992
6. Width (B) Inch 1.4567
7. Width (b) mm 37

Suffix description

1. E Increased Load Capacity
2. XL X-Life
3. MPAX Rib-Guided Single-Piece Solid Brass Cage Is A Further Development Of FAG Cage Types MPA And MP1A And Will Replace These Types Successively. It Has Greater Durability With Regard To Shock Loads And Vibrations Than It's Predecessors And It's Especially Well Suited For Applications Involving High Loads
4. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 6 pcs on Mon 16 Feb
2. Brand FAG
3. Item number NJ315-E-XL-MPAX-C4 FAG
4. Also known as 0801408230040
   NJ315-E-MPAX-C4

5. EAN 4054363048625
6. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 3.74

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type MA - Brass Cage, Centered on Outer Ring
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 265000
2. Limiting speed (n G) 7600
3. Reference speed (n ϑr) 4150
