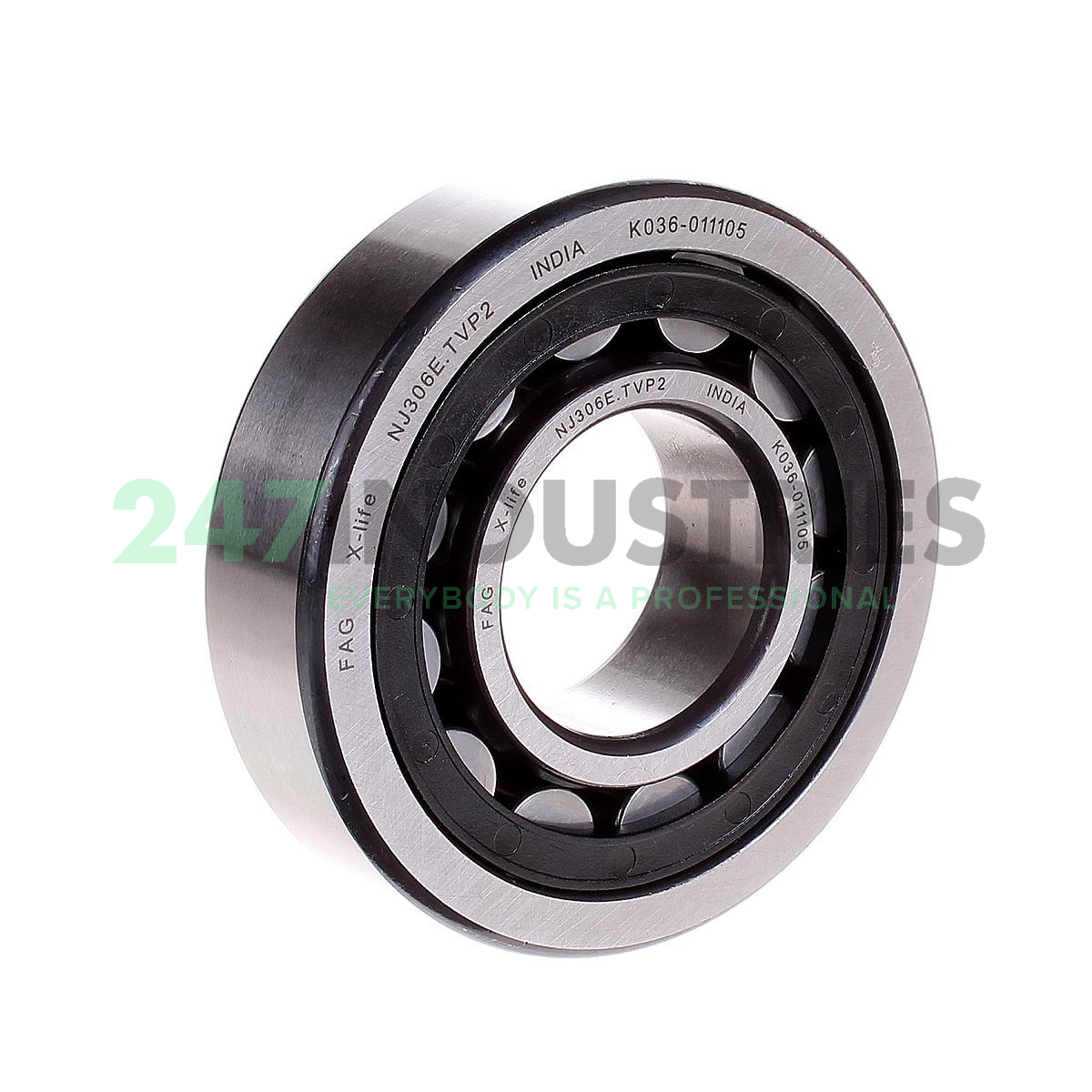

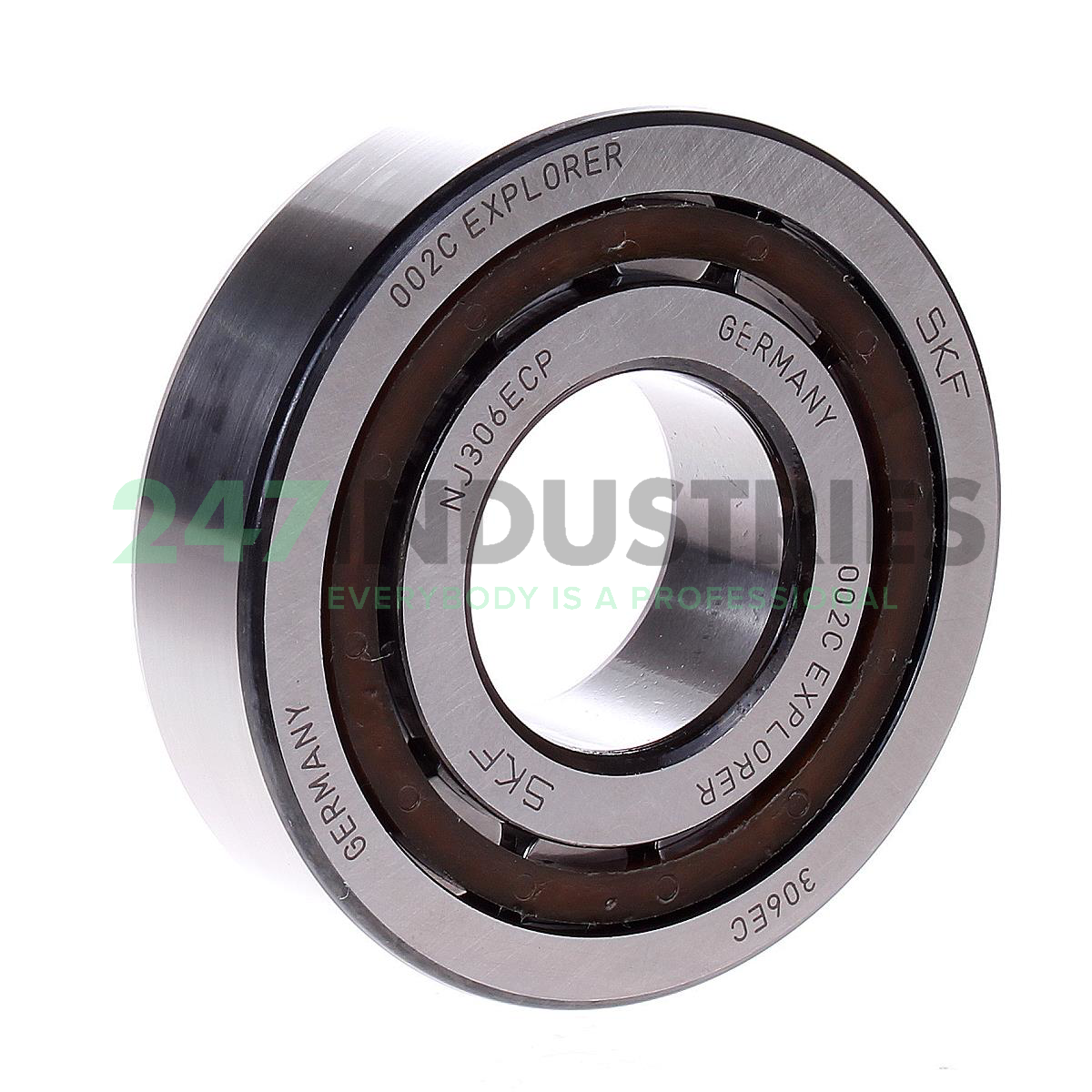

NJ306ECP Neutral

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 72
3. Width (B) MM 19
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.748

Suffix description

1. EC Single Row Cylindrical Roller Bearing With An Optimized Internal Design And With Modified Roller End/Flange Contact
2. P Injection Moulded Cage Of Glass Fibre Reinforced Polyamide 6,6, Rolling Element Centered

Technical details

1. Availability 0 pcs
2. Brand Neutral
3. Item number NJ306ECP Neutral

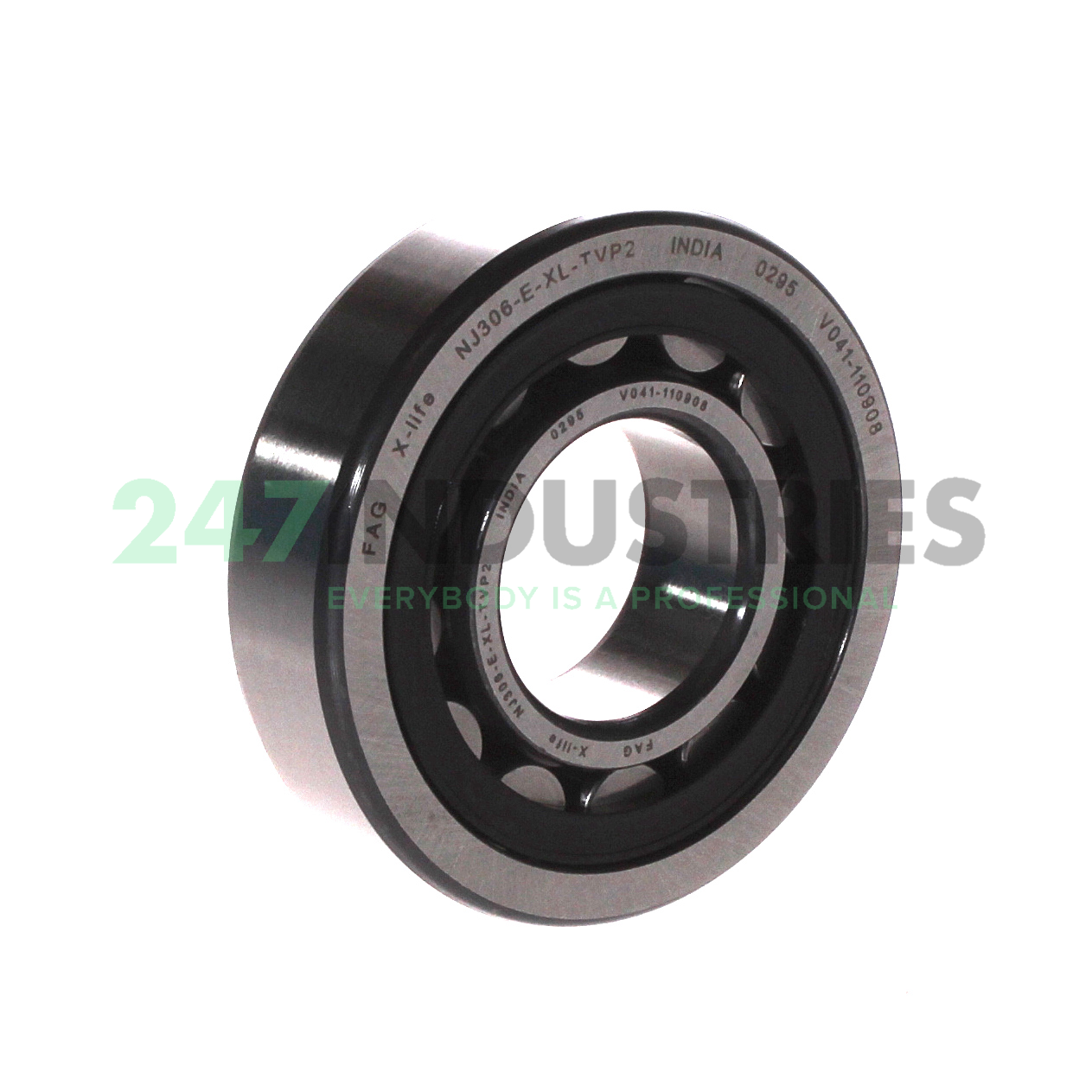

4. Also known as NJ306-E-TVP2
   NJ306-E-XL-TVP2

5. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.377

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
