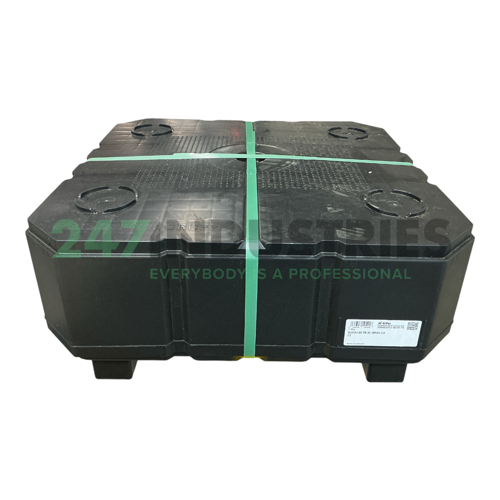

NJ2334-EX-TB-XL-MPAX-ILR-C3 FAG

Suffix description

1. EX Increased Capacity Design, Design Modified In Accordance With Standard (Parts From These Bearings Must Not Be Interchanged With Parts From Bearings Of The Same Size Of The Previous Design E)
2. TB The Rollers Have A Special Crowning On The Side Surface. Is Not Depending On The Cage Design. The Result Is A Better Lubrication In Between Roller And Rim
3. XL X-Life
4. MPAX Rib-Guided Single-Piece Solid Brass Cage Is A Further Development Of FAG Cage Types MPA And MP1A And Will Replace These Types Successively. It Has Greater Durability With Regard To Shock Loads And Vibrations Than It's Predecessors And It's Especially Well Suited For Applications Involving High Loads
5. ILR Increased Load Rating
6. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 3 pcs
2. Brand FAG

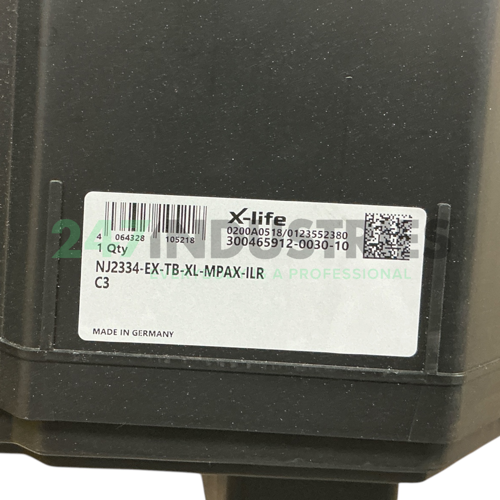

3. Item number NJ2334-EX-TB-XL-MPAX-ILR-C3 FAG
4. Also known as 3004659120030
   NJ2334-EX-TB-MPAX-ILR-C3

5. EAN 4064328105218
6. Category Cylindrical Roller Bearing Single Row

Product Properties

1. Radial Internal Play C3 Internal Play (Higher than Cn)
2. Precision Standard Precision
3. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
