NJ2210-E-XL-TVP2-J30PC FAG

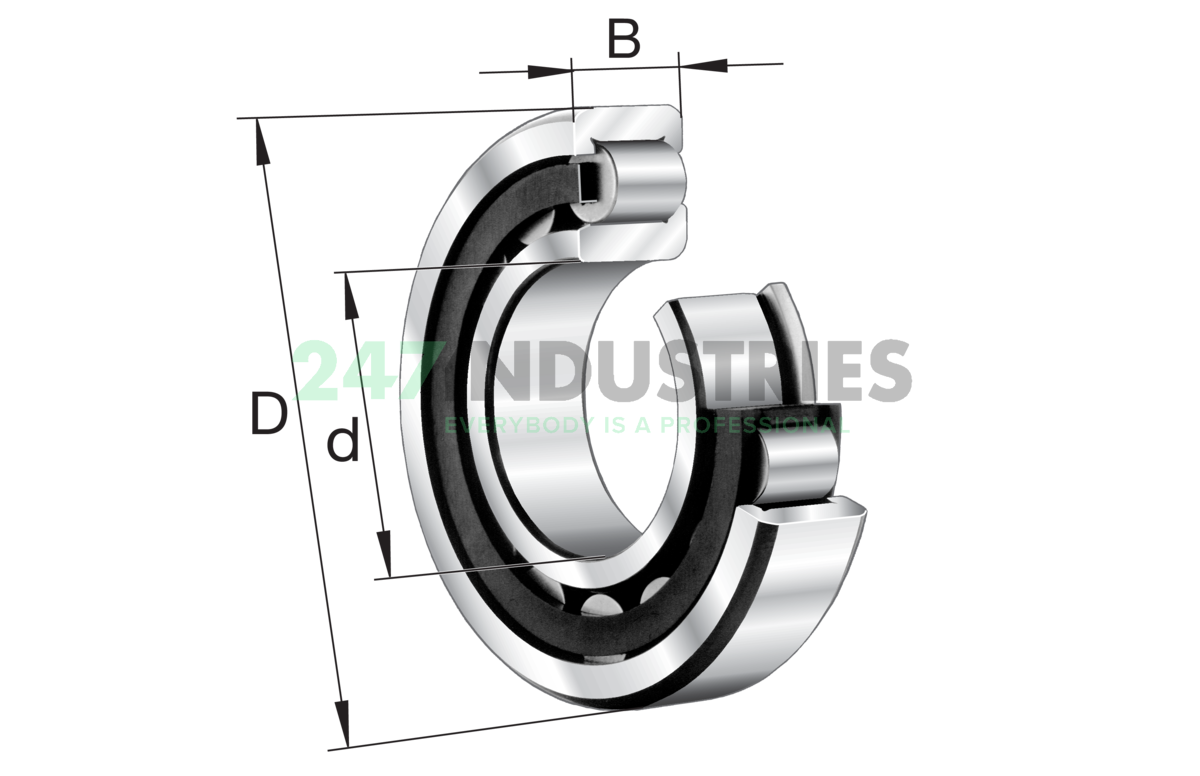

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055

Suffix description

1. E Increased Load Capacity
2. XL X-Life
3. TVP2 Solid Window Cage Made From Glass Fibre Reinforced Polyamide PA66. Roller Riding
4. J30PC Rings And Rolling Elements With Black Oxide Coating (Durotect B)

Technical details

1. Availability 25 pcs
2. Brand FAG
3. Item number NJ2210-E-XL-TVP2-J30PC FAG
4. Also known as 0781663810000
   NJ2210-E-TVP2-J30PC

5. EAN 4047643089265
6. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.585

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Durotect B Coating
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
