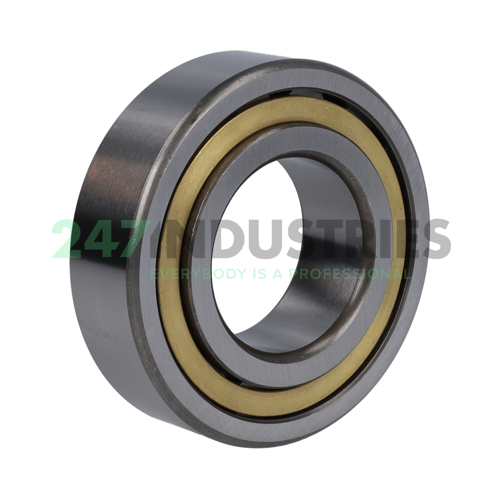

NJ2208EMC3 FBJ

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.9055

Suffix description

1. E Increased Load Capacity
2. M Machined Brass Cage, Located On The Rolling Elements
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs
2. Brand FBJ
3. Item number NJ2208EMC3 FBJ
4. Also known as NJ2208-E-M1-C3
   NJ2208-E-XL-M1-C3

5. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.552

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
