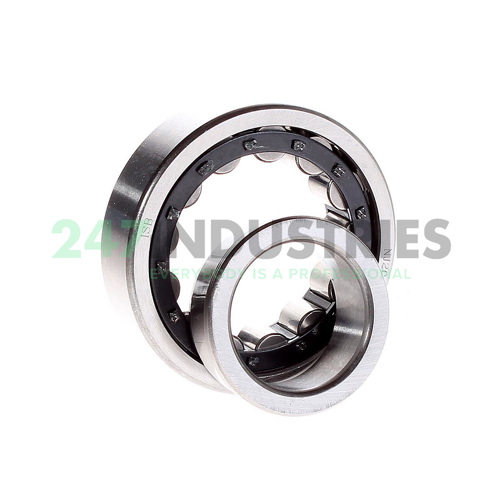

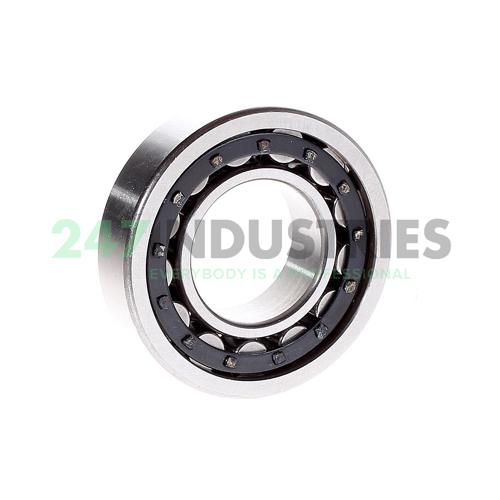

NJ206ECJ ISB

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 16
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.6299

Suffix description

1. EC Single Row Cylindrical Roller Bearing With An Optimized Internal Design And With Modified Roller End/Flange Contact
2. J Pressed Steel Cage, Rolling Element Centered, Unhardened

Technical details

1. Availability 0 pcs
2. Brand ISB
3. Item number NJ206ECJ ISB
4. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.206

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
