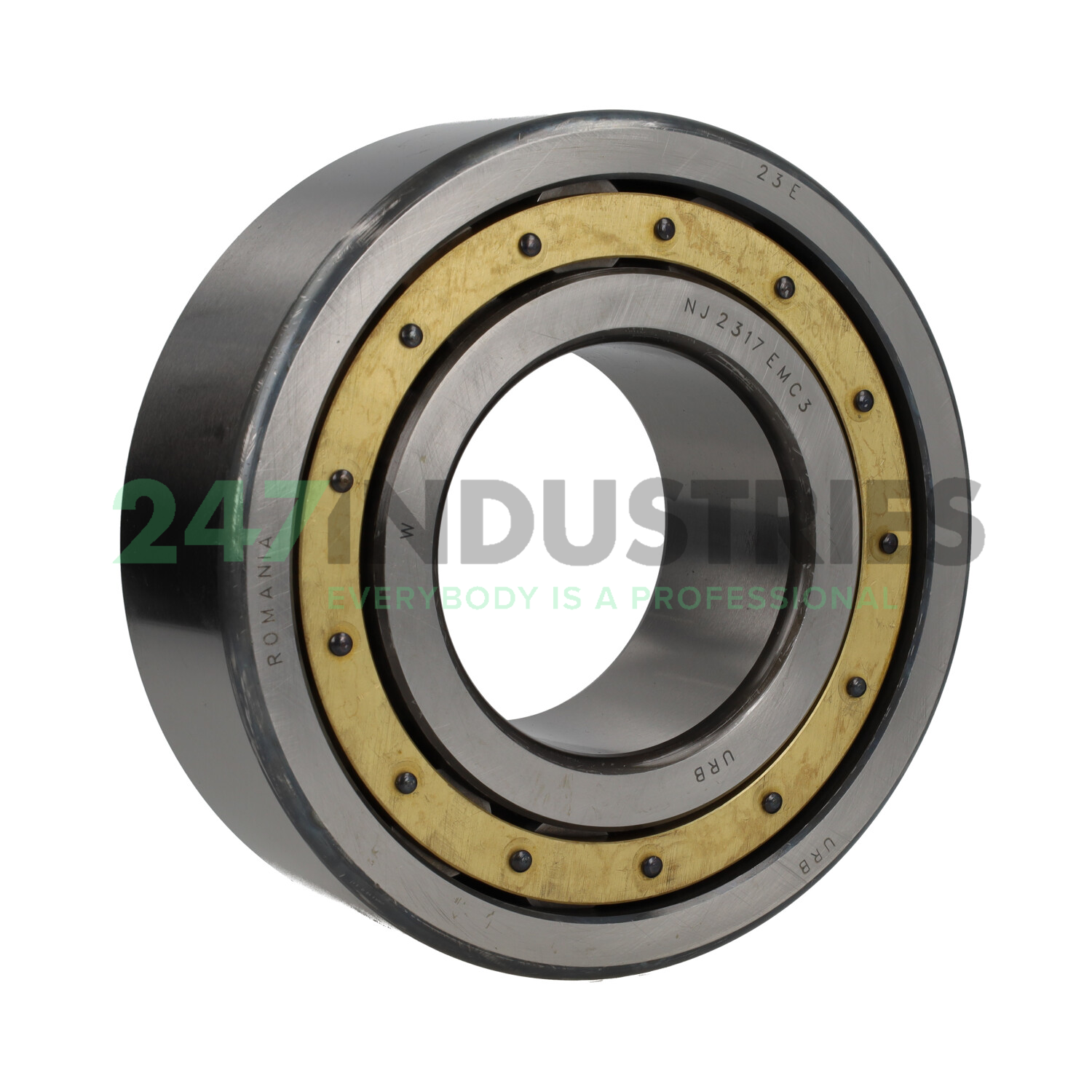

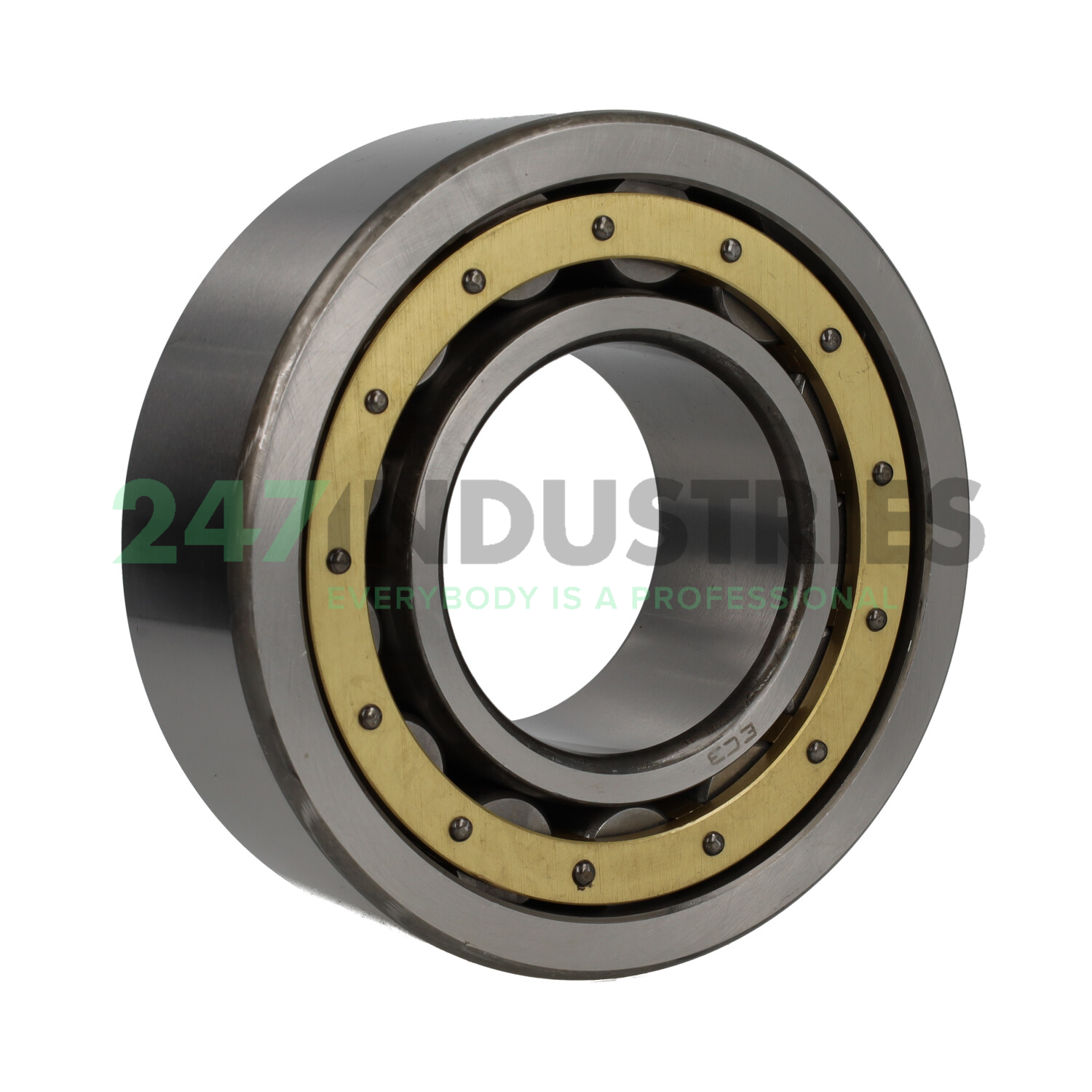

NJ 2317 EMC3 URB

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 180
3. Width (B) MM 60
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 7.0866
6. Width (B) Inch 2.3622

Suffix description

1. E Increased Load Capacity
2. M Machined Brass Cage, Located On The Rolling Elements
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 3 pcs
2. Brand URB
3. Item number NJ 2317 EMC3 URB
4. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 7.638

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
