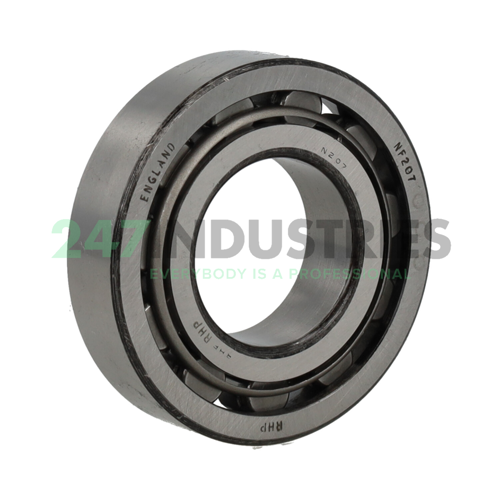

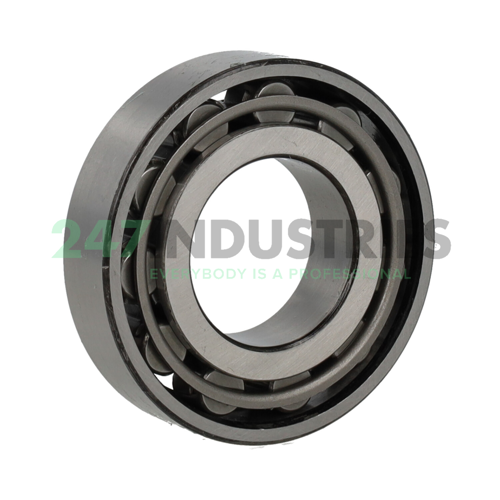

NF207JC3Q41N1 RR8C RHP

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 17
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.6693

Suffix description

1. J Steel Cage,
2. C3 Internal Clearance Greater Than Standard
3. Q41 Special Features
4. N1 One Locating Slot In Outside Edge Of Outer Ring (For Radial Location Of The Bearing)
5. RR8C Unknown

Technical details

1. Availability 1 pc
2. Brand RHP
3. Item number NF207JC3Q41N1 RR8C RHP
4. Also known as NF207JC3Q41N1

5. Category Cylindrical Roller Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.323

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification N1 - 1 Locking Groove in Outer Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Q4 - Special Features
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
