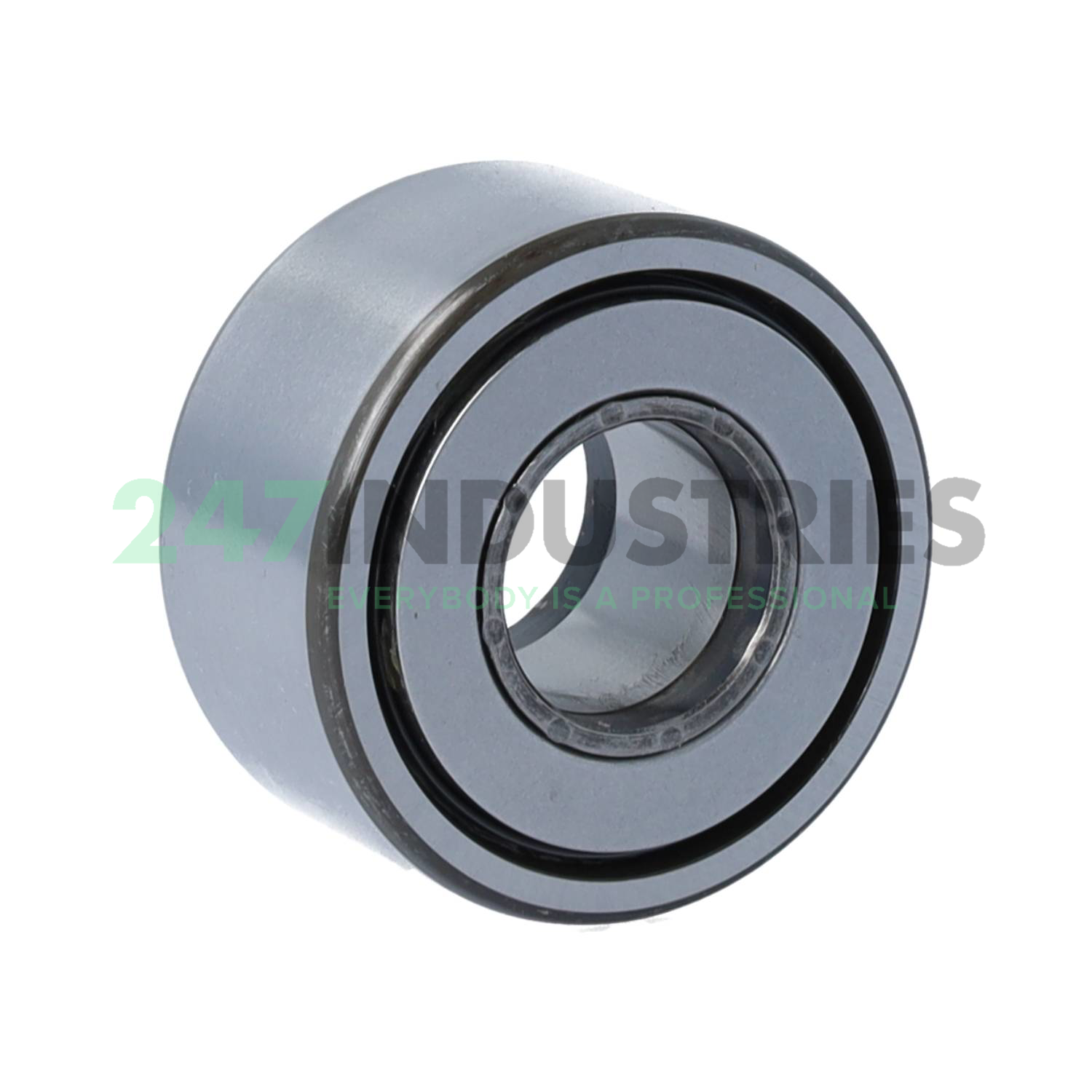

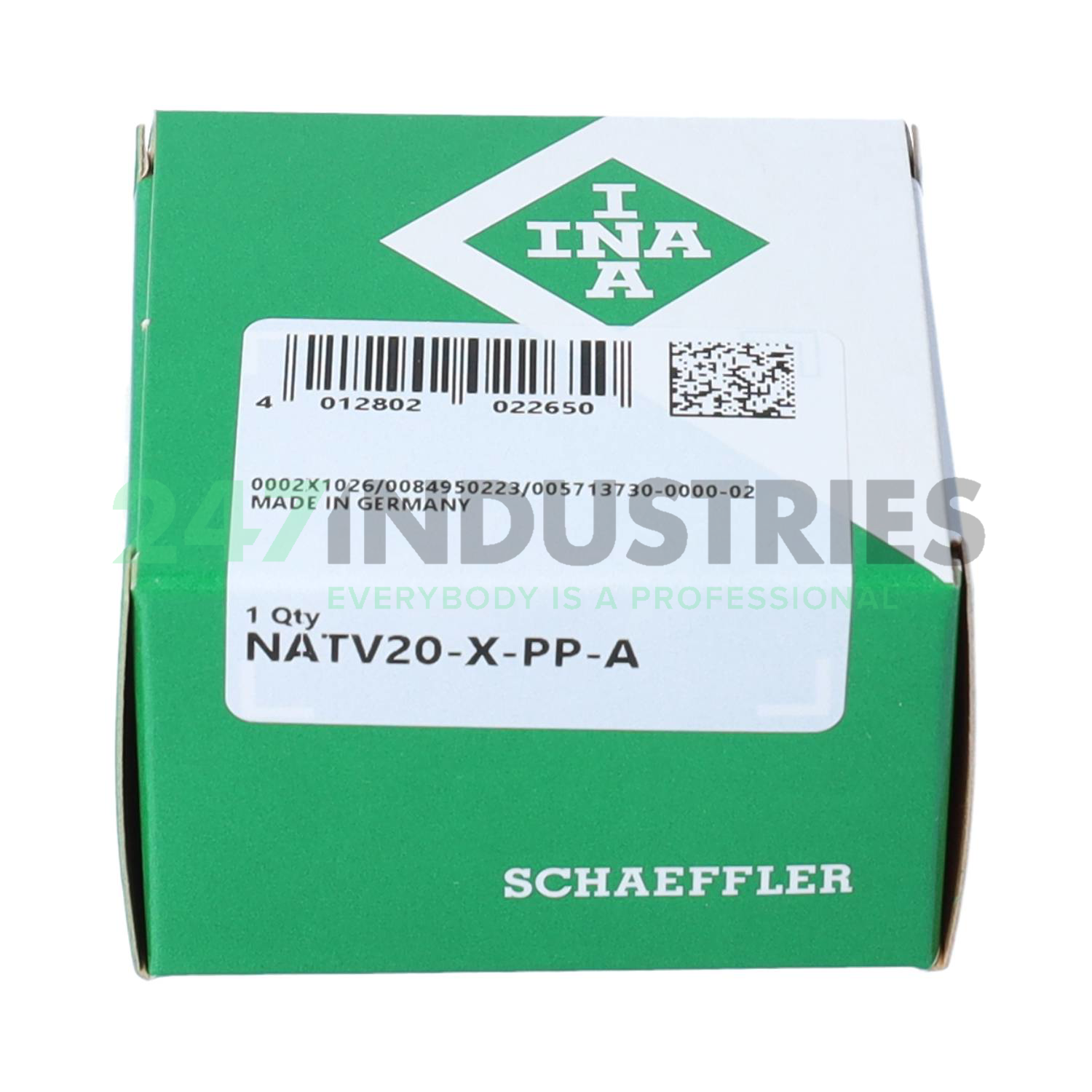

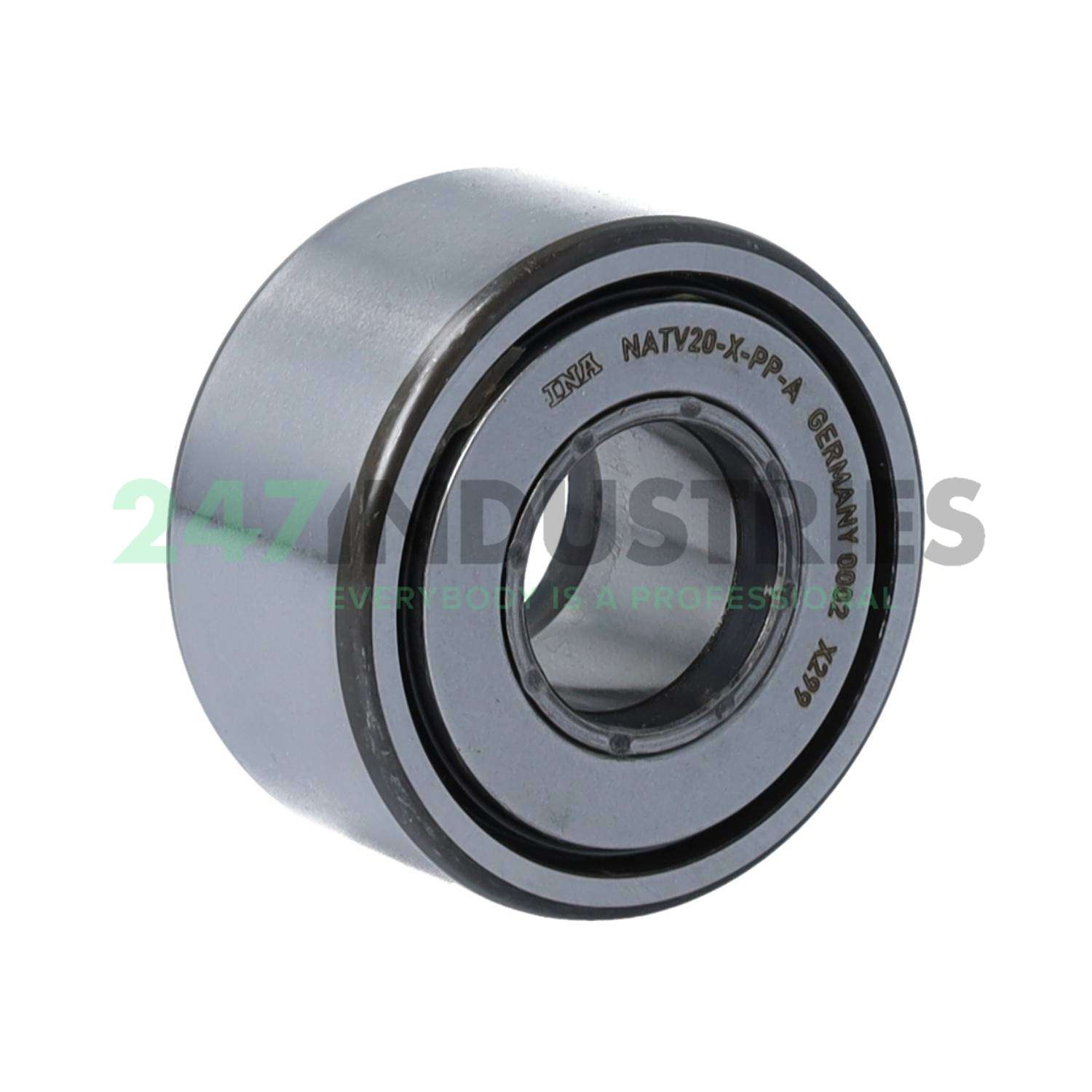

NATV20-X-PP-A INA

Yoke type full complement track roller with needle rollers

Stock
43 pcs in stock and ready for shipment
Brand INA
Article number NATV20-X-PP-A INA
Inside diameter 20mm
Outside diameter 47mm
Width 24mm
Product description

The NATV20-X-PP-A INA is a track roller or support roller with needle rollers. These rolling elements combine high load capacity with a compact design. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.

The NATV20-X-PP-A INA has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this track roller radially highly loadable. Full complement track rollers are also more shock-resistant than track rollers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of track rollers include conveyor systems, linear guidance systems, and cam mechanisms.

Help with this product

Downloads and links

Similar to: NATV20-X-PP-A INA

Product
Dimensions/Properties
Stock
Price ex VAT
NATV20PPX INA
NATV20PPX INA
Guaranteed same day shipment on orders placed before 18:00h (CET)
50,06 ex VAT
  • Inside diameter 20mm
  • Outside diameter 47mm
  • Width 24mm
NATV20PPX INA
Guaranteed same day shipment on orders placed before 18:00h (CET)

1 pc
50,06 ex VAT

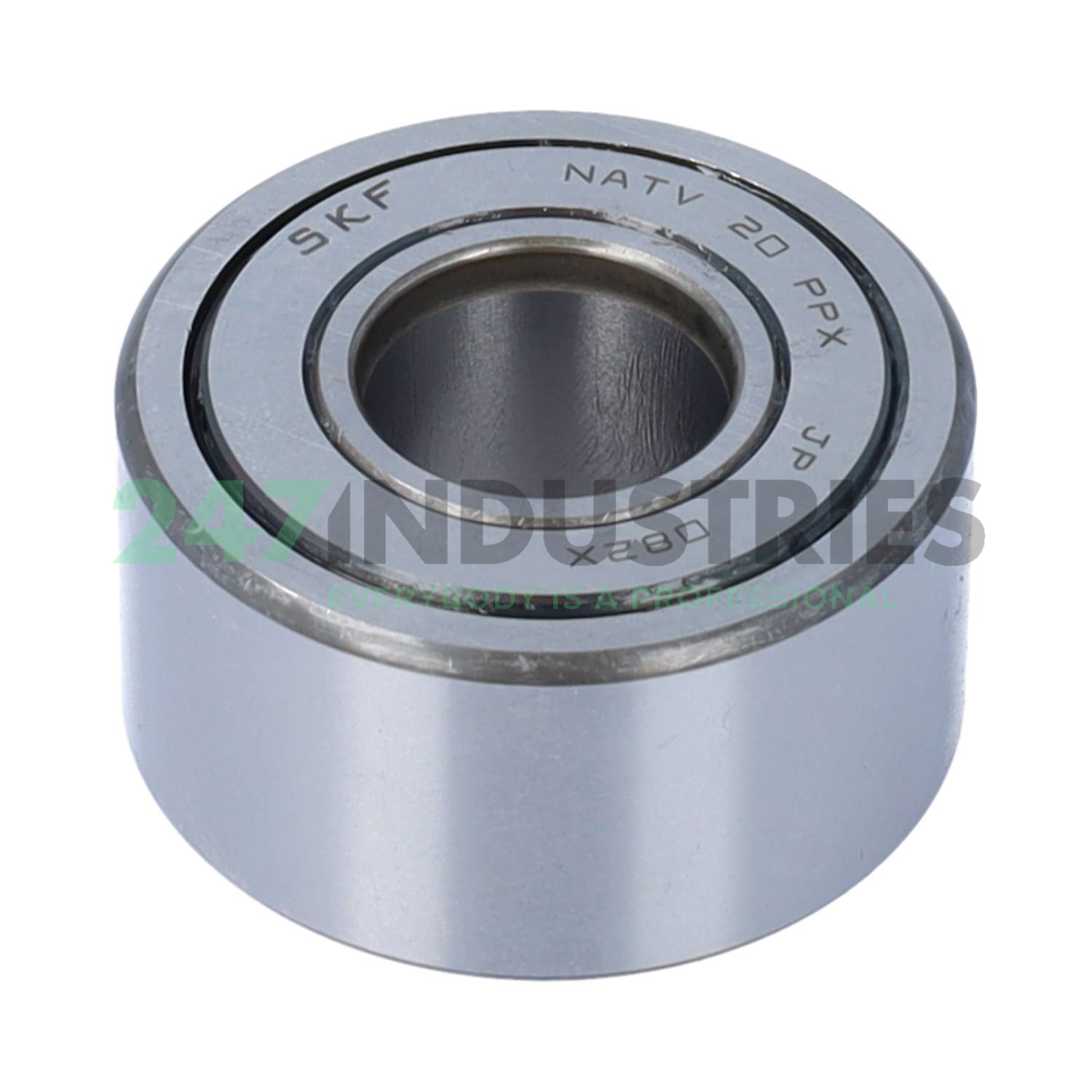

NATV20PPX SKF
NATV20PPX SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)
56,66 ex VAT
  • Inside diameter 20mm
  • Outside diameter 47mm
  • Width 24mm
NATV20PPX SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)

3 pcs
56,66 ex VAT

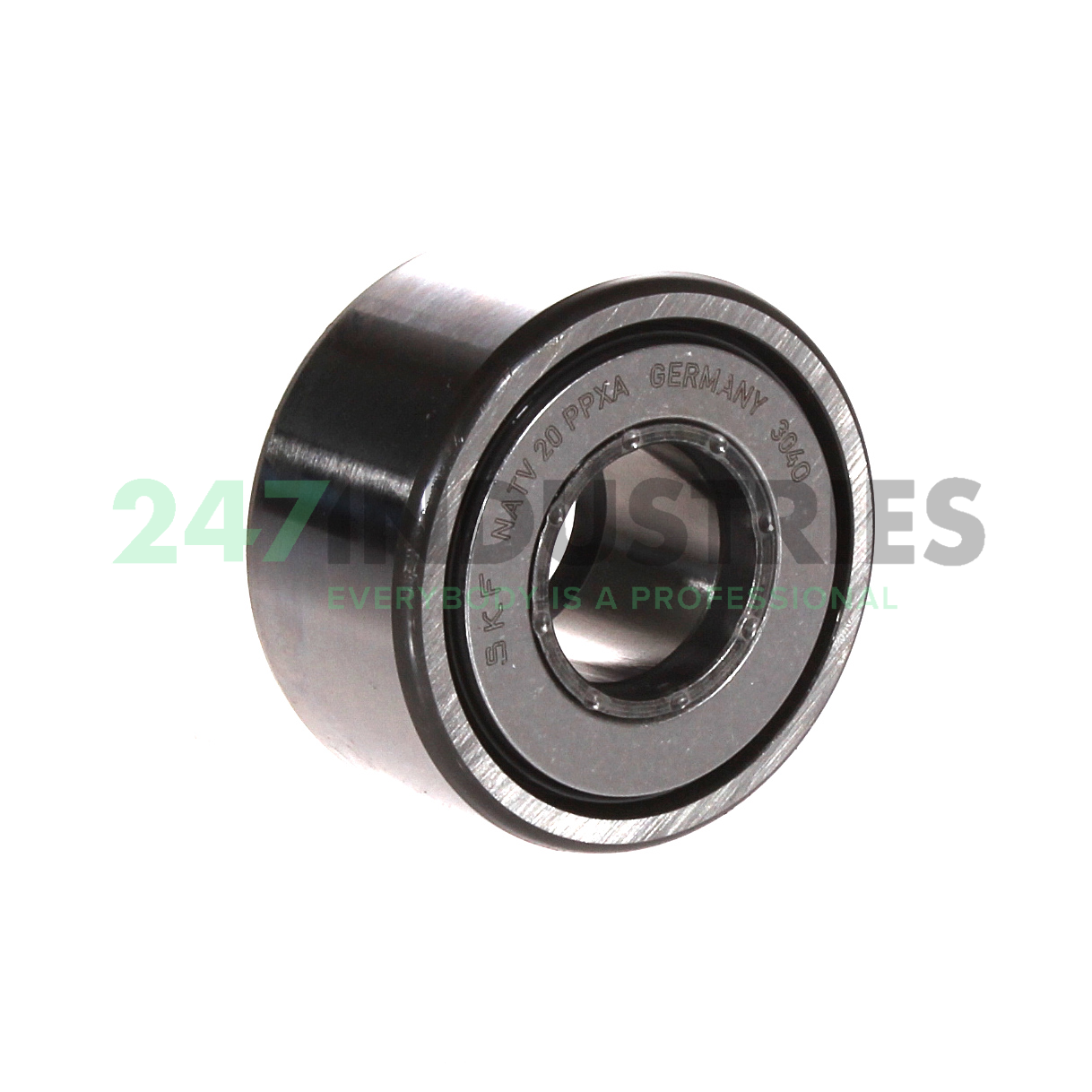

NATV20PPXA SKF
NATV20PPXA SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)
56,66 ex VAT
  • Inside diameter 20mm
  • Outside diameter 47mm
  • Width 24mm
NATV20PPXA SKF
Guaranteed same day shipment on orders placed before 18:00h (CET)

3 pcs
56,66 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 47
  3. Width (B) MM 24
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 1.8504
  6. Width (B) Inch 0.9449
  7. Width of the bearing (B) mm 25

Suffix description

  1. X Cylindrical Running Surface
  2. PP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded), Temperature Range -30 ~ 100℃
  3. A Alteration In Internal Construction. Identical To Old Notation

Technical details

  1. Availability 43 pcs
  2. Brand INA
  3. Item number NATV20-X-PP-A INA
  4. Also known as 0057137300000
  5. EAN 4012802022650
  6. Category Support Roller

Weight and Dimensions

  1. Weight (kg) 0.255

Product Properties

  1. Seal 2L - LS-seal at Both Sides
  2. Running Surface Cylindrical

Data from Schaeffler (medias)

  1. Basic dynamic load rating, radial (C r w) 20200
  2. Basic static load rating, radial (C 0r) 42500
  3. Speed on permanent grease lubrication (n D G) 1300
  4. ECLASS number 23-05-15-01
  5. ECLASS2 number 23-05-15-01
  6. Medias description Yoke type track rollers NATV..-PP, full complement needle roller set, with axial guidance, axial plain washers on both sides
