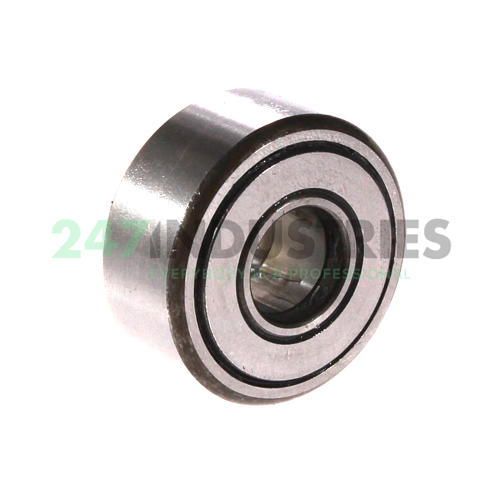

NATV12PPA SKF

Yoke type full complement track roller with needle rollers

Stock
29 pcs in stock and ready for shipment
Brand SKF
Article number NATV12PPA SKF
Inside diameter 12,00mm
Outside diameter 32,00mm
Width 14,00mm
Product description

The NATV12PPA SKF is a track roller or support roller with needle rollers. These rolling elements combine high load capacity with a compact design. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.

The NATV12PPA SKF has a full complement design. The absence of a cage allows for a greater number of rolling elements, making this track roller radially highly loadable. Full complement track rollers are also more shock-resistant than track rollers with a cage. However, the maximum rotational speed is lower than that of caged variants. Common applications of track rollers include conveyor systems, linear guidance systems, and cam mechanisms.

Read more Show less
Help with this product

Similar to: NATV12PPA SKF

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 12,00
  2. Outer (D) MM 32,00
  3. Width (B) MM 14,00
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 1.2598
  6. Width (B) Inch 0.5512

Suffix description

  1. PPA NATR Or NATV Design Support Roller With A Polyamide 66 Axial Sliding And Sealing Ring On Both Sides. Improved Crowned Profile Of The Outer Ring Running Surface, KR Design Cam Follower Have The Same Features As NATR Or NATV, Sizes 16 And 19 Have One Slot In The Head Of The Stud As Standard. Sizes ≥ 22 Have A Recessed Hexagon On Both Ends

Technical details

  1. Availability 29 pcs
  2. Brand SKF
  3. Item number NATV12PPA SKF
  4. EAN 7316571631486
  5. Category Support Roller

Weight and Dimensions

  1. Weight (kg) 0.072

Product Properties

  1. Seal 2L - LS-seal at Both Sides
  2. Running Surface Standard
