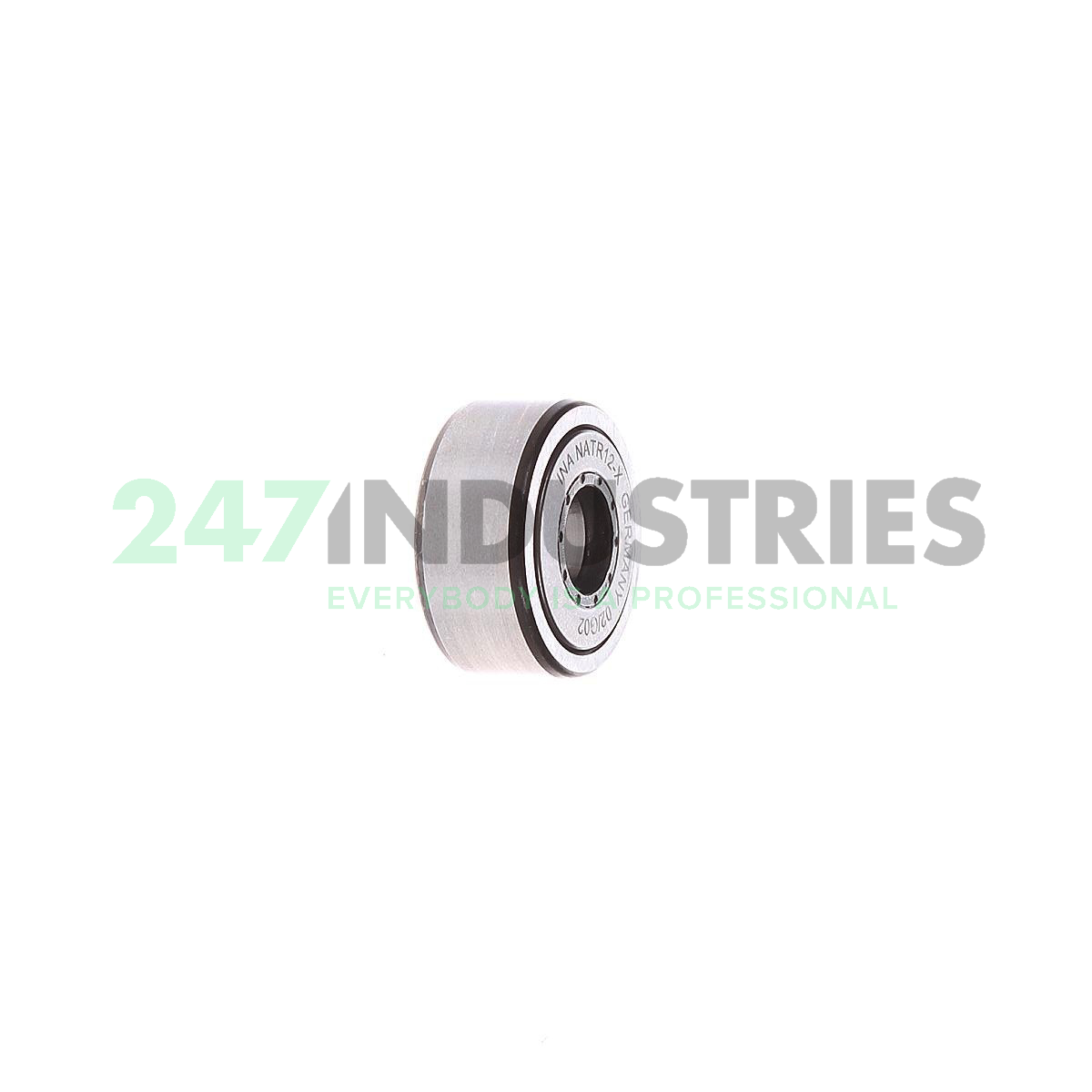

NATR12X INA

Yoke type track roller with needle rollers

Stock
3 pcs in stock and ready for shipment
Brand INA
Article number NATR12X INA
Inside diameter 12mm
Outside diameter 32mm
Width 14mm
Product description

The NATR12X INA is a track roller or support roller with needle rollers. These rolling elements combine high load capacity with a compact design. Track rollers are designed for use with various types of tracks. Thanks to a thick-walled outer ring, they can withstand high radial loads. Axial loads due to alignment errors or misalignment can be absorbed in both directions. Yoke type track rollers are suitable for mounting on a shaft. They are not mounted in a housing bore, but a flat (counter) track provides support.

The NATR12X INA is equipped with a cage that prevents the rolling elements from coming into contact with each other. This design allows for a controlled movement of the rolling elements. There is lower friction compared to full complement track rollers, allowing for higher rotational speeds and less heat generation. Common applications of support rollers include conveyor systems, linear guidance systems, and cam mechanisms.

Help with this product

Similar to: NATR12X INA

Product
Dimensions/Properties
Stock
Price ex VAT
NATR12-X INA
NATR12-X INA
Guaranteed same day shipment on orders placed before 18:00h (CET)
29,77 ex VAT
  • Inside diameter 12mm
  • Outside diameter 32mm
  • Width 14mm
NATR12-X INA
Guaranteed same day shipment on orders placed before 18:00h (CET)

1 pc
29,77 ex VAT

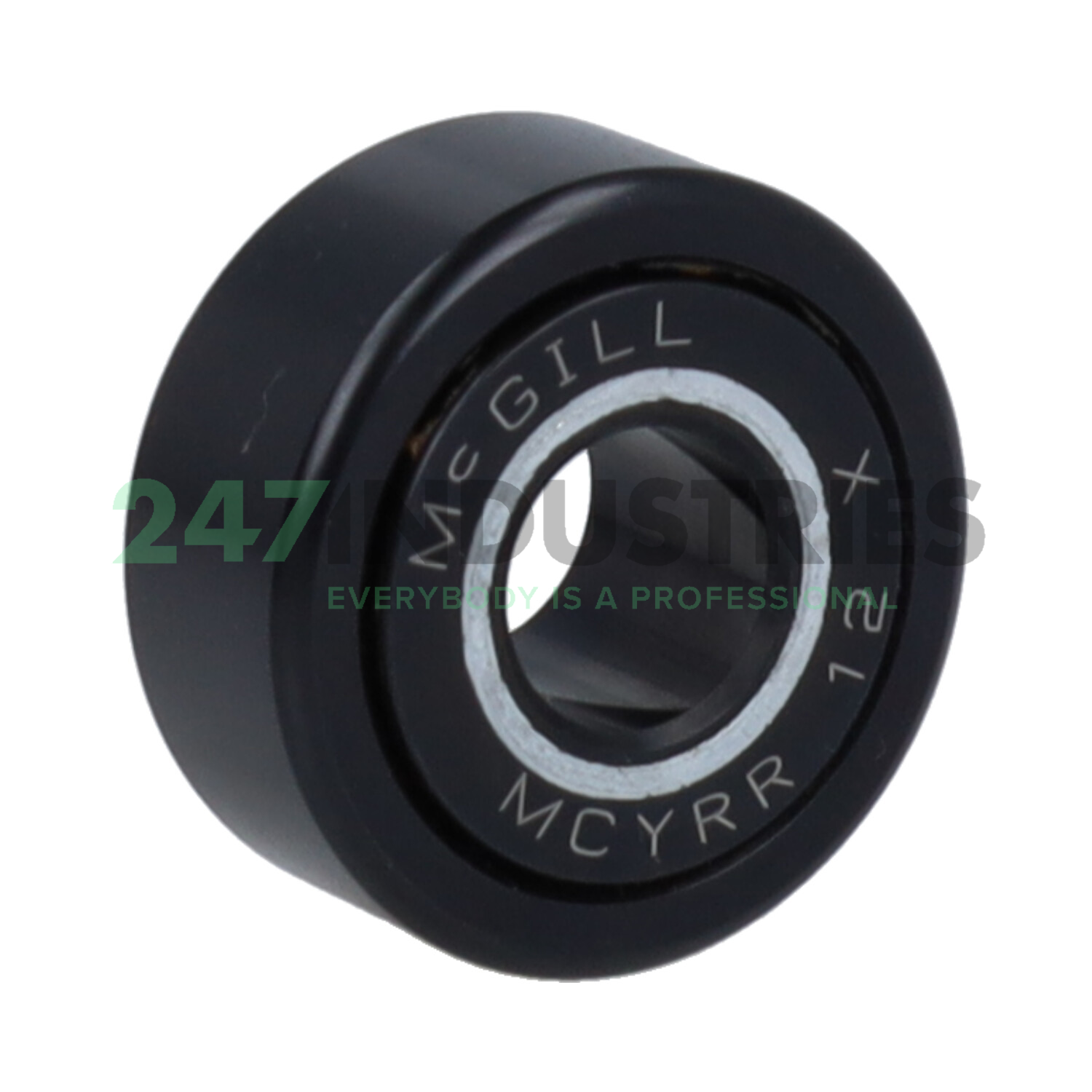

MCYRR12X McGill
MCYRR12X McGill
Guaranteed same day shipment on orders placed before 18:00h (CET)
30,24 ex VAT
MCYRR12X McGill
Guaranteed same day shipment on orders placed before 18:00h (CET)

160 pcs
30,24 ex VAT
NATR12DZ Torrington
NATR12DZ Torrington
Guaranteed same day shipment on orders placed before 18:00h (CET)
22,65 ex VAT
NATR12DZ Torrington
Guaranteed same day shipment on orders placed before 18:00h (CET)

15 pcs
22,65 ex VAT

Product specifications

All dimensions

  1. Inner (d) MM 12
  2. Outer (D) MM 32
  3. Width (B) MM 14
  4. Inner (d) Inch 0.4724
  5. Outer (D) Inch 1.2598
  6. Width (B) Inch 0.5512

Suffix description

  1. X Cylindrical Running Surface

Technical details

  1. Availability 3 pcs
  2. Brand INA
  3. Item number NATR12X INA
  4. Category Support Roller

Weight and Dimensions

  1. Weight (kg) 0.071

Product Properties

  1. Seal No Seal
  2. Running Surface Cylindrical
