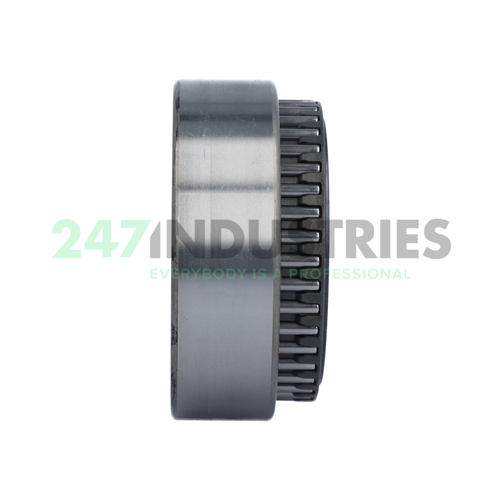

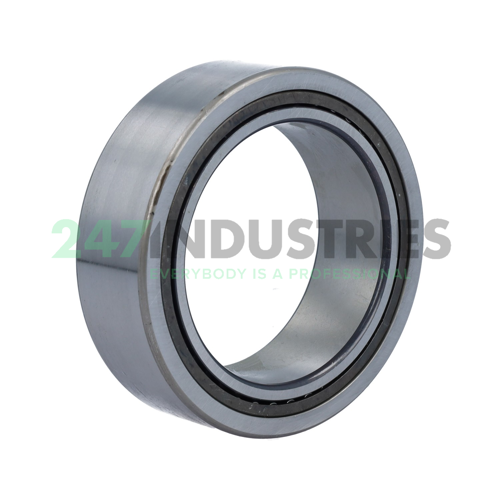

NAO70X100X30-XL INA

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 100
3. Width (B) MM 30
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.1811
7. Width (b) mm 30

Suffix description

1. XL X-Life

Technical details

1. Availability 8 pcs
2. Brand INA
3. Item number NAO70X100X30-XL INA
4. Also known as 0507781610000
   NAF7010030
   NAO70X100X30

5. EAN 4054363039364
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.82

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 176000
2. Radial Dynamic Load Rating Cr (N) 80000
3. Limiting speed (n G) 5800
4. Reference speed (n ϑr) 3350
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NAO, without ribs
