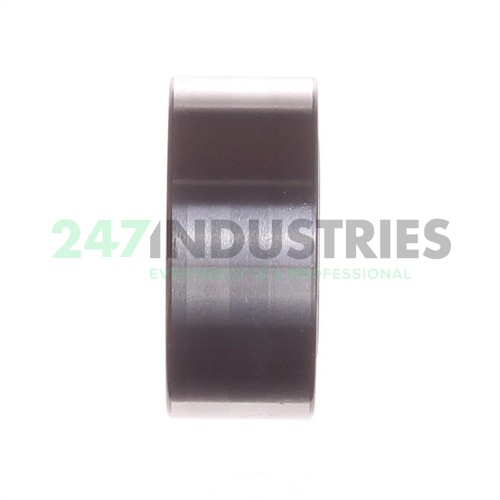

NAO20X37X16-XL INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 37
3. Width (B) MM 16
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.4567
6. Width (B) Inch 0.6299
7. Width (b) mm 16

Suffix description

1. XL X-Life

Technical details

1. Availability 9 pcs
2. Brand INA
3. Item number NAO20X37X16-XL INA
4. Also known as 0507780300000
   NAO20X37X16

5. EAN 4054364630638
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.162

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 27500
2. Radial Dynamic Load Rating Cr (N) 23500
3. Limiting speed (n G) 17200
4. Reference speed (n ϑr) 9100
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NAO, without ribs
