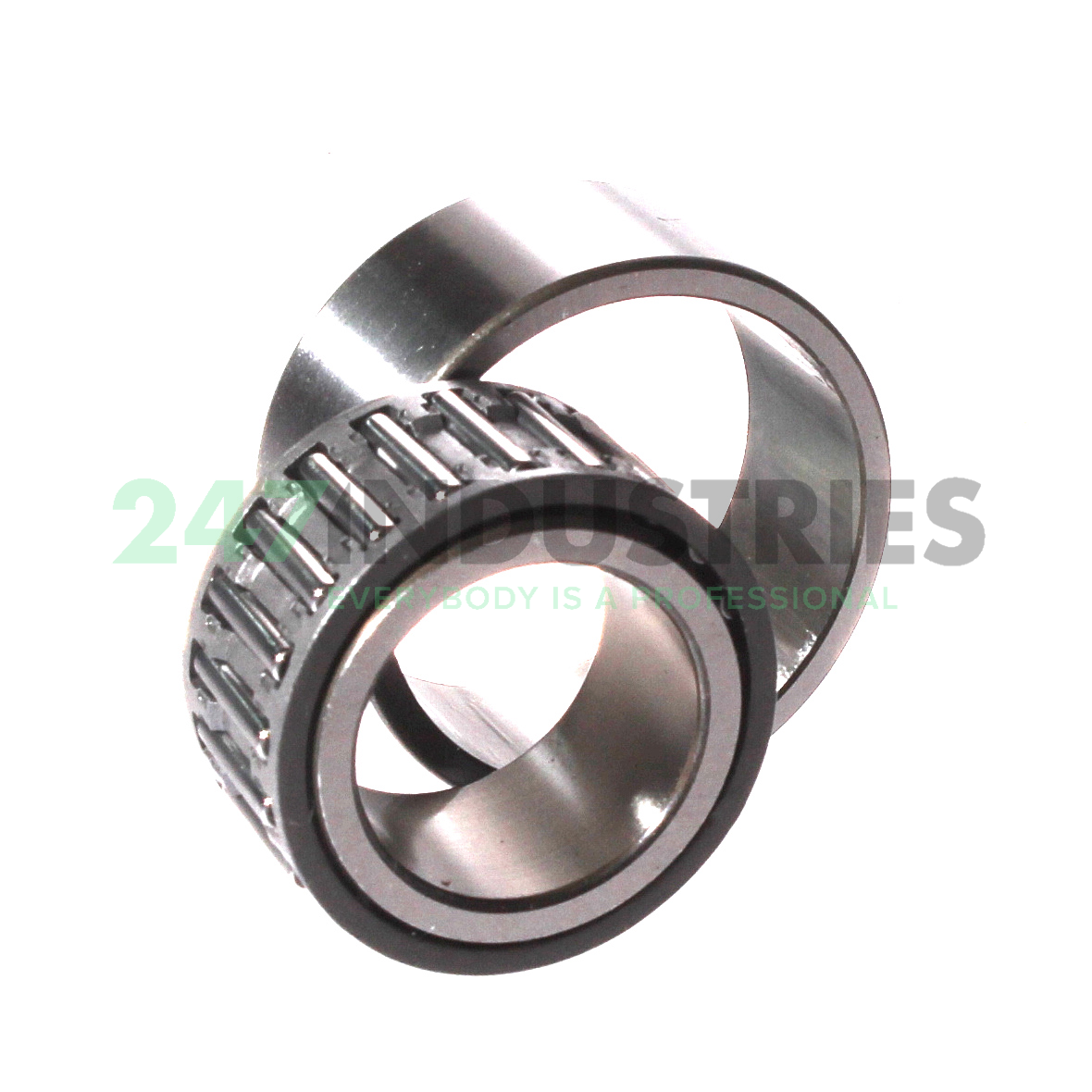

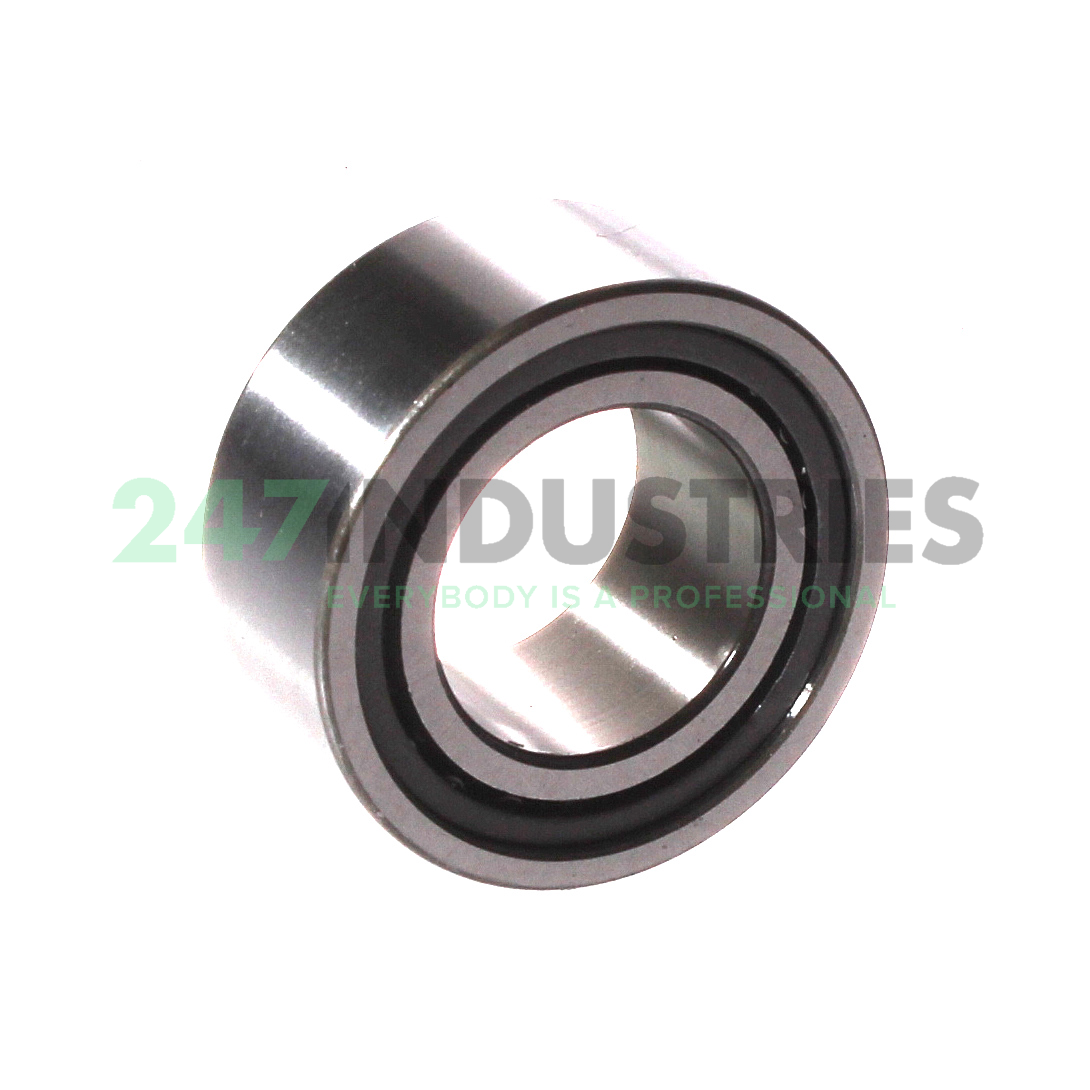

NAO17X30X13-XL INA

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 30
3. Width (B) MM 13
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.1811
6. Width (B) Inch 0.5118
7. Width (b) mm 13

Suffix description

1. XL X-Life

Technical details

1. Availability 71 pcs
2. Brand INA
3. Item number NAO17X30X13-XL INA
4. Also known as 0507780050000
   NAO17X30X13

5. EAN 4047643280532
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.042

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15900
2. Radial Dynamic Load Rating Cr (N) 11800
3. Limiting speed (n G) 20400
4. Reference speed (n ϑr) 11100
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NAO, without ribs
