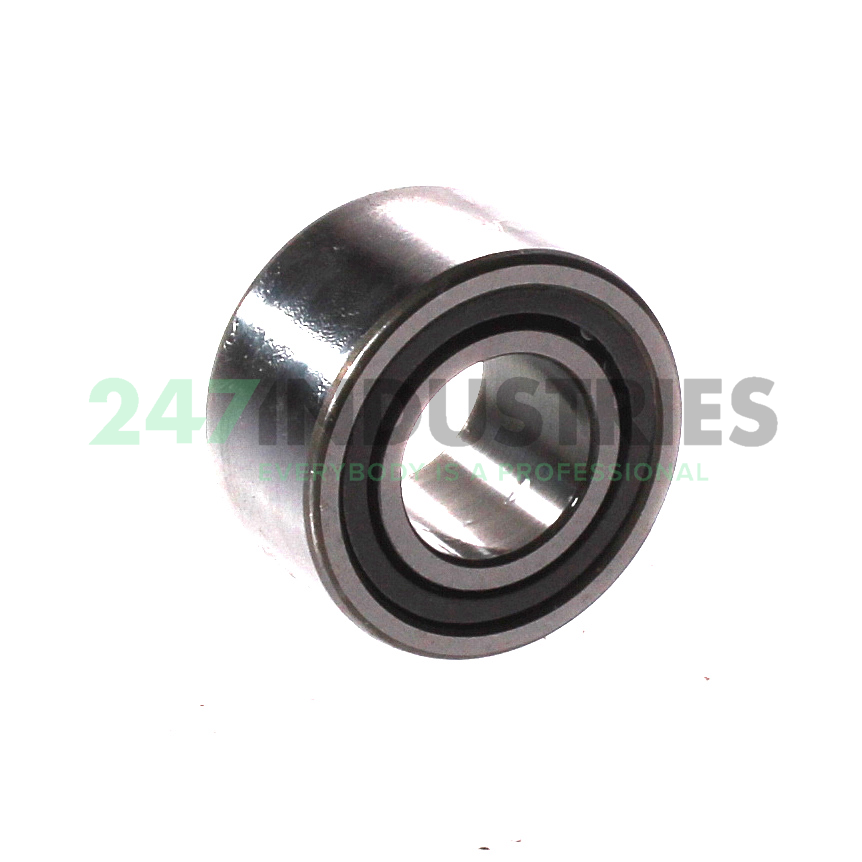

NAO12X24X13-XL INA

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 24
3. Width (B) MM 13
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.9449
6. Width (B) Inch 0.5118
7. Width (b) mm 13

Suffix description

1. XL X-Life

Technical details

1. Availability 907 pcs on Fri 10 Jul
2. Brand INA
3. Item number NAO12X24X13-XL INA
4. Also known as 0507779470000
   NAF122413
   NAO12X24X13

5. EAN 4012802735680
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.03

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11800
2. Radial Dynamic Load Rating Cr (N) 10100
3. Limiting speed (n G) 23600
4. Reference speed (n ϑr) 15000
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NAO, without ribs
