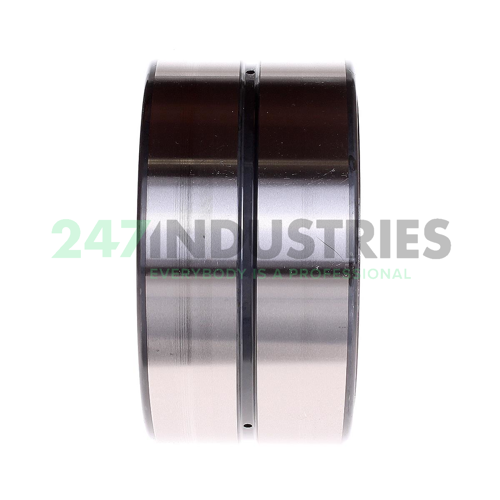

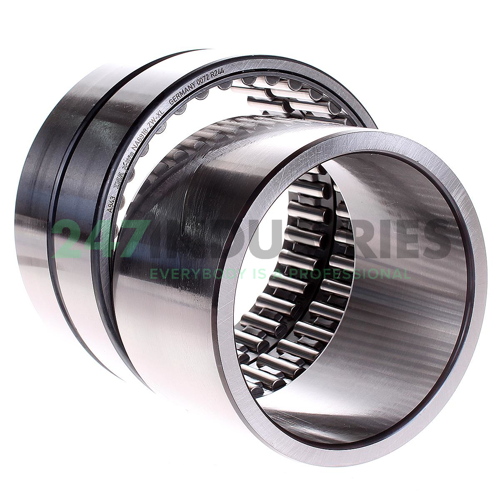

NA6918-ZW-XL INA

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 125
3. Width (B) MM 63
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 4.9213
6. Width (B) Inch 2.4803
7. Width (b) mm 63

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. XL X-Life

Technical details

1. Availability 8 pcs
2. Brand INA
3. Item number NA6918-ZW-XL INA
4. Also known as 0507443050000
   NA6918-ZW

5. EAN 4047643205047
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 2.64

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 425000
2. Radial Dynamic Load Rating Cr (N) 195000
3. Limiting speed (n G) 4400
4. Reference speed (n ϑr) 2550
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NA69..-ZW, Dimension series 69, double row
