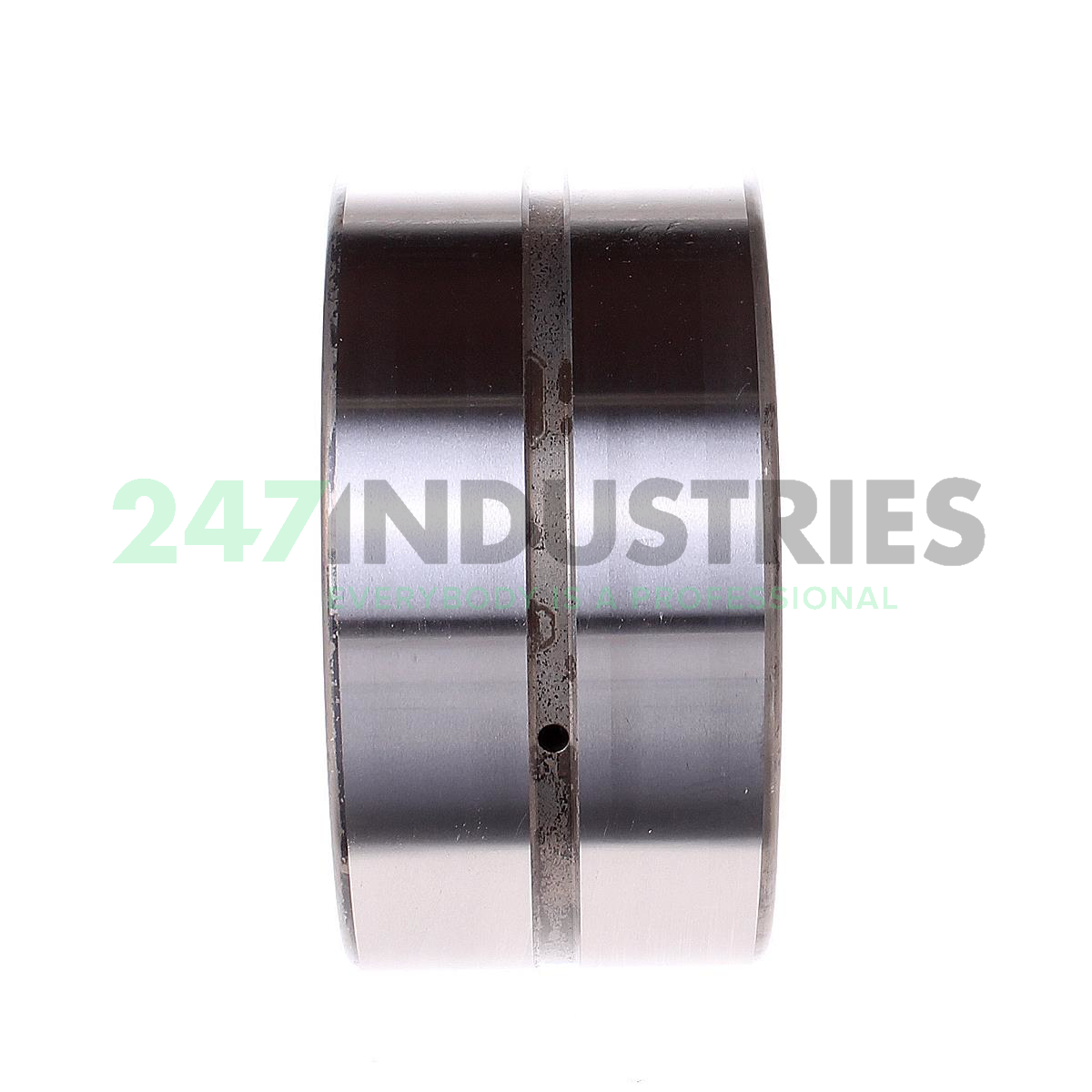

NA6915-ZW-XL-C3 INA

All dimensions

1. Inner (d) MM 75,00
2. Outer (D) MM 105,00
3. Width (B) MM 54,00
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 4.1339
6. Width (B) Inch 2.1260
7. Width (b) mm 54,00

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. XL X-Life
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 49 pcs
2. Brand INA
3. Item number NA6915-ZW-XL-C3 INA
4. Also known as 0507442750030
   NA6915-ZW-C3

5. EAN 4012802702866
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 1.45

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "275000.0000"
2. Limiting speed (n G) "5400.0000"
3. Reference speed (n ϑr) "3150.0000"
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07
