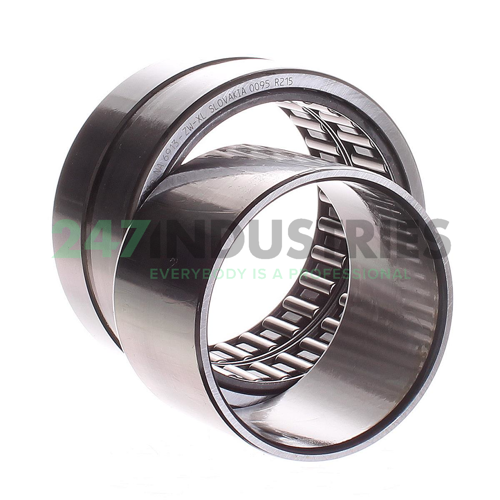

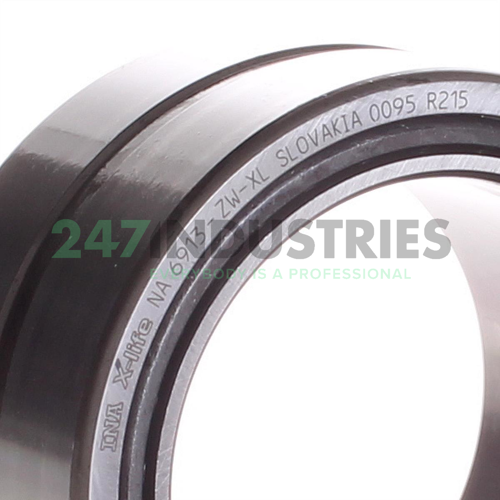

NA6913-ZW-XL INA

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 90
3. Width (B) MM 45
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.7717
7. Width (b) mm 45

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. XL X-Life

Technical details

1. Availability 34 pcs
2. Brand INA
3. Item number NA6913-ZW-XL INA
4. Also known as 0507442590000
   NA6913-ZW

5. EAN 4012802702682
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.833

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 198000
2. Radial Dynamic Load Rating Cr (N) 108000
3. Limiting speed (n G) 6300
4. Reference speed (n ϑr) 3550
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NA69..-ZW, Dimension series 69, double row

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
