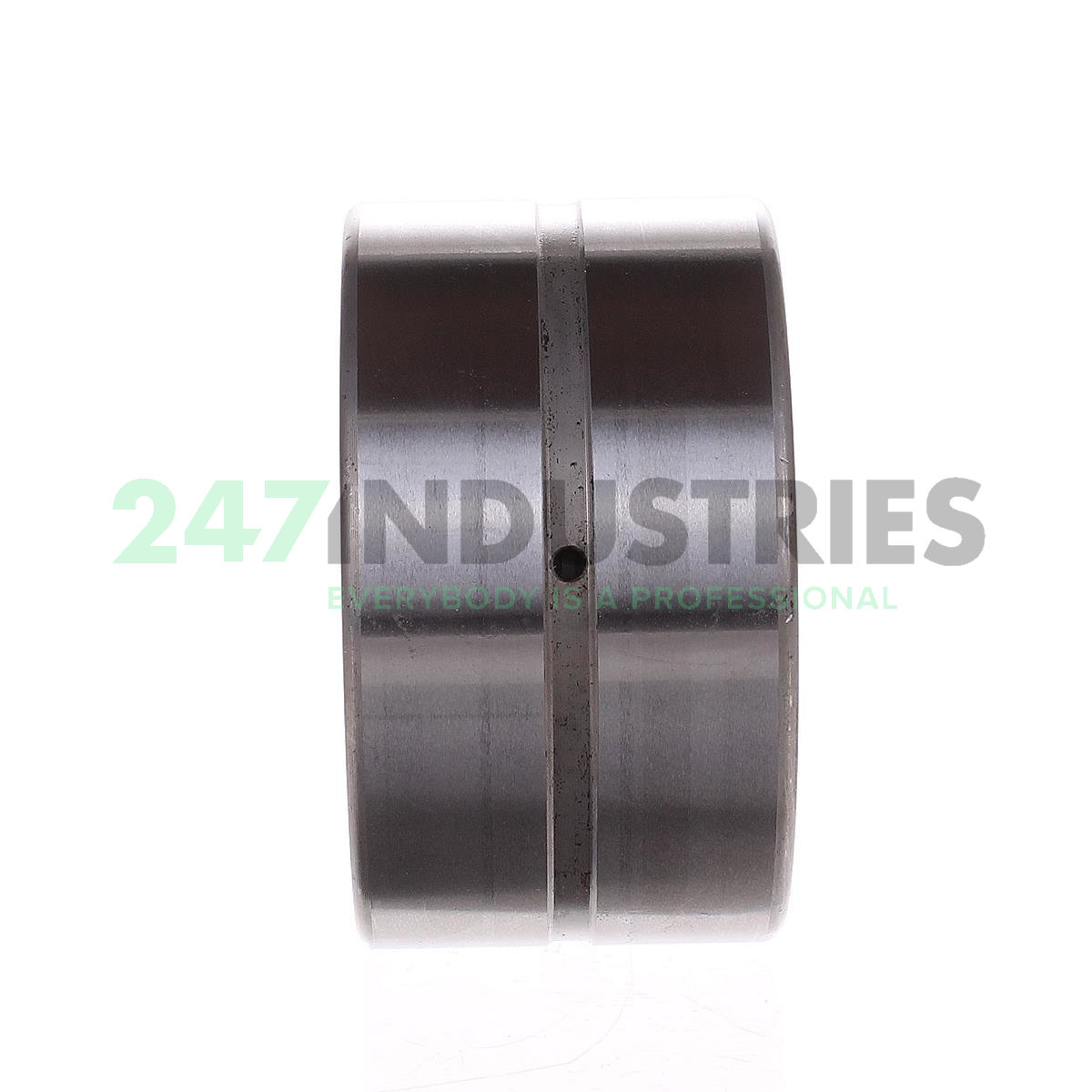

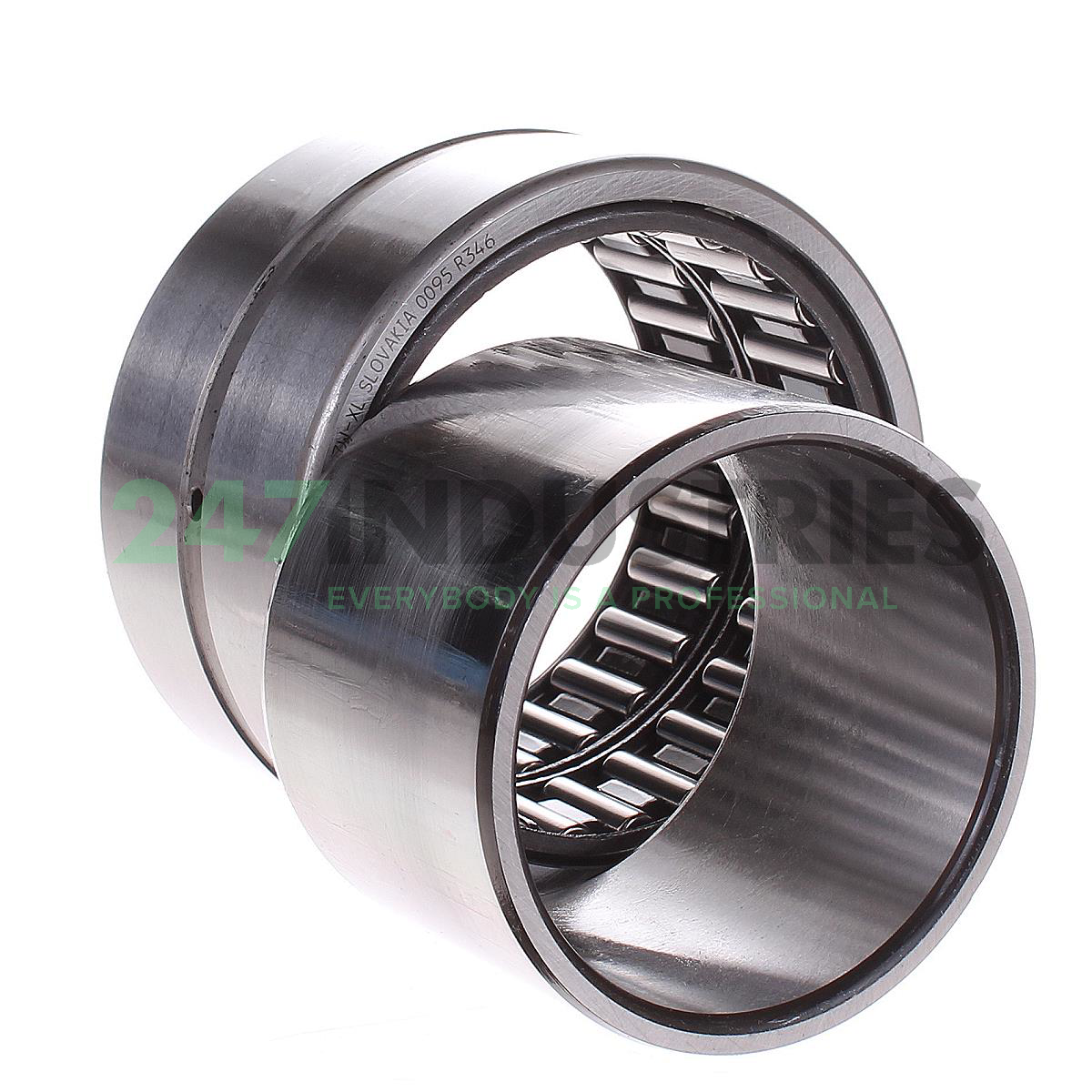

NA6911-ZW-XL INA

All dimensions

1. Inner (d) MM 55,00
2. Outer (D) MM 80,00
3. Width (B) MM 45,00
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.7717
7. Width (b) mm 45,00

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. XL X-Life

Technical details

1. Availability 23 pcs
2. Brand INA
3. Item number NA6911-ZW-XL INA
4. Also known as 0507442320000
   NA6911-ZW

5. EAN 4012802273007
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.4252

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 176000
2. Radial Dynamic Load Rating Cr (N) 102000
3. Basic static load rating, radial (C 0r) "176000.0000"
4. Limiting speed (n G) "7200.0000"
5. Reference speed (n ϑr) "4000.0000"
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NA69..-ZW, Dimension series 69, double row
