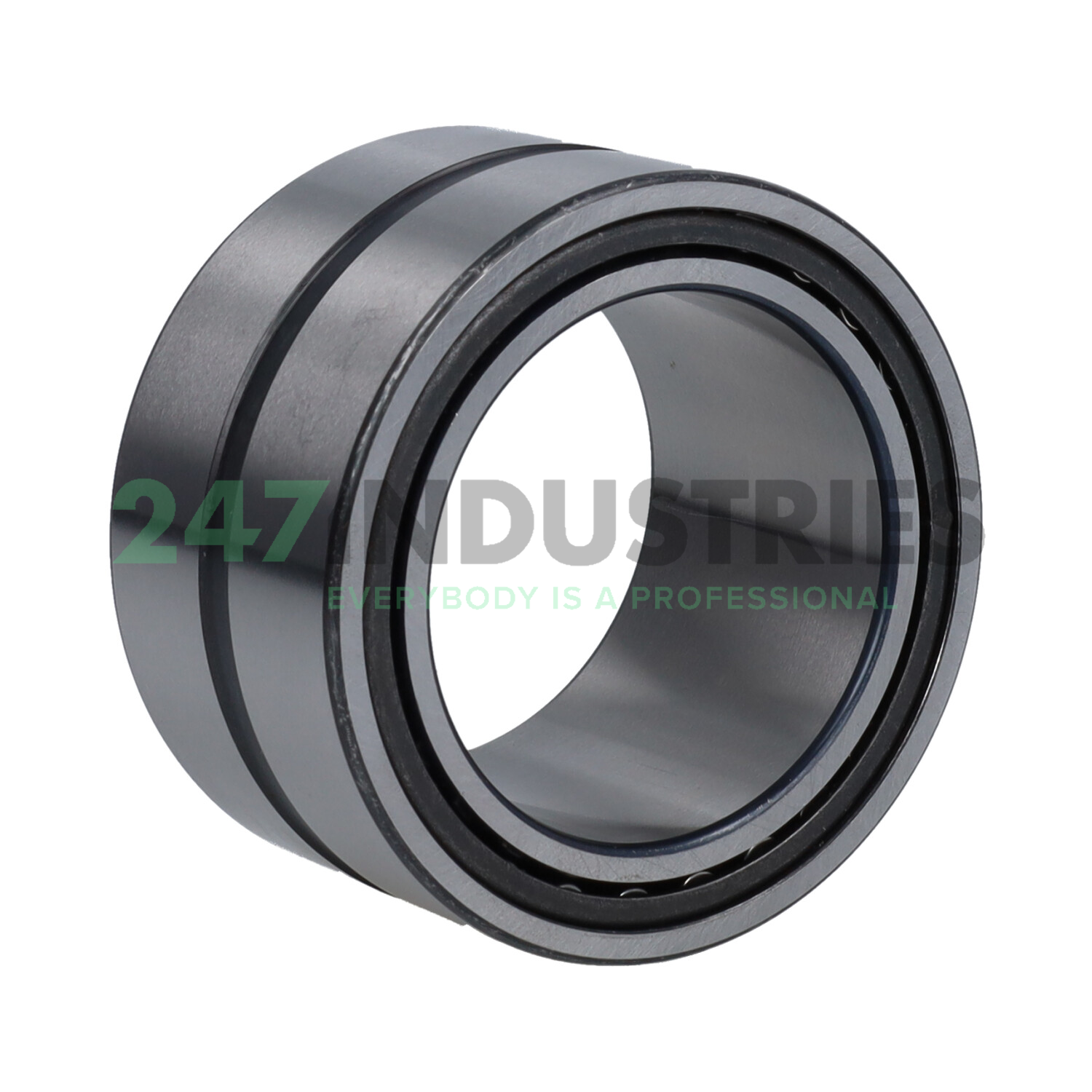

NA6910-ZW-S3-XL-C4 INA

All dimensions

1. Inner (d) MM 50,00
2. Outer (D) MM 72,00
3. Width (B) MM 40,00
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.5748
7. Width (b) mm 40,00

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. S3 Bearing Rings Or Washers Dimensionally Stabilized For Use At Operating Temperatures Up To +300°C (572°F)
3. XL X-Life
4. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 4 pcs
2. Brand INA
3. Item number NA6910-ZW-S3-XL-C4 INA
4. Also known as 0509441000040
   NA6910-ZW-S3-C4

5. EAN 4012802704402
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.515

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "139000.0000"
2. Limiting speed (n G) "7800.0000"
3. Reference speed (n ϑr) "4200.0000"
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
