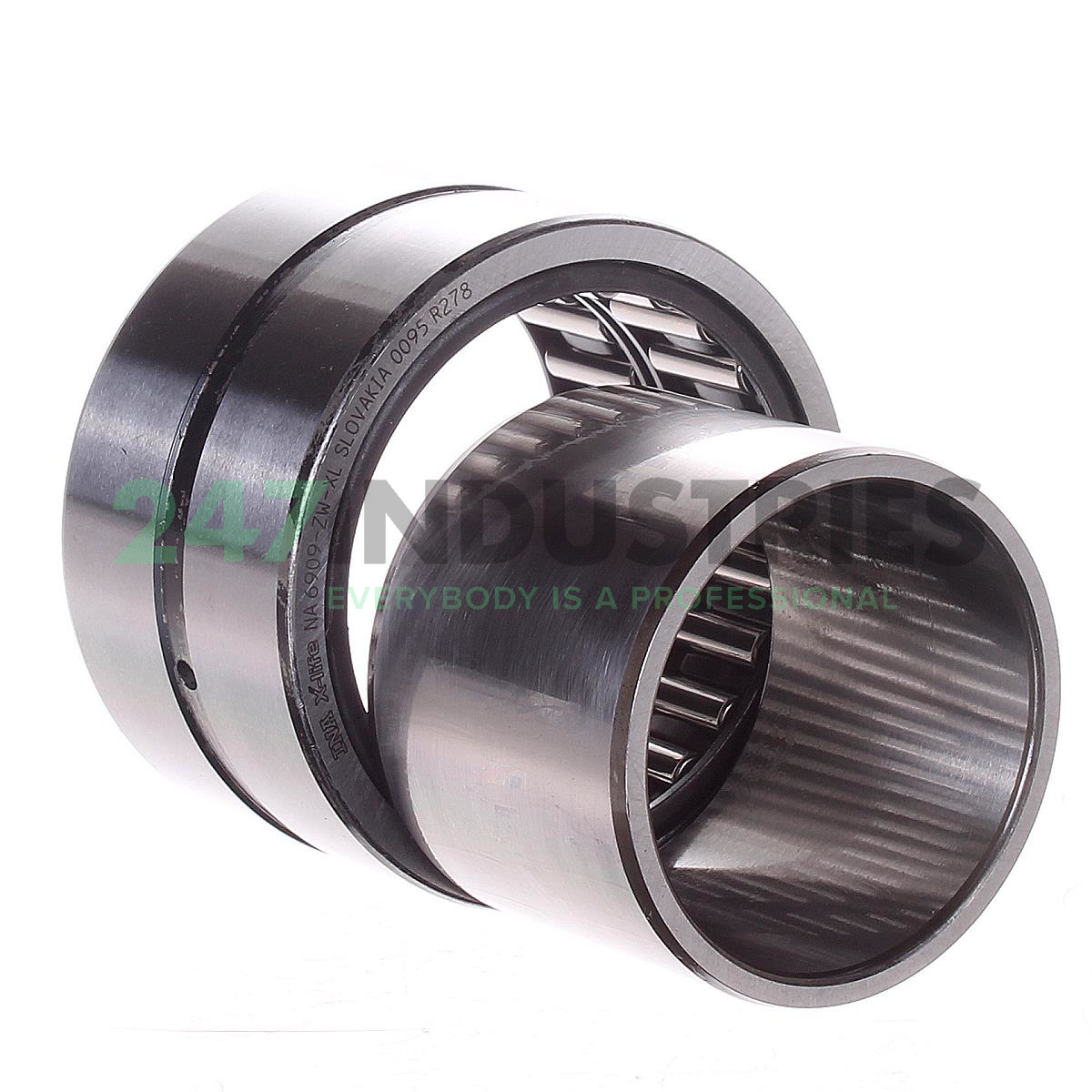

NA6909-ZW-XL INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 68
3. Width (B) MM 40
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.6772
6. Width (B) Inch 1.5748
7. Width (b) mm 40

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. XL X-Life

Technical details

1. Availability 10 pcs on Mon 29 Jun
2. Brand INA
3. Item number NA6909-ZW-XL INA
4. Also known as 0507442160000
   NA6909-ZW

5. EAN 4012802313116
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.495

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 127000
2. Radial Dynamic Load Rating Cr (N) 79000
3. Limiting speed (n G) 8600
4. Reference speed (n ϑr) 4750
5. ECLASS number 23-05-09-07
6. ECLASS2 number 23-05-09-07
7. Medias description Needle roller bearings NA69..-ZW, Dimension series 69, double row
