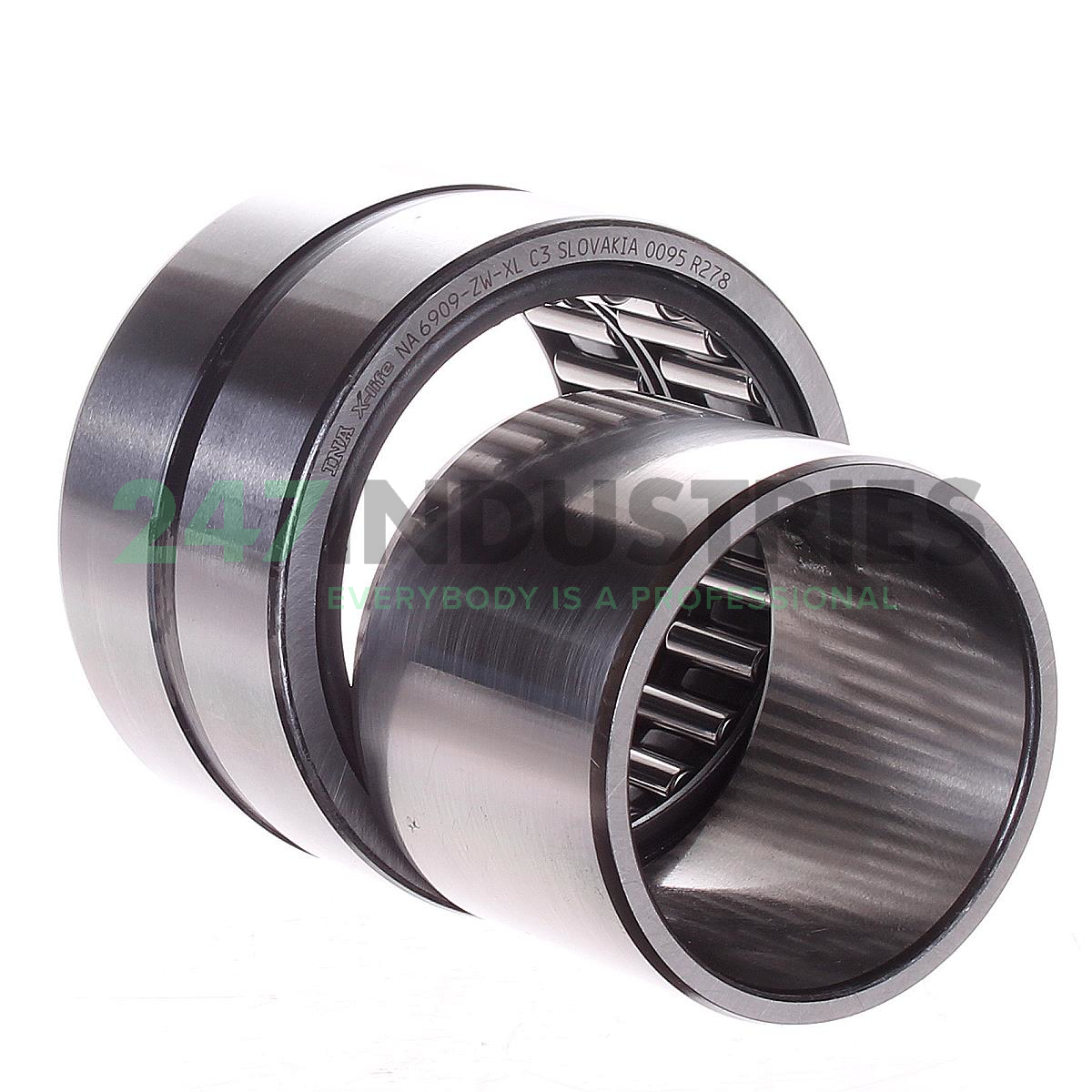

NA6909-ZW-XL-C3 INA

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 68
3. Width (B) MM 40
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.6772
6. Width (B) Inch 1.5748
7. Width (b) mm 40

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. XL X-Life
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 25 pcs
2. Brand INA
3. Item number NA6909-ZW-XL-C3 INA
4. Also known as 0507442160030
   NA6909-ZW-C3

5. EAN 4012802733099
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.495

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 127000
2. Limiting speed (n G) 8600
3. Reference speed (n ϑr) 4750
4. ECLASS number 23-05-09-07
5. ECLASS2 number 23-05-09-07

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
