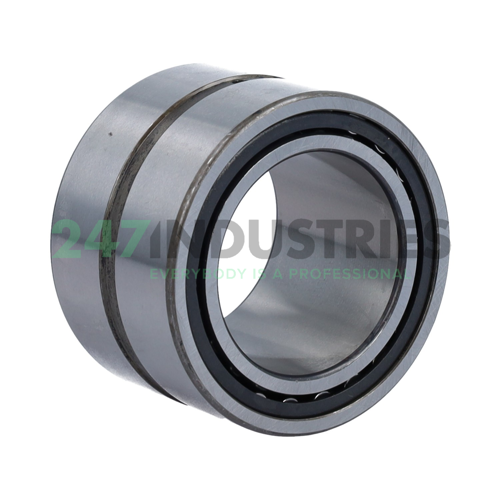

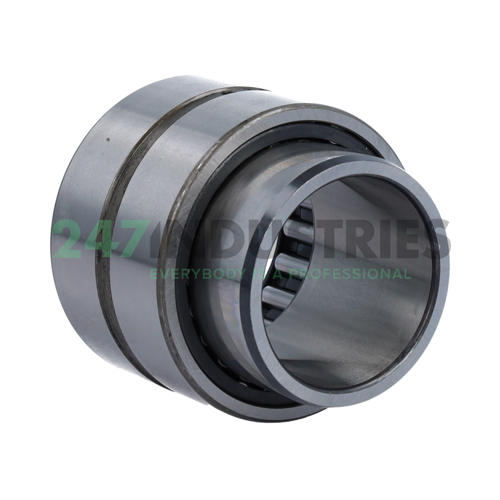

NA6908-ZW-XL INA

All dimensions

1. Inner (d) MM 40,00
2. Outer (D) MM 62,00
3. Width (B) MM 40,00
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.4409
6. Width (B) Inch 1.5748
7. Width (b) mm 40,00

Suffix description

1. ZW Double Row Needle Roller And Cage Assembly
2. XL X-Life

Technical details

1. Availability 40 pcs
2. Brand INA
3. Item number NA6908-ZW-XL INA
4. Also known as 0507442080000
   NA6908-ZW

5. EAN 4012802208603
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.43

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 116000
2. Radial Dynamic Load Rating Cr (N) 74000
3. Basic static load rating, radial (C 0r) "116000.0000"
4. Limiting speed (n G) "9200.0000"
5. Reference speed (n ϑr) "5100.0000"
6. ECLASS number 23-05-09-07
7. ECLASS2 number 23-05-09-07
8. Medias description Needle roller bearings NA69..-ZW, Dimension series 69, double row
